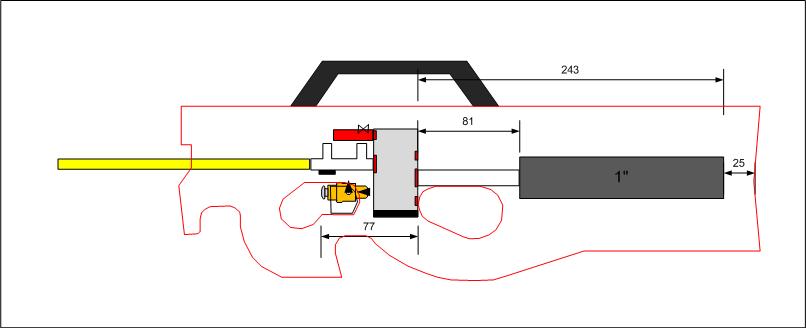

This may take some time to complete so I am going to take pictures of the progress. P90 style BB gun, maybe full auto or burst fire, depends how it works, or maybe not at all. :shock:
BB 2.jpg
BB 2.jpg (23.91 KiB) Viewed 985 times

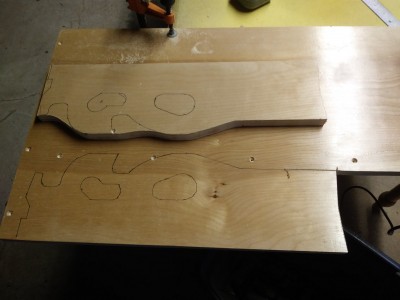

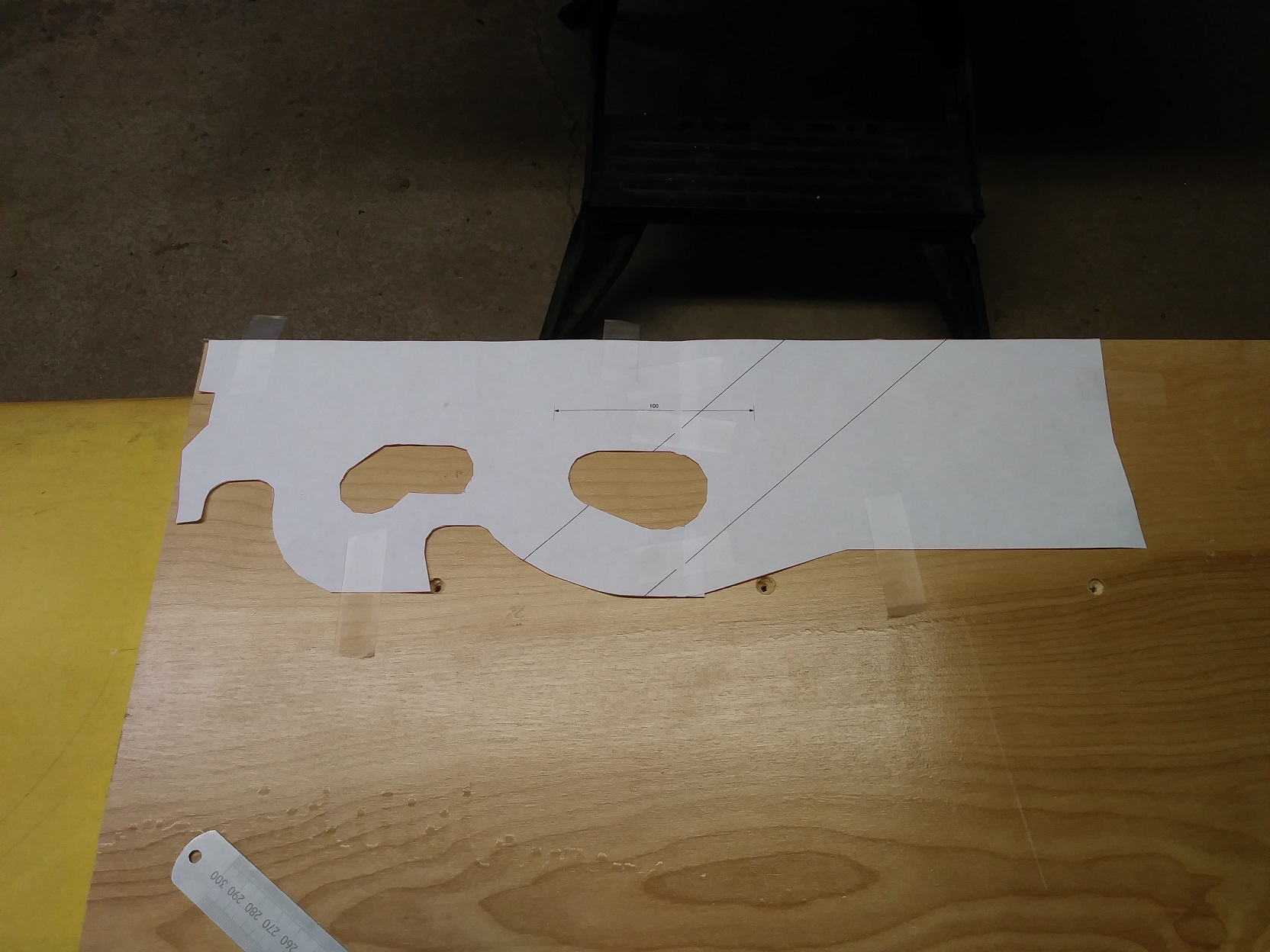

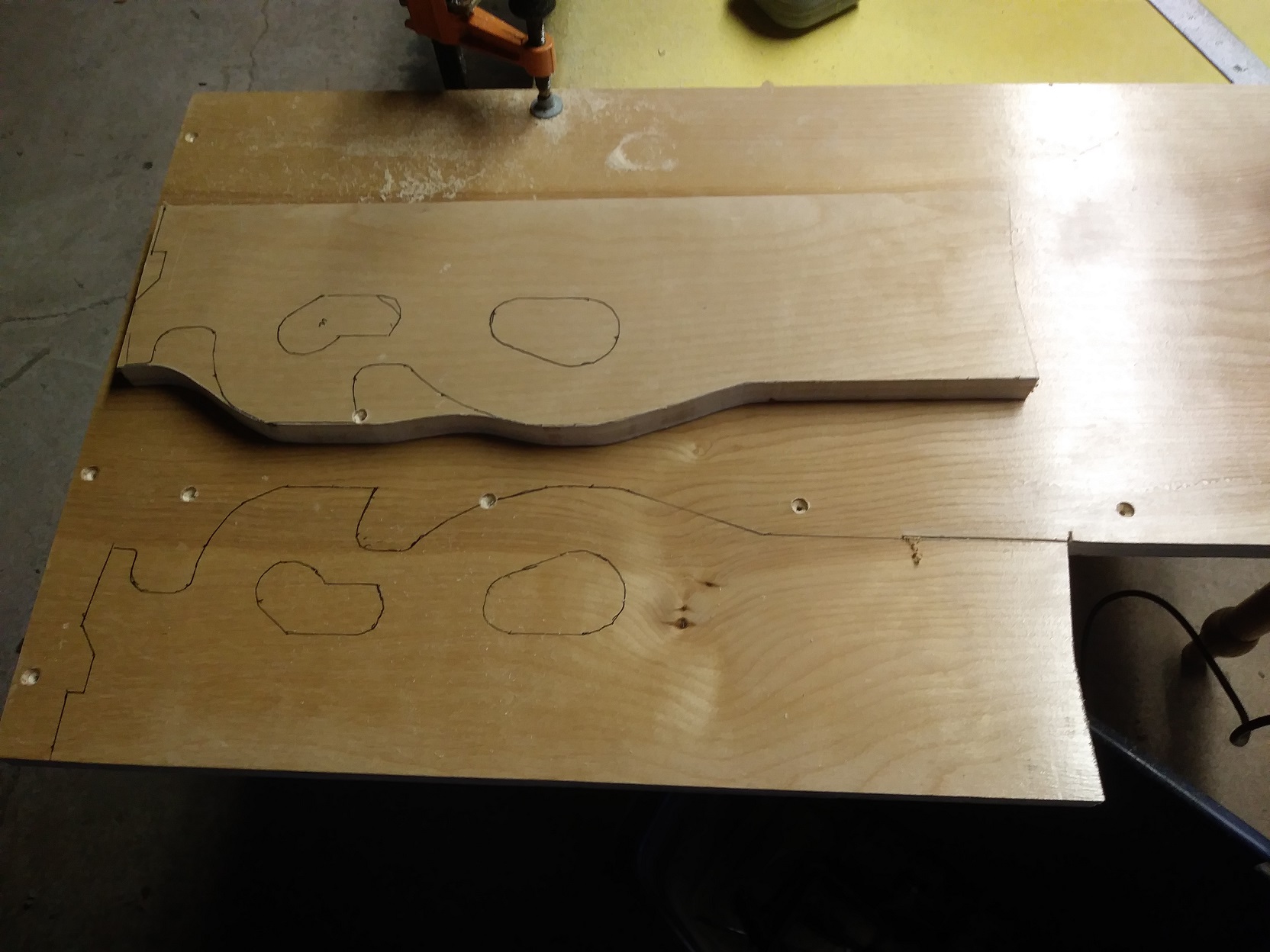

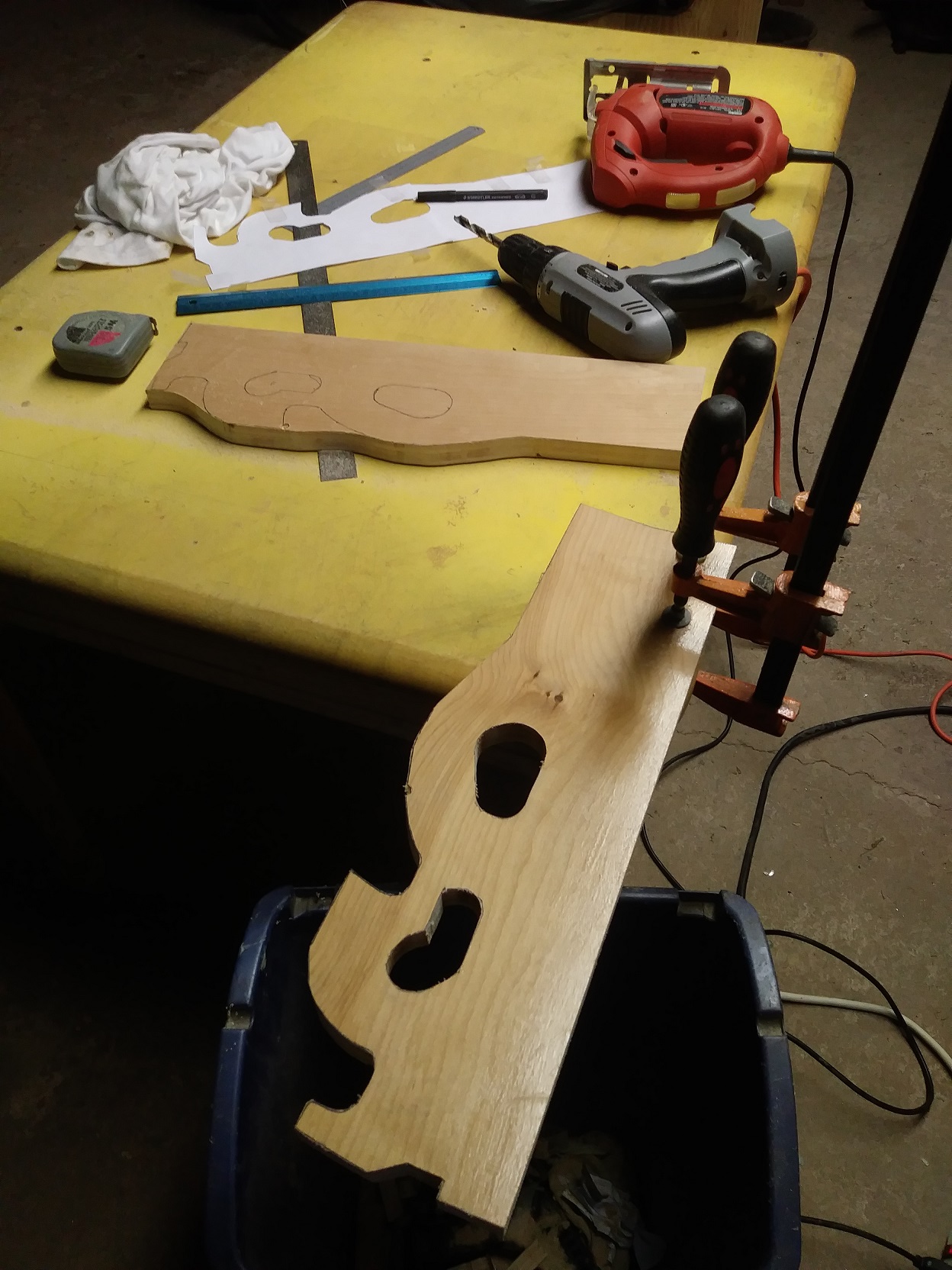

Cut out the rough body shape from 3/4" plywood. Will be in two halves screwed together.
001 (3).jpg
001 (1).jpg
001 (2).jpg
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Tue Nov 20, 2018 5:10 pm

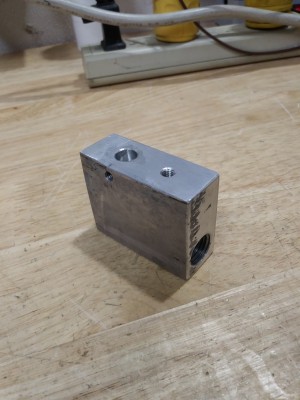

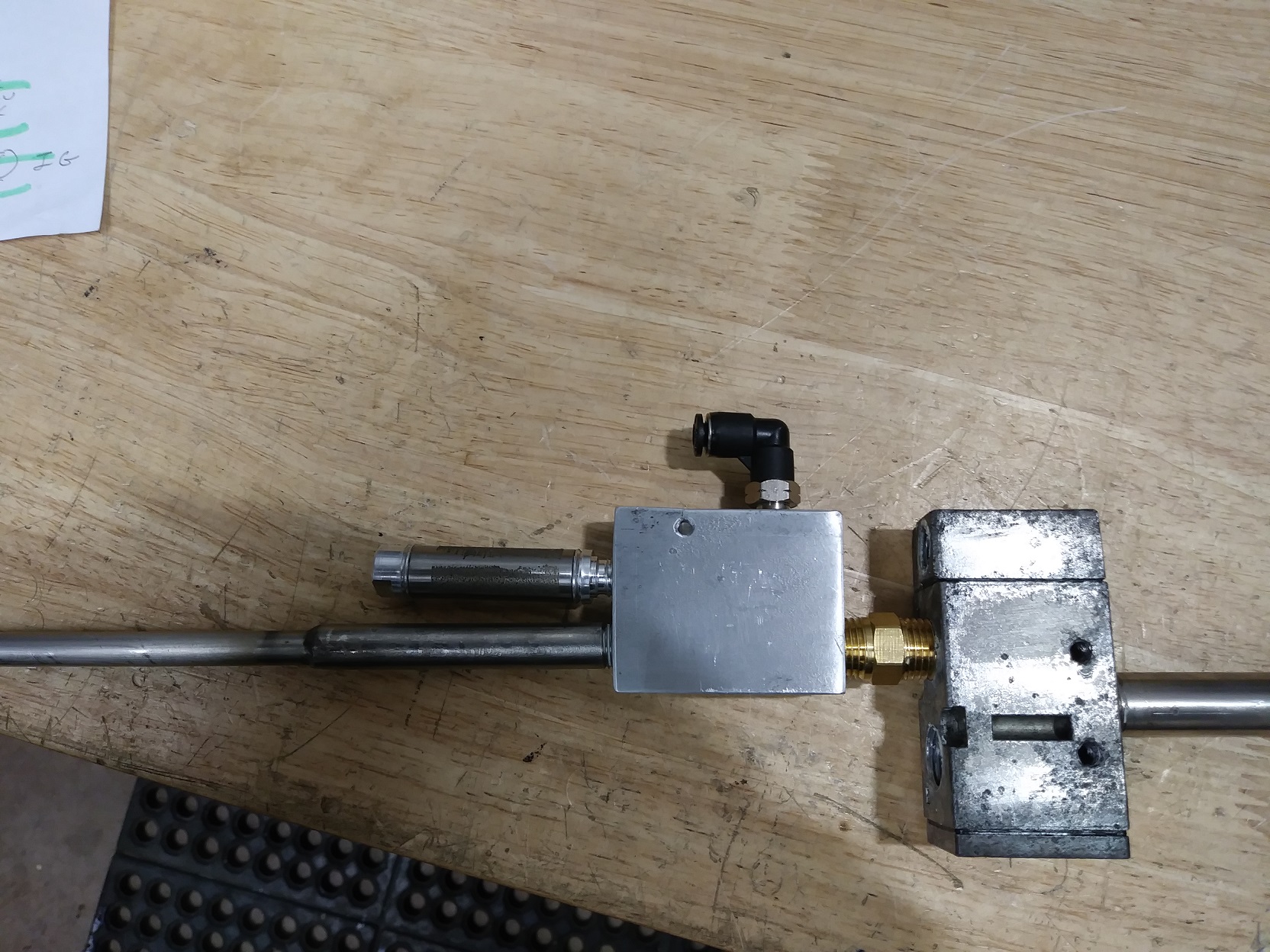

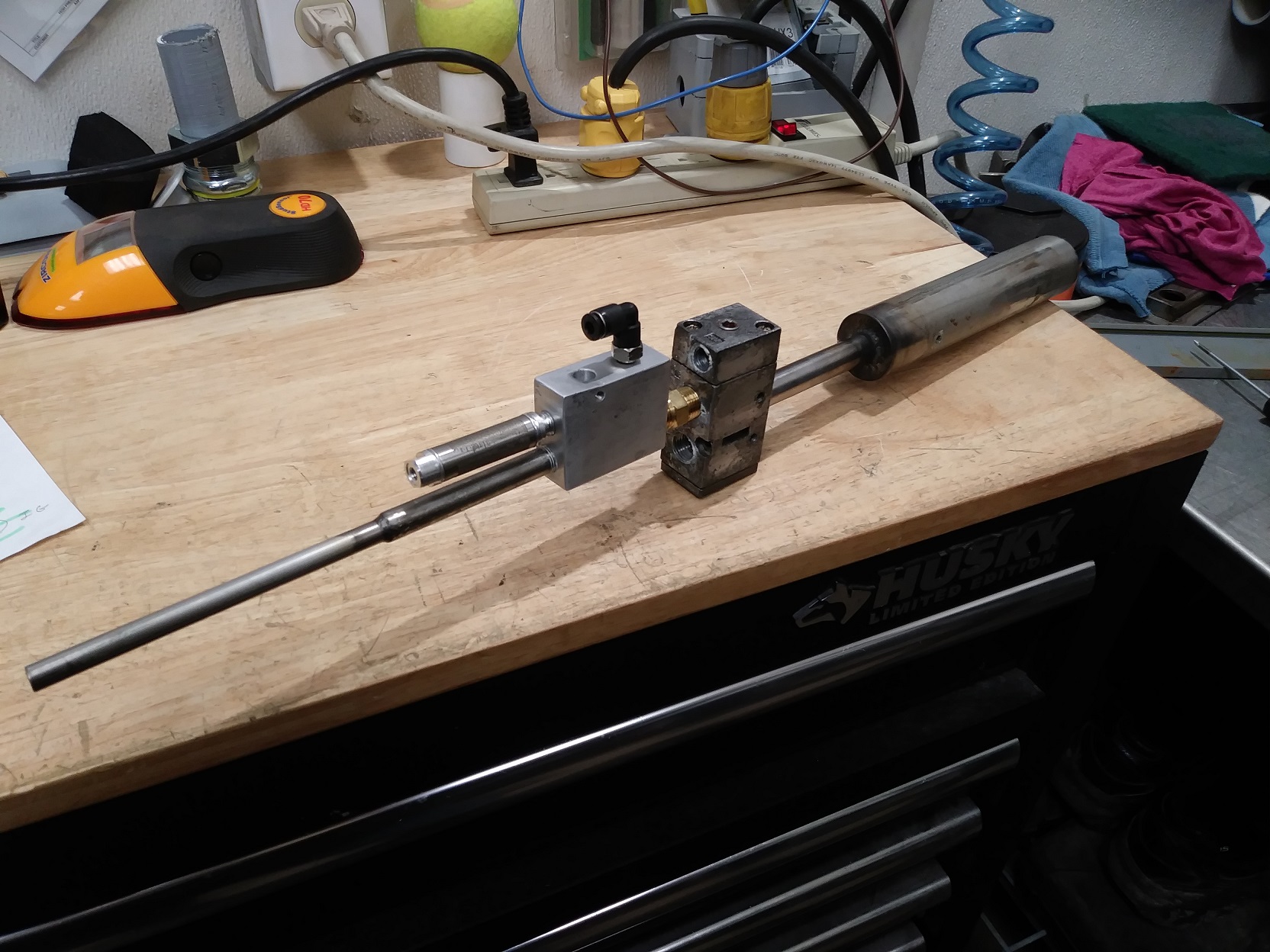

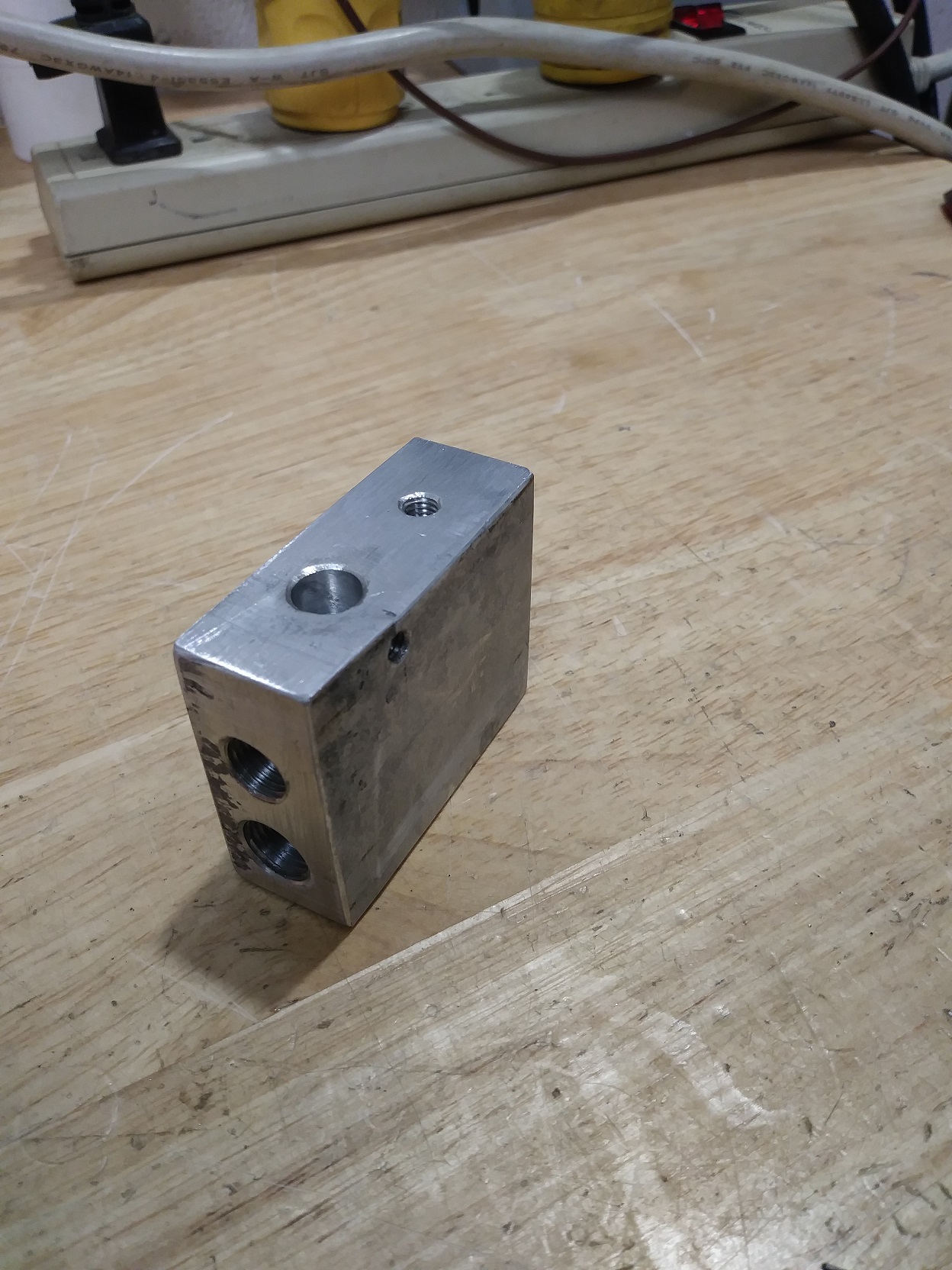

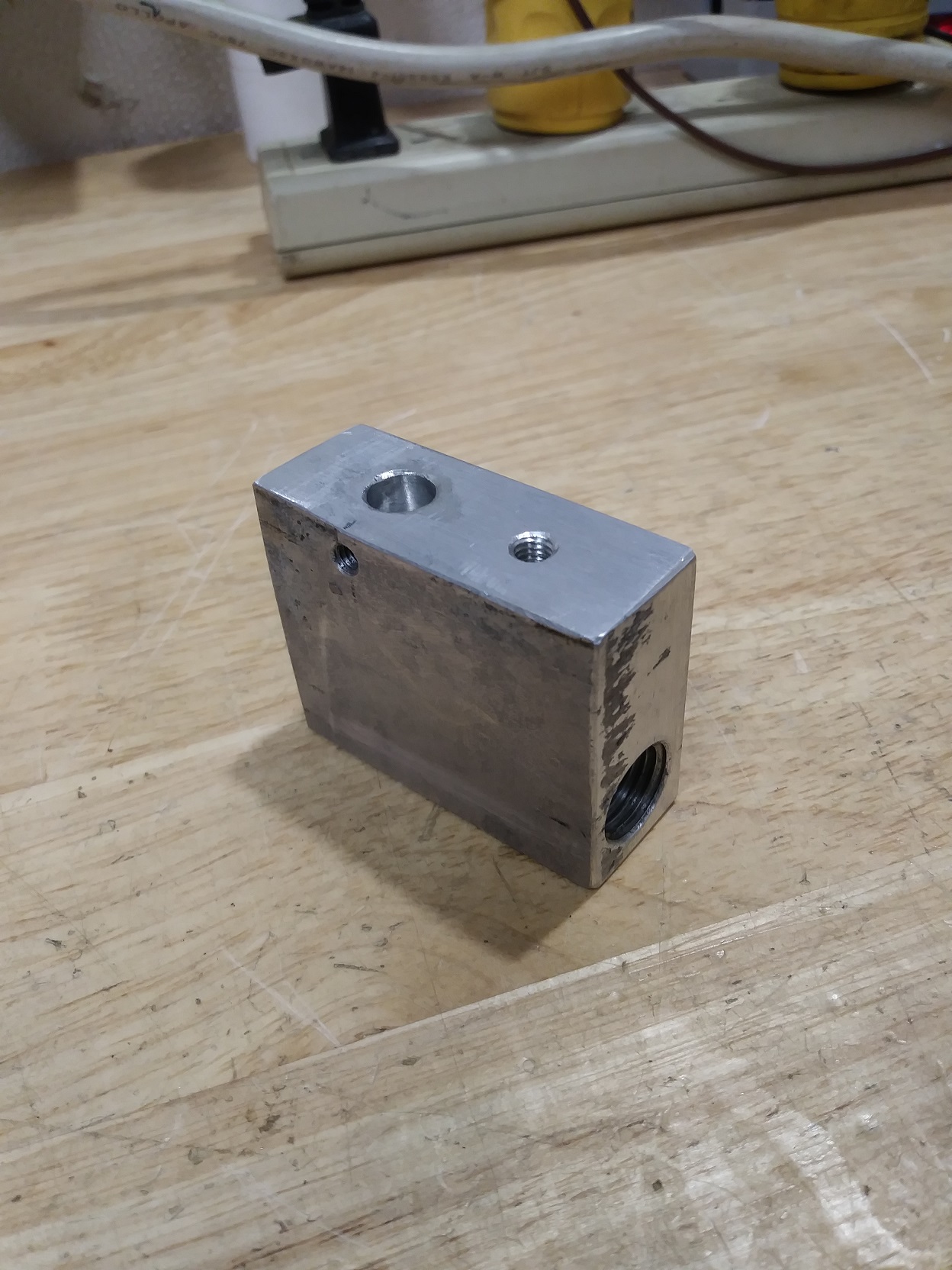

Been working on a block of aluminium I found, it houses a cylinder which will block the BB's when fired, it will be a 4 shot burst if it works :shock: 1" stainless steel chamber finished as well.
002 (1).jpg
002 (6).jpg
002 (2).jpg
002 (3).jpg
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Thu Nov 22, 2018 4:45 pm

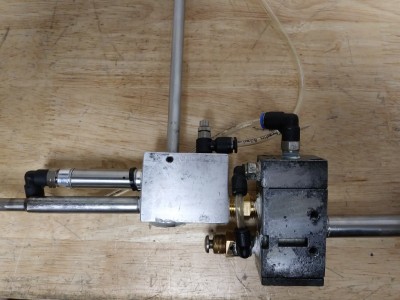

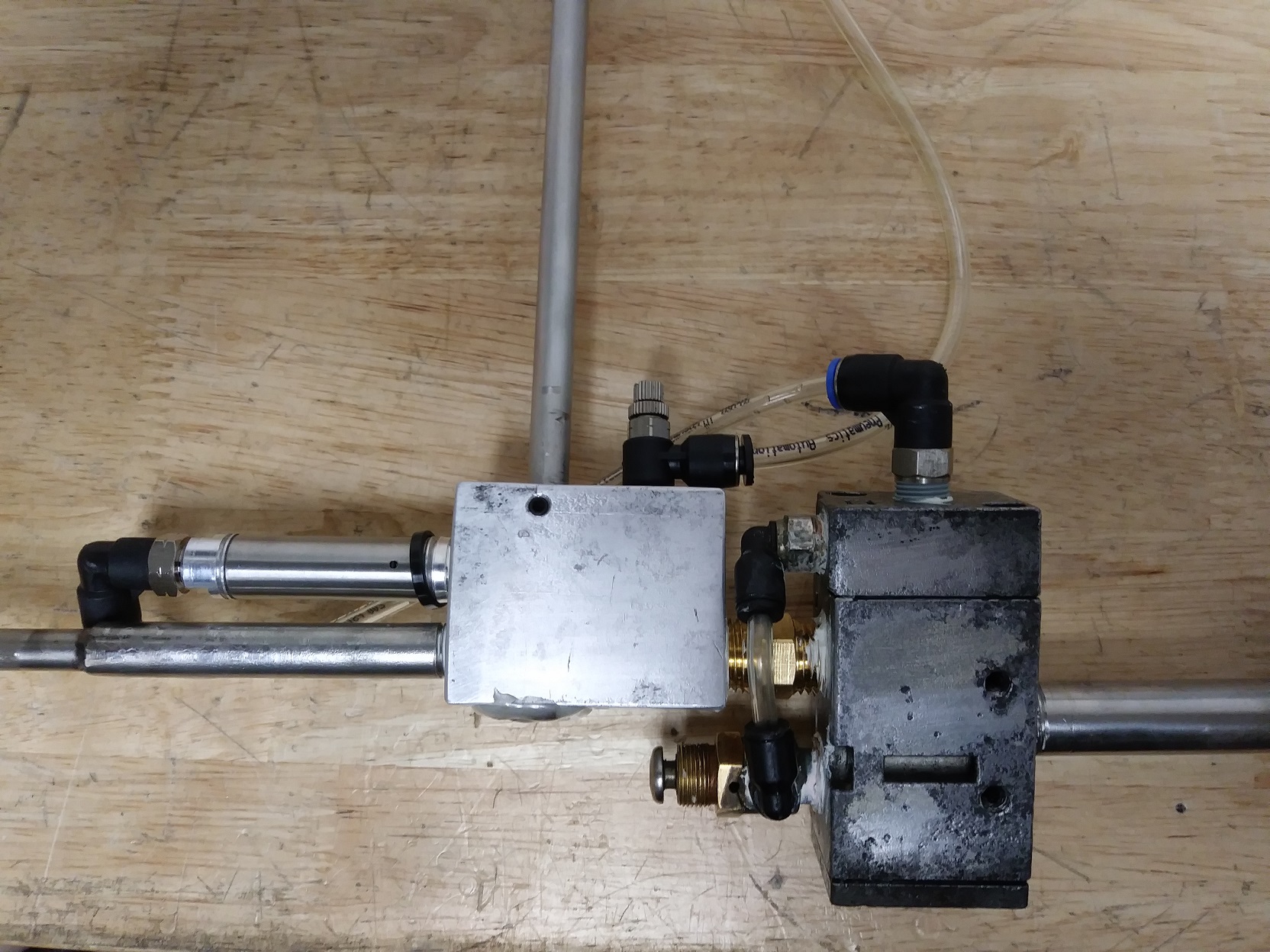

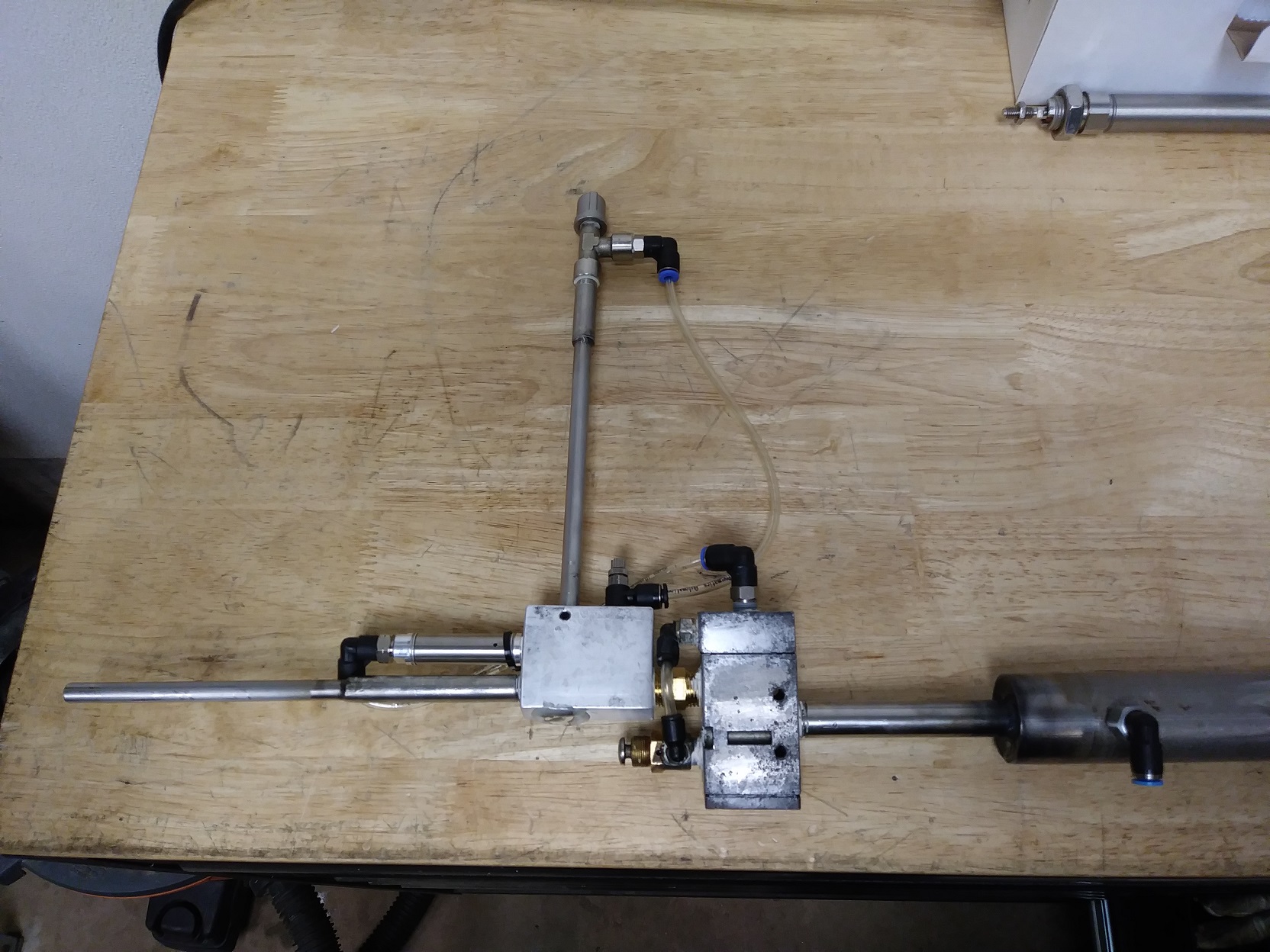

Had to change it a bit as I realized there wasn't enough pressure in the barrel to operate the blocking cylinder, had to move it to the pilot supply which stays at full pressure. Tried a gravity fed mag but that won't work unless it has some pressure on top to keep the BB's down when firing, finally got the burst fire to work :D
003 (1).jpg
003 (2).jpg

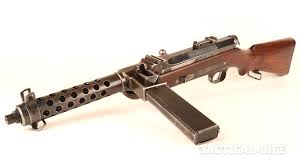

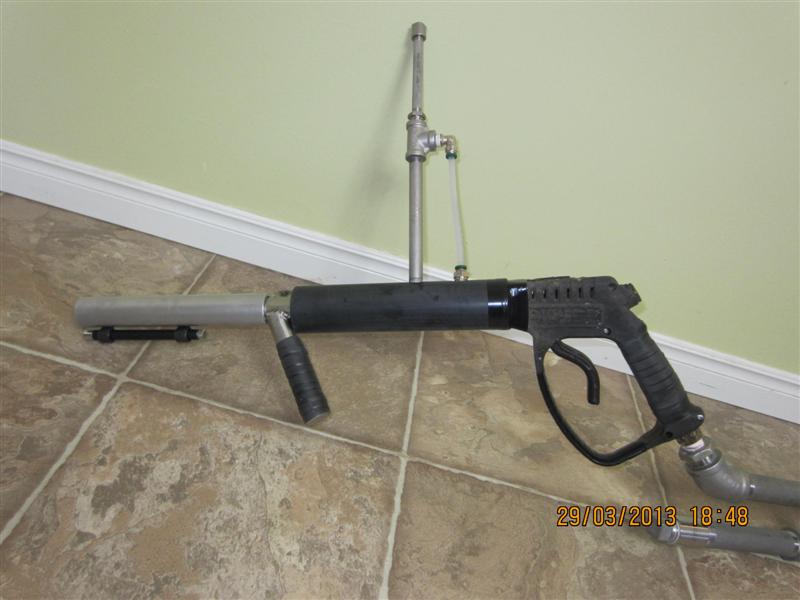

Looks like something I made a few years ago :shock:
Picture 011 (Medium).jpg
User avatar
hectmarr
Corporal 3
Corporal 3
Posts: 755
Joined: Sat May 07, 2016 3:49 pm
Location: Yaren
Has thanked: 1 time
Been thanked: 1 time

Fri Nov 23, 2018 3:25 pm

How many shots per second do you think you can achieve? It looks compact, and will be excellent with wood placed. I like it.
In my automatic weapons, I use pressure in the magazine where the ammunition is housed. A small pressure of less than 1 bar is enough to put the ammunition in the firing tube, even against gravity. It is necessary that the ammunition have a little adjustment in the charger tube.
Ideas don't make holes, guns do!
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Fri Nov 23, 2018 6:41 pm

If it feeds ok I will try the magazine horizontal :idea:
side mag.jpg
side mag.jpg (5.33 KiB) Viewed 770 times
ashokacao
Recruit
Recruit
Posts: 2
Joined: Wed Apr 03, 2019 12:05 am

Mon Jun 10, 2019 10:11 pm

can i see it in youtube?
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Tue Jun 11, 2019 5:21 pm

Have to make the body yet :cry: will finish the pistol first 8)
