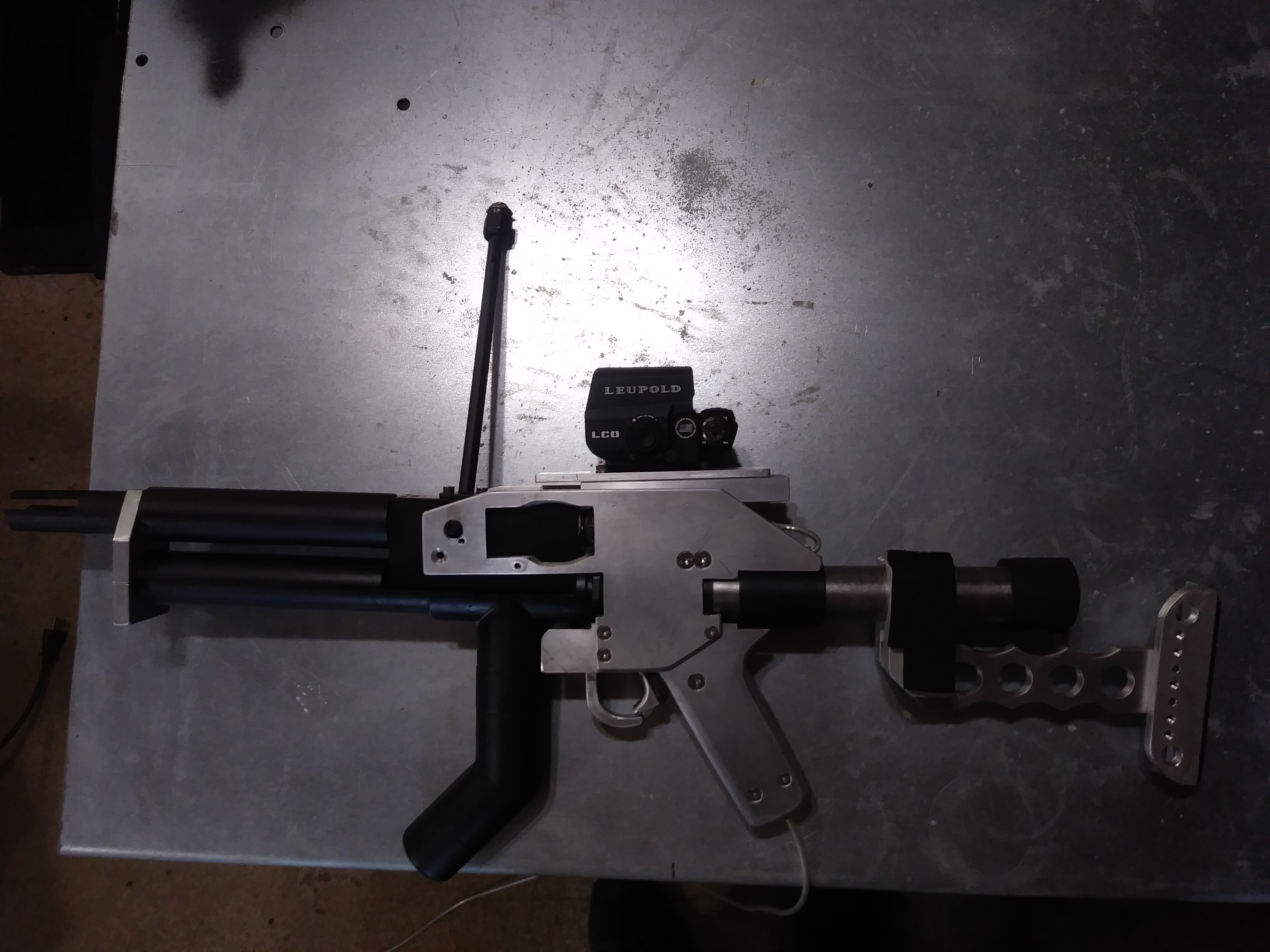

Got the semi auto together enough to test fire, it seems to work, no magazine tube yet. The chamber and 1/2" valve are from my old 10mm ball bearing launcher so the air supply is probably over kill. The piston is from an old pneumatic cylinder that is cut down. The red block is aluminium.

The principle
Part way through drilling the block

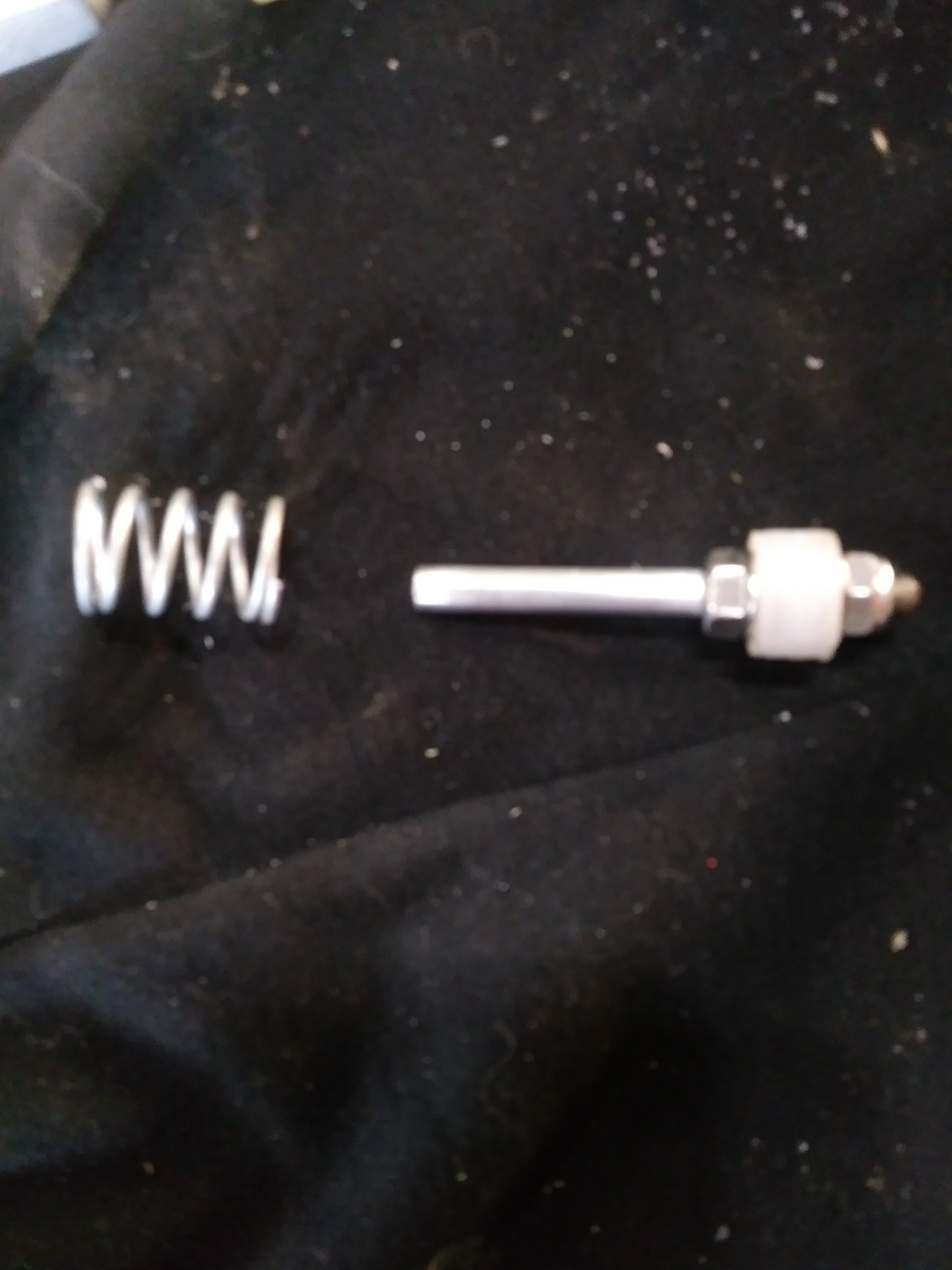

piston (2).jpg
03 (1).jpg
Bolt on the side is a stopper with rubber tip to stop BBs rolling out
03 (2).jpg
KannonKing
Private
Private
United States of America
Posts: 17
Joined: Fri Apr 24, 2020 10:12 am
Has thanked: 7 times
Been thanked: 11 times

Tue Aug 04, 2020 11:26 am

that's a beauty! Can't wait to see it in action!
