What is this electrovalve / solenoid valve.

[victorjung]

Hi, everybody, here some pics of a solenoid valve from an expresso machine.
I don't know how it works, how to plug it and how to use it, i also don't know ig it's a flow regulator or an "all or nothing" valve. That's why i post pics, i hope some of you will know what is it.
SO ANY INFORMATIONS ABOUT THIS ARE WELCOME!
like why three connectors? why the brass on the bottom? etc ...







thanks a lot!

[mobile chernobyl]

Ahhhh... What you have there is the Canuter Valve.

That is a very important valve there, and does lots for the flow control of the fluid in it's orifice.

It most likely causes a binary response to the mass flow of the liquid in it's path.

The three connectors look to be directly converting the flow of electrons to the flow of expresso in a relatively direct relationship.

I would most likely put it back on your expresso machine if you want to continue getting expresso out of it.

[jackssmirkingrevenge]

http://www.burkert.com/COM/57.html

look it up

[victorjung]

thanks for the answer, no problem for the machine it s broken for a long time ago, i just found this so i wanted to know if i can do something with it. thx also for the link i contacted them to have some info.

[dewey-1]

The valve is for water dispensing.
Read both pdf files in link.
Here is the valve type:

http://www.burkert.com/COM/Products/Sol ... /6012.html

The 3 terminals are for a DIN connector. The parallel terminals are power and the middle terminal is earth (safety) ground.

Just use the outer terminals with "Fastons" like your violet wires have.

[victorjung]

Thanks a lot, any idea about how to used it without the big steel brass part?
Cause in my machine i just had what i showed before and it suppose to work like that but i don't understand how it can open or close... is there anyone who already saw something like that?

[POLAND_SPUD]

here that brass part was erplaced with plastic... apparently the valve isn't supposed to handles more than just a few atms so it wasn't needed

[Technician1002]

Many water valves in appliances are plastic body. This is normal for domestic water pressure much like PVC pipe. It is corrosion resistant and lead, copper, cadnium, etc free.

[dewey-1]

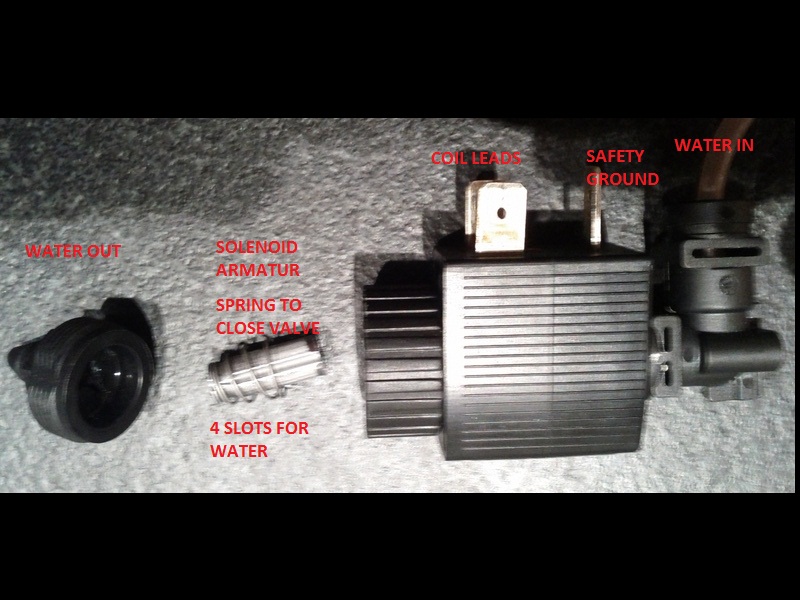

Based on your pictures and the cutaway diagram on link that I posted,
here is what I think how it functions.

[victorjung]

Thanks a lot, i thought it was working something like that, but it's only proof if th small metal bar is totally compressed on the bottom of the big piece, and i dont see how it could be, cause i tried to plug in on the 230V 50Hz from home, and it just vibrated a lot but wasn't proof, and with no plug, it's also unproof...

[dewey-1]

It appears to be a 207 Volts DC valve, if you look at the label.
A better focused picture of the label would help.

[victorjung]

OHH yes, it's DC.... i think it's kinda hard to have 207 V in DC, i think, i will abort the idea to reuse it for something...
