" Old Shatterhand" 5 shot mag now cycling on vid.

Cannons powered by pneumatic pressure (compressed gas) using a valve or other release.
Post Reply
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

Good luck.
We both know the search for the ultimate full auto system can drain you...


And once I got it to work, I didn;t even enjoy it.

It's that Tnak that does it you know..
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

Got new pics...
Attachments
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
psycix
Sergeant Major 4
Sergeant Major 4
Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands

Nice. Though I think the handle doesnt fit the style.
Till the day I'm dieing, I'll keep them spuddies flying, 'cause I can!

Spudfiles steam group, join!
Top
User avatar
Lentamentalisk
Sergeant 3
Sergeant 3
Posts: 1202
Joined: Tue Aug 07, 2007 5:27 pm
Location: Berkeley C.A.

Don't be ridiculous! That is an amazing handle!
Very nice looking there, I must say. How many shots are you intending to get out of a single charge?
Do not look back, and grieve over the past, for it is gone;
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

You can all see the tiny chamber..I get around 6 GOOD shots out of it.
I'm threading a chamber twice the length.(edit: full length chamber is now in place)
I intend to get around 10 shots minimum.

There is no real style.I'm gathering parts that will all " work" nicely together,
The theme will be a little different...

I plan on using a lot of brass for looks, hardwood for the stock and all steelparts will become flat black.Something that seems to be from the 1800's.

A tribute to the past... :roll: :wink:
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

Double post, just so I can add some relevant pictures... :D

Remember...this is far from finished.
Attachments

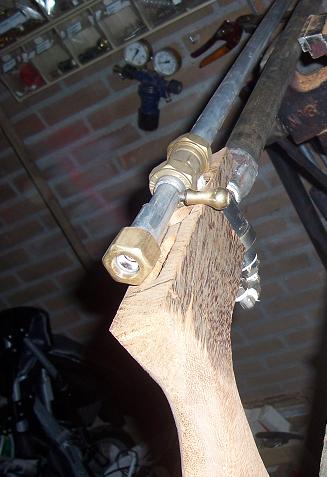

tboltstock 005.JPG
tboltstock 002.JPG
tboltstock 006.JPG
tboltstock 007.JPG
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
cheeseboy
Private 4
Private 4
Posts: 84
Joined: Tue Nov 25, 2008 3:06 am

firstly I would like to say, excellent gun! secondly what struck me when I saw the picture you posted is that it looks like -with the heavy weight of the gun - the stock would snap very easily IMHO. also I would like to comment on how quickly you managed to make that stock, when I made mine it took a couple of weeks and doesn't look much better than yours!
Top
User avatar
sputnick
Specialist 4
Specialist 4
Posts: 498
Joined: Sun Dec 14, 2008 3:53 pm
Location: Ontario Canada

HOW DID I MISS THIS GUN!

There should be a subscribe feature in spudfiles, because every time you post a gun I am always completely blown away,

Fantastic gun BTB, But don't you usually have a hammer valve on the QEV?
I can't seem to see it,



I look forward to seeing the finished product (as always :D )


Add me on MSN to chat about whatever!
Top
User avatar
Carlman
Staff Sergeant 2
Staff Sergeant 2
Posts: 1618
Joined: Sat Nov 24, 2007 1:18 am
Location: Western Australia
Been thanked: 2 times

sweet mate! loving the stock and bolt! So i assume you will add a rifled barrel and scope in the near future?
Aussie spudders unite!!
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

Scope and rifled barrel will be the last things I will add.

I need to finish the stock.It will have the wood extended to the front, a grip if you will.
It will have brass sideplates to connect and firmly attach all the wood pieces and after that ( @ cheeseboy) it will be strong enough.
So yes..at the moment it would snap.I just took the picture as soon as I had something of an assembly to show.It's not near finished as I mentioned earlier :D

Then I will work on the exterior hammer ( :D that's why you can't find it now) and the interior lock for it.It will be placed on the right side like a flintlock hammer.This is purely because of the theme.I could make a hammer anywhere, but it's 1800's I'm going for.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 581 times
Been thanked: 347 times

N-i-i-i-i-ce, looks like it's going to turn into a bolt-action Girandoni of sorts :) Have you tried it for muzzle energy before concentrating on the aesthetics?
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

Since I don;t have a chrony, I had to judge it by the impact..wich was more than okay.

With springtension I will be able to adjust the force of the hammer impact, wich will influence the valve opnening time.
I'll find a midway between power and numer of shots.I think around ten should be enough.I might get a lot more, but I don;t want to sacrifice power that much..

Indeed I have been inspired by the Girandoni rifle.It is what got me into this hobby.You know this right?
After all these years I decided to make one that would appeal to me in a similar fashion.
However it's no attempt to copy it.Not in the least.
The biggest difference externally will be the bolt action, internally I use a completely different valvesystem and the reservoir placement is opposite to that of the Girandoni.Both are old style hammered repeaters.

Hopefuly I'll have time to post some new pics tonight.I'll plane the stock into it's final crude shape.
I might even try some artistic ( but obviously cheesy) woodcarving on the butt.
I've found the perfect brass sideplates...!!
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

wow it looks great...

one question.... is that cheek rest (is it the right word?? oh whatever I mean the thing where your cheek rest when you aim) high enough ??
Children are the future

unless we stop them now
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

Haha, so it's down to knitpicking now?

No it's perfect.For me anyways, as I'm a cheeky kind of fellow.. :D

So, more pictures of the progress.
I've decided to name the gun Brass T-Bolt
Yes...BTB...why not?
Attachments

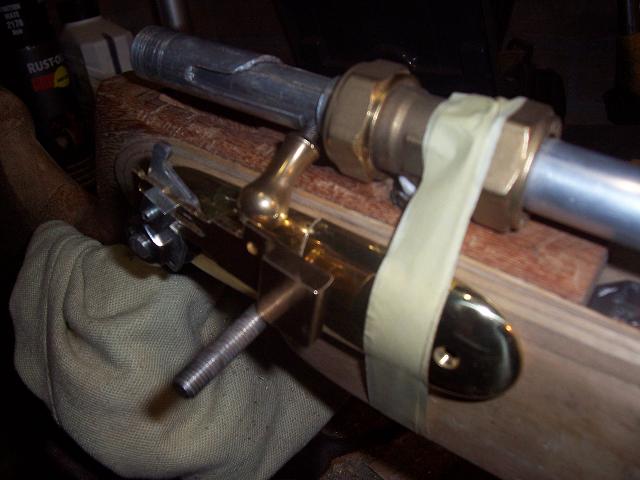

After adding the sideplates..
After adding the sideplates..
Sideplate will be blended into the front grip and have some pieces cut away.
Sideplate will be blended into the front grip and have some pieces cut away.
The brass piece will be cut in half and used as a cover on both sides.
The brass piece will be cut in half and used as a cover on both sides.
The T will be chopped so the barrel can drop onto the wood and only a brass ring will be visible.That means glueing the barrel in the left over piece.
The T will be chopped so the barrel can drop onto the wood and only a brass ring will be visible.That means glueing the barrel in the left over piece.
What will do what?<br />Not all parts are done.The square axle will hold the hammer.The sear on it will be blocked by the trigger on the inside.Hence the square shape.I still need to build a hammerpad, an anvill, a hammer...etc etc etc..<br />Not done yet....
What will do what?
Not all parts are done.The square axle will hold the hammer.The sear on it will be blocked by the trigger on the inside.Hence the square shape.I still need to build a hammerpad, an anvill, a hammer...etc etc etc..
Not done yet....

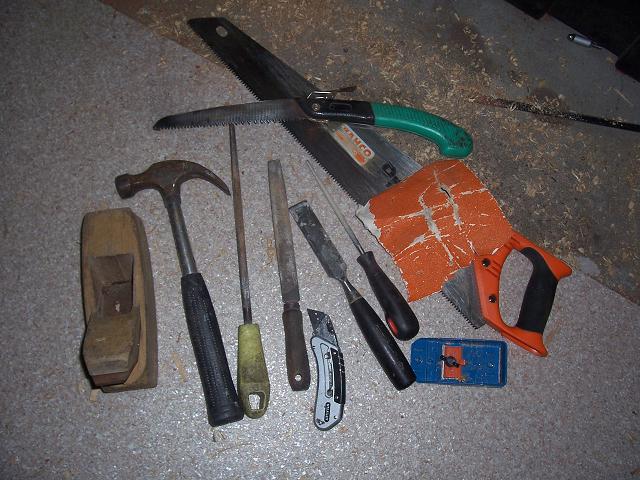

Some of the tools used.Also used a powerdrill, some smaller chissels,,and whatever I could find to do the job..
Some of the tools used.Also used a powerdrill, some smaller chissels,,and whatever I could find to do the job..
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

I can't believe you guys made me double post for this...
What?
Not a single reply after the latest pics?

I must be loosing it.. :?

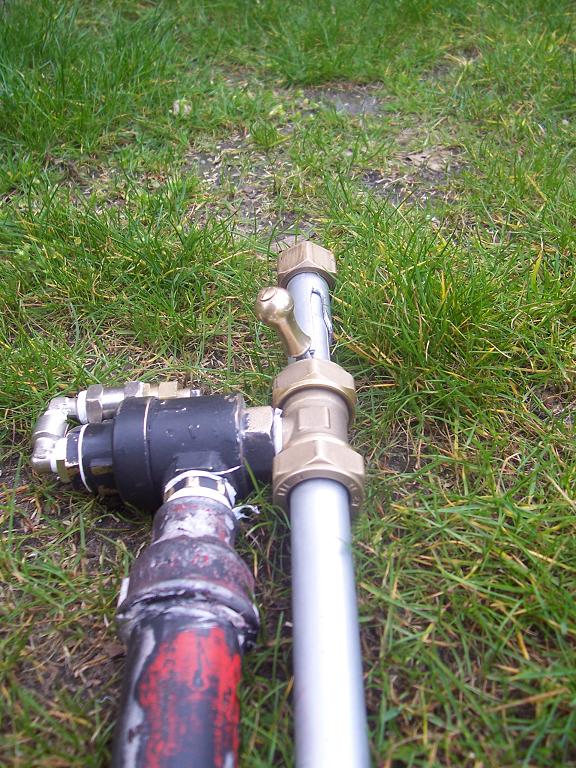

Well, hope this works:
Attachments
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
