HP pump connections

Cannons powered by pneumatic pressure (compressed gas) using a valve or other release.
Post Reply
User avatar
c11man
Corporal 3
Corporal 3
Posts: 783
Joined: Fri Feb 06, 2009 4:37 pm
Location: Wisconsin, USA

i use 1/4inch hydraulic quick connects and i can disconnect them underpressure up to about 700psi with much dificulty
Top
User avatar
Mr.Sandman
Corporal 3
Corporal 3
Posts: 762
Joined: Fri Mar 28, 2008 9:10 am
Contact:
Contact Mr.Sandman

I do believe you mean without hehe. And what about your bleeder valve? What do you use for that?
Yeah, it's that important.
Top
User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Been thanked: 3 times

Demon wrote:Won't the air from the airtank vent out when i use the "air relief" ? Will i need to install a no-return valve ?
Or a ball valve.
Top
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

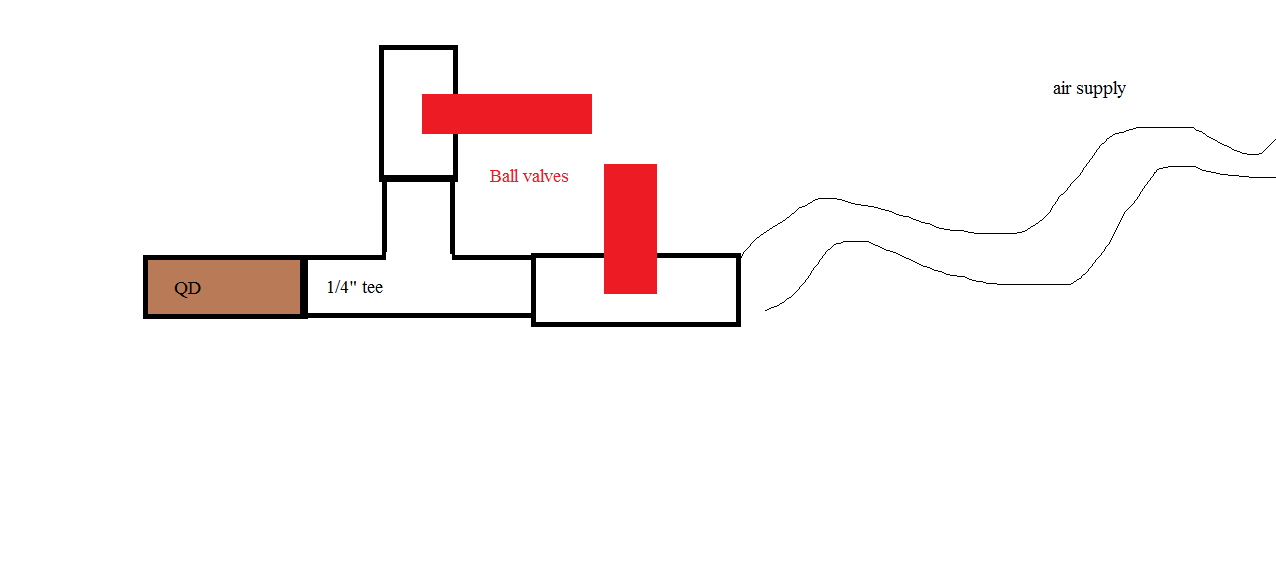

Demon try something like this:
Attachments
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
Top
User avatar
Crna Legija
First Sergeant 2
First Sergeant 2
Posts: 2333
Joined: Sun Jul 20, 2008 5:14 am
Location: australia

the compressor hose is have is rated for 120psi but i tested it to 300 and it poped
'' To alcohol... The cause of, and solution to, all of life's problems.”
--Homer Simpson

Add me on ps3: wannafuk, 8/11/11 cant wait
Top
User avatar
Mr.Sandman
Corporal 3
Corporal 3
Posts: 762
Joined: Fri Mar 28, 2008 9:10 am
Contact:
Contact Mr.Sandman

-_- wrote:the compressor hose is have is rated for 120psi but i tested it to 300 and it poped
Umm, So you are saying that you tested the 120 psi rated hose to 300 psi and it burst? I always thought that air fittings were rated 1/3 of the burst pressure of the material.
Yeah, it's that important.
Top
User avatar
Demon
Corporal 3
Corporal 3
Posts: 743
Joined: Sun Apr 13, 2008 8:46 am

Maybe he mean the hose popped out of the fitting

Thanks a lot for your help, especially for the venting part.
Top
