Building a airsoft sniper rifle

[Goats spudz]

I know you don't have the barrel yet, I should have said to make it like the Airforce condor like Gippeto suggested.

[Gippeto]

Has a similar look to these....which I LIKE. 8) The second in particular.

[wyz2285]

I hate to ask too, but you didn't pick her up fairly cheap in China did you?

The valves? I did bought them in China, but they are very good quality, not sh*ts you buy from ebay.
@Labtec: post some pictures of the tube, so maybe we can get to a deal

[Zeus]

Nah Wyz, I was referring to your girlfriend.

[pneumaticcannons]

^ lol
Very nice wyz, me likes so far. I'm also interested in one of those tubes Lab...

[Labtecpower]

Can't take a good pic right now.

I have 2 different tubes, 316L ss, and high-pressure hydraulics tube
(EN 10305-4 E235 10.0x2.0)

The 316L tube has an ID of 6.2 mm, and the piece I have isn't dead straight.

The other tube has a far better fit for a precision bb, and is entirely straight. Length is about 60 cm, I can probably get larger pieces in september.


@pneumaticcannons; Where do you live? shipping outside the EU will get quite expensive I think..

[wyz2285]

Nah Wyz, I was referring to your girlfriend.

Then no, we were together before I went to China "shopping"
@Labtec: if you can get 1m of the 60cm tube you have, we could get to a deal for a package of 5 tubes

[pneumaticcannons]

Thailand, but I would never ship it here. It would go to where I stay in the US. The shipping would get expensive but I think it would be worth it.
Edit: Ill stop hi-jacking your thread now wyz

[jackssmirkingrevenge]

Hope I can finish this gun this month, but I have a girlfriend to take care now

boooooo!

I note I have already been used as an example of the negative influence of a "better" half

So, I decided to build a airsoft sniper rifle, my objective it´s to see how accurate a airsoft bb can be.

The limiting factor is the BB. The low density invariably means that the projectile will slow down very rapidly, leading to a rainbow-like trajectory, and will also be very susceptible to environmental factors.

Here's the abovetranslated into science

[wyz2285]

I have steel bbs and if this gun really work out well, I may use a pellet gun barrel. But for now 0.40g bbs are accurate enough for up to 50m.

[wyz2285]

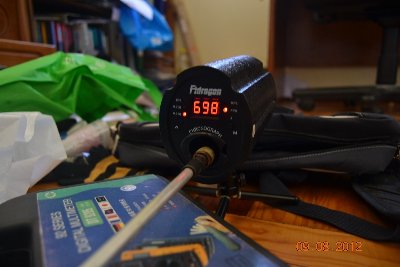

Test made at 8 bar, 0.25g bb.
[youtube][/youtube]

[Zorlord]

Has anyone ever employed the use of an airsoft hop-up? It seems like all of the bb/airsoft guns that everyone makes disregards this part.. It would seriously increase the range and accuracy on your gun, and make loading a hell of a lot easier..

[wyz2285]

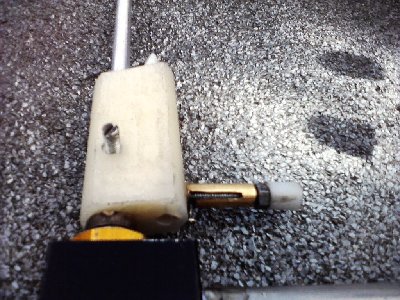

Finished the reload/magazing block, also added a homemade hop up, worked like wonder with only 5 bar I was able to have a effective range of 40m reliably.

[Labtecpower]

@Labtec: if you can get 1m of the 60cm tube you have, we could get to a deal for a package of 5 tubes

I won't be able to get that length for free.
When I return to work i'll see if I can get them, and what the price would be
in the meantime I hope I can get some precision measurements on the ID..

[wyz2285]

Don´t worry, get what you can the max length of airsoft barrel sold here are only 630mm and bloody expensive, around 40 euro for a aluminium one, most of the airsoft guns use only uses 560mm. So 60cm it´s ok for me.
