Short question topic

[wyz2285]

It means there is no way to "choose" the air flow, you can only open another way, so the air can go out in 2 ports, but one of them is always open

[POLAND_SPUD]

It means there is no way to "choose" the air flow, you can only open another way, so the air can go out in 2 ports, but one of them is always open

Unscrew the cap on top of it and check if there is a port there

[wyz2285]

check if there is a port there

Not exactlly a port... But it does leaks at there!!!

[POLAND_SPUD]

Not exactlly a port... But it does leaks at there!!!

yeah... if you blow air into one of the ports air goes through that port/opening... once the valve is energized air will flow from the port that was previously closed to the one that was connected with the top one earlier... so don't worry everything is ok


are there any standard threads on the outside or inside that can be used ??


I have a bunch of similar valves (unfortunatelly all in 230V) and they are NC too...
some have and internal 5mm thread and I can used them as universal valves but the rest doesn't
(well apart from standard metric outside threads that are used with a nut to keep the solenoid in place... I'd need a female metric to bsp coupling or make one myself to use them as NO valves)

[wyz2285]

yeah... if you blow air into one of the ports air goes through that port/opening... once the valve is energized air will flow from the port that was previously closed to the one that was connected with the top one earlier... so don't worry everything is ok

No I have opened te valve... It´s not a port. What a useless valve !!

[POLAND_SPUD]

well it isn't useless... you've simply got a valve that can't be used as a universal valve - that's all

it can still be useful for spudding don't worry

ohh and it's not unusual that there are two ports that are connected toghether - thx to that you can stack them toghether in a sort of manifold

[wyz2285]

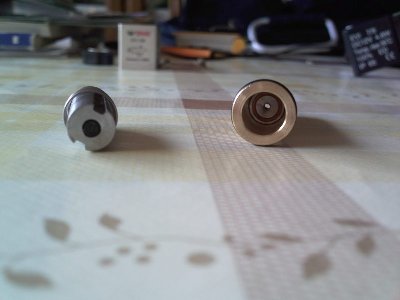

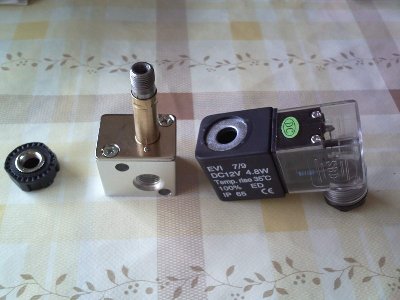

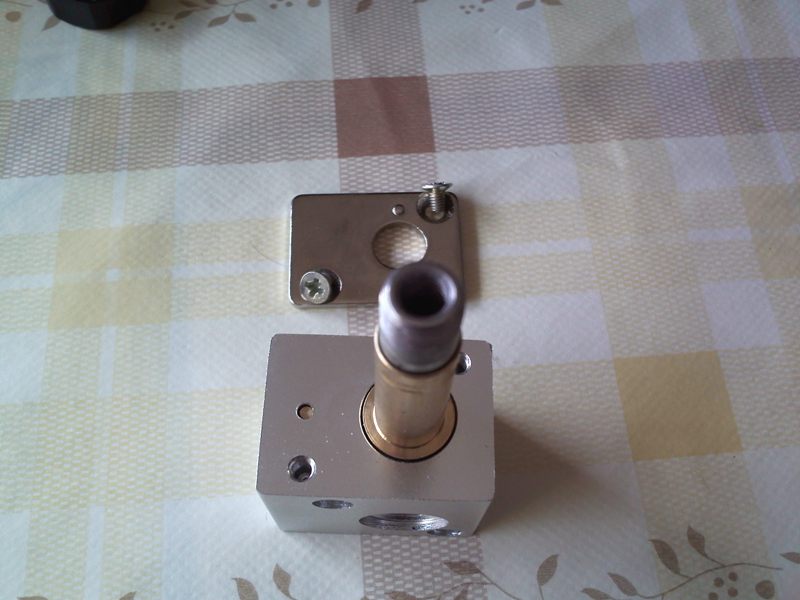

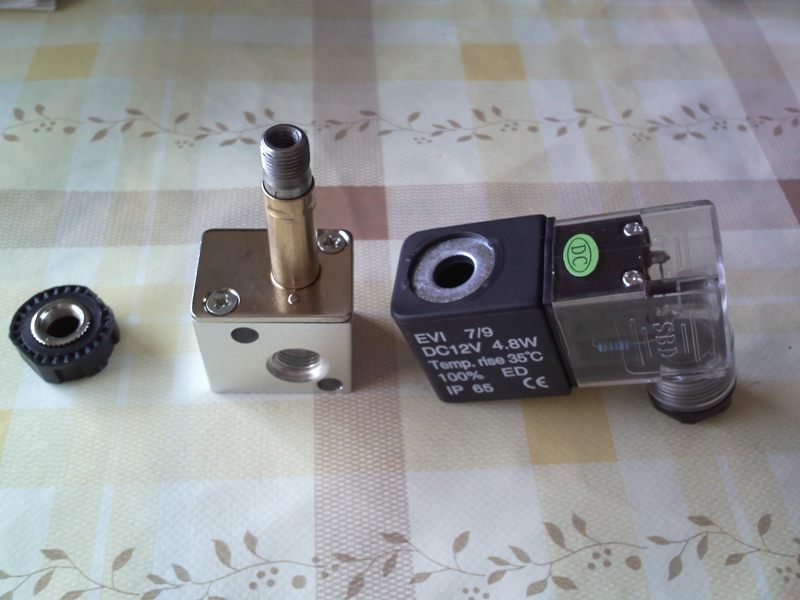

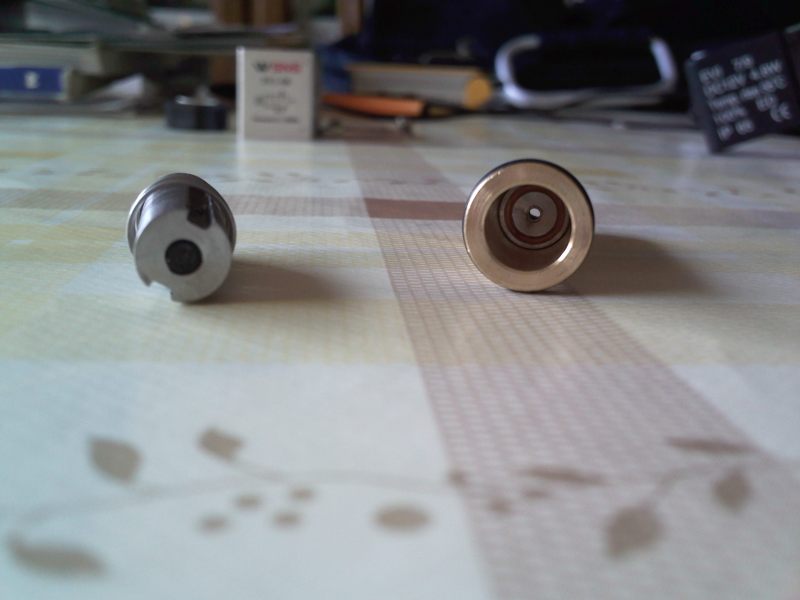

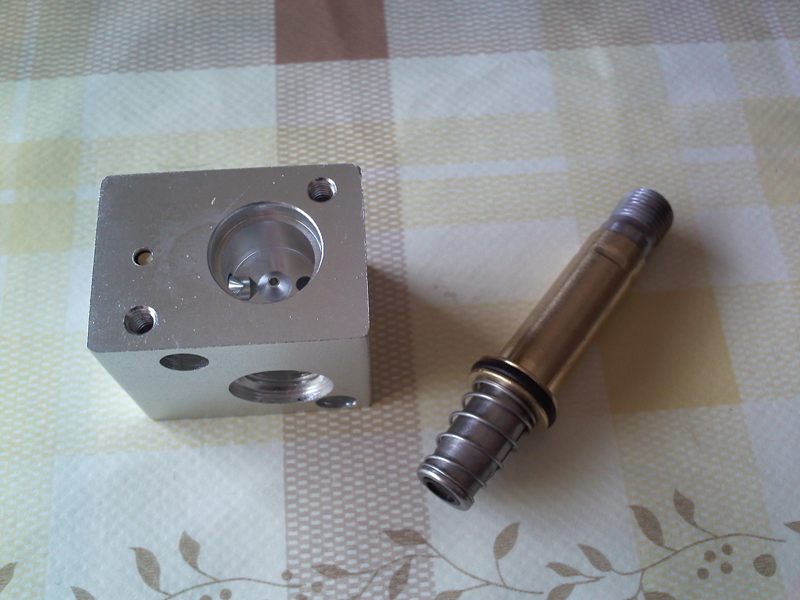

Here are more pics about the internal... I will post a diagram if you don´t get how it works (and fails)

[POLAND_SPUD]

thx

but hey it doesn't fail - it does exactly what it should -> it's a NC valve - that's all

[wyz2285]

What is a NC valve? Can it does something useful like pilot a 1/4 QEV?

[Gun Freak]

Normally closed, and yes.

[wyz2285]

It´s not a normally closed valve, it leaks from the top normally if charged from the front port. When powered, air comes out from the side ports(both of them as they are connected). I could tap the top and use it as a superb lame solenoid valve with less than 1mm D orifice

[wyz2285]

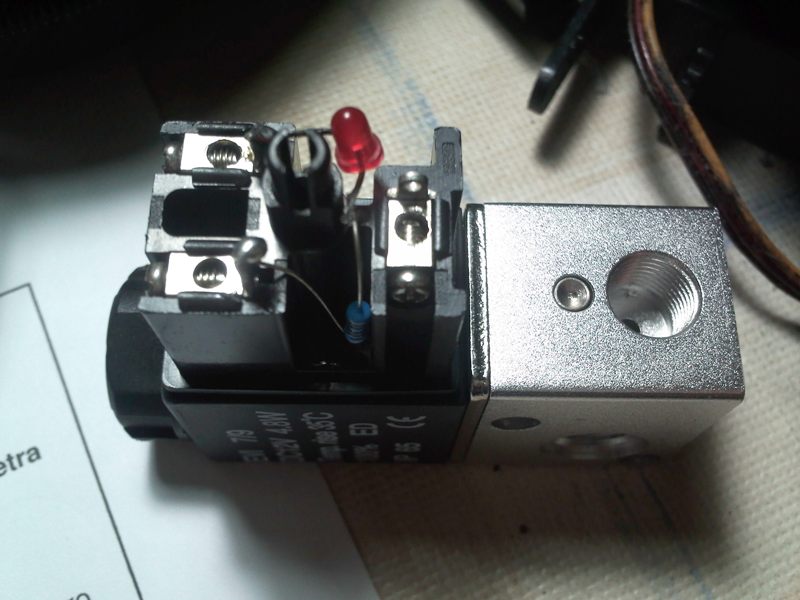

Here is the connection, anybody know how I can put this to work?

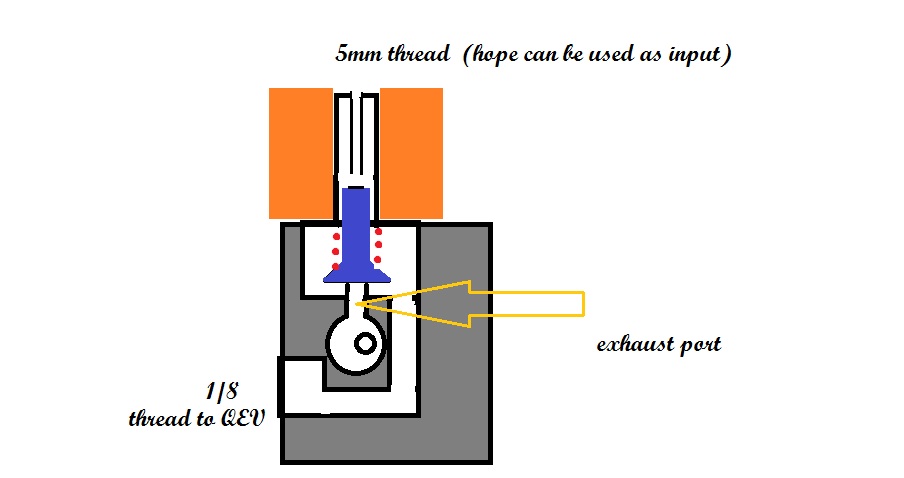

And I´m hoping this valve can be used as the following diagram, is that possible?

[POLAND_SPUD]

It´s not a normally closed valve, it leaks from the top normally if charged from the front port. When powered, air comes out from the side ports(both of them as they are connected). I could tap the top and use it as a superb lame solenoid valve with less than 1mm D orifice

Your side ports are P (pressure source - normally closed)
and the front port is A (exhaust - normally open to the exhaust)

I´m hoping this valve can be used as the following diagram, is that possible?

that's almost exactly what your valve looks internally - the only question is.... is the third (top port) threaded?

Here is the connection, anybody know how I can put this to work?

Just attach wires to the connectors - check if there are any clues as to polarity of each...
if there are none check the polarity of the LED and attach the wires accordingly

[Proxywars]

How can I make or use as a pump or compressor?

[dewey-1]

Here is typical wiring for 43650 DIN connectors:

pin 1 is DC positive
pin 2 is DC negative
pin 3 is earth/chassis ground

http://www.majordin43650.com/rha11c.html
