I did some more testing today. I dug out the larger cannon and did some tests at only 50 PSI.

The first test was done with the 4 inch barrel because the 4:1 expansion worked well on the little cannon. At 50 PSI the results were terrible. I knocked over only 3 bottles and no cans. For this to work high pressure is required to get the expansion to the larger barrel.

The second test was done with the short tennis ball barrel. Results were not bad for 50 PSI.

I then moved up to the long 2 inch barrel and managed to clear a path to 23 feet.

Knocking over stuff at a distance with the muzzle blast of an air cannon isn't easy.
Attachments

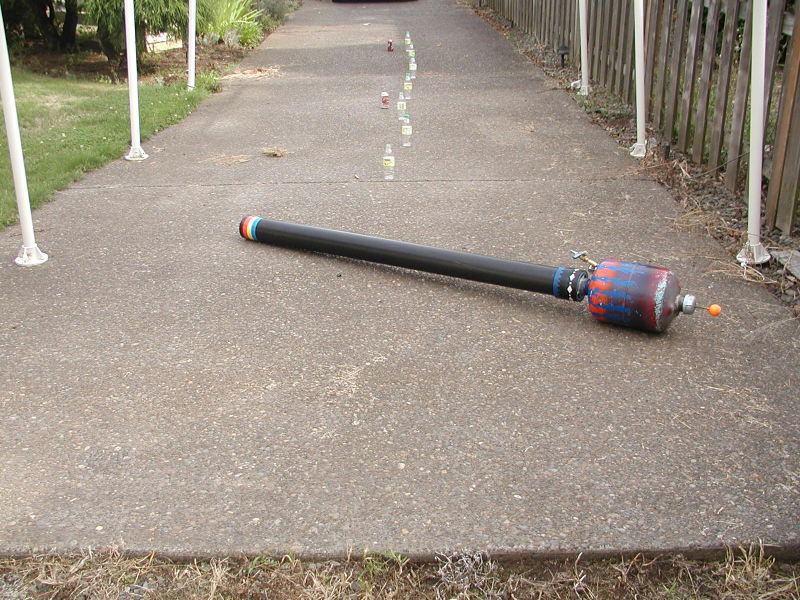

The 2 inch long spud barrel did the best with a high speed blast that tossed the near bottles, blasted over the near can and then rolled out to 25 feet dropping over bottles as it went.
The 2 inch long spud barrel did the best with a high speed blast that tossed the near bottles, blasted over the near can and then rolled out to 25 feet dropping over bottles as it went.
This tennis ball barrel did much better with an obvious slow moving blast that slowly tumbled bottles as it rolled down the line. It barely knocked over the can at 15 feet.
This tennis ball barrel did much better with an obvious slow moving blast that slowly tumbled bottles as it rolled down the line. It barely knocked over the can at 15 feet.
I knocked down just 3 bottles. A breeze came up and kept knocking the rest down, so I have just a photo of the launcher prior to the shot.
I knocked down just 3 bottles. A breeze came up and kept knocking the rest down, so I have just a photo of the launcher prior to the shot.
Top
THUNDERLORD
Sergeant 3
Sergeant 3
Posts: 1264
Joined: Fri Mar 28, 2008 1:42 pm

jarm0591 wrote:
JSR wrote:Does it have to be air that transfers the energy? Can you use the air to power a piston that physically smacks into the can, without shooting off itself?
I can use a piston, but I have to smack the can with the air....
Yeah!yeah!,
A 20+ foot telescoping captive bolt,
with some type of fan at the front! :P 8)
I Wonder how temperature of the air fired will effect performance?
edit:seems like colder would work better(?)
-----SPEED,STRENGTH, AND ACCURACY.-----
"Procrastination" is five syllables for "Sloth".
Theopia 8)
Born To Be Alive!
Top
User avatar
tomthebomb137
Specialist
Specialist
Posts: 124
Joined: Tue Jun 12, 2007 2:26 pm

I may text my pulse valve cannon for this as that is actually what a pulse valve is designed to do, knock things with blasts of air (they are used in dust collectors).

Also what are the actual rules for the testing envoirnment, i.e. does it need to be outside or can it be in a confined area?
i love finding loopholes :D
"Once the pin is pulled, Mr. grenade is no longer our friend"

"Always keep in mind your weapon was made by the lowest bidder"

-US Infantry General

"Whoever said the pen is mightier than the sword obiously never encountered automatic weapons"

-General Dounglas McArthur
