New JSR semi-auto prototype (split topic)

[JDP12]

hmm... psycix- would you ship to USA?

[psycix]

Sure. Shipping cost would be like 15 to 25 euro.
Hmm cheaper then I expected, and the shipping time to the US is shorter then to Poland!

[jackssmirkingrevenge]

what do you think about a design like this? the valve body could be machined in aluminium block while the 'spool' could be made from a threaded rod and machined disks with o-ring groves

Talk me through it, you put pressure in the pilot port, the spool moves up. contents of the spool vents through the barrel, shouldn't the "air source in port" be where the piloting port vents to reset the valve?

So if you are interested, you could take some work out of the epoxy department and have it arrive in machined aluminum, steel, or Delrin.

If I have a worthwhile enough project, I might just take you up on that...

With such facilities at hand, I wonder why you aren't already churning out pneumatic cartridges

On that note, I've decided to ditch this prototype and give cartridges another go.

[POLAND_SPUD]

Talk me through it

the valve is operated just like a single acting air cylinder, that is - it's controlled with a NC 3 way valve

[Skywalker]

Ok, I got this idea from the assisted blowback that al-xg came up with here http://www.spudfiles.com/forums/14mm-au ... 19321.html

here's my modification of it: use a slide valve to control the airflow, and incorporate that into the bolt.


I forgot to include a trigger, which would be necessary; and the air flow comes in from the reservoir through the port in the bottom of the reciever.

What do you think? Workable?

[jackssmirkingrevenge]

What do you think? Workable?

Looks like it could work, given sufficient pressure, a tight fitting projectile and a fast enough valve. I would recommend a large face for the gas piston, substantially bigger than the calibre, to ensure reliable operation.

[jackssmirkingrevenge]

In my search for a light and effective valve for my upcoming sentry project, I've decided to give this configuration another go.

Instead of an all rubber piston, I put the rubber in a section of tight fitting aluminium tubing to eliminate any potential problems from the piston warping under high pressure.

[JDP12]

hmm...

interesting. Eager to see the results of your efforts..

[jackssmirkingrevenge]

There's the usual 24 hour waiting period but true to form I'm not very optimistic hehe

[JDP12]

I thought about throwing in a low joke about how eager i was but that I'd have to wait a whole bloody day...

But I decided that's been overplayed a fair bit so I omitted it from my post..

Then again, 24 hours is what I'm facing too with gluing together various prototypes and barrels...

[jackssmirkingrevenge]

Aye, the biggest drawback of adhesives really, apart from the mess. If only they could invent some way to make parts out of a block of hard material with some sort of machine tools instead of having to cast them

[JDP12]

Yea... if only they could make those machines +CHEAPLY!!!

That's just asking for too much though...

Look for some updates of mine tomorrow CST for us yanks....

Gonna make up a prototype with a 3/4" bore

[rikukiakuchiki777]

What do you use as a piston material in your small-bores? How do you keep the sealing face bonded at high pressures? I remember being told that epoxy does not bond well to rubber...

[jackssmirkingrevenge]

Lately on my small bores I've been simply using solid rubber pistons cut from thich neoprene sheet with sharpened tubing as I did here.

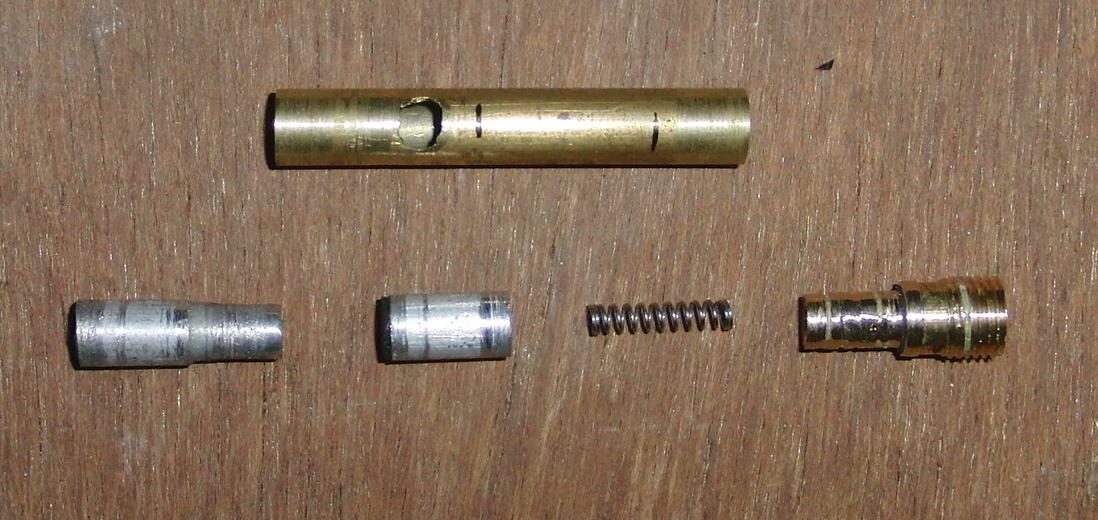

In the case of the latest incarnation of this semi attempt (which didn't work by the bay, I misaligned the "barrel" - it's been bored out though so I'll repair it when I have time) the rubber sits inside aluminium tubing as in the diagram below so it bonds very well.

Another idea is to have a solid piston and have the rubber on your sealing face like on my mini-pistons.

[CpTn_lAw]

This is what I did in the mini pen-gun I talked to you about a few months ago.
