...and NEVER forget to get the tip of the tool at the proper center height...
Top
bookyle
Private 4
Private 4
Posts: 61
Joined: Mon Dec 05, 2011 6:43 pm

wyz2285 wrote: I've just trade my M4 AEG for a SCAR GBB, gonna use HPA for it and use a AEG hi-cap.
Wait, how are you planning to convert from green gas to hpa without taping the magazine?
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:
Contact wyz2285

Wait, how are you planning to convert from green gas to hpa without taping the magazine?
More or less, the modification I have in mind it's quite complex.
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
bookyle
Private 4
Private 4
Posts: 61
Joined: Mon Dec 05, 2011 6:43 pm

Are you planning to tap the mag well and put a hammer valve where the old magazine hammer valve goes? Then run a HPA line to that hammer valve?
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:
Contact wyz2285

Basically. Actually I was going to make a valve myself and incorporate it inside the gun and run the income air through grip.
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
bookyle
Private 4
Private 4
Posts: 61
Joined: Mon Dec 05, 2011 6:43 pm

but then you'd have to deal with the trigger group and all that.

Are you planning to rip out the trigger group and use a new valve and trigger?
Top
User avatar
jakethebeast
Corporal 5
Corporal 5
Finland
Posts: 945
Joined: Sat Jul 03, 2010 4:20 pm
Location: Jakes cave

About 40% of the new spool holder printed! :wink:


Still needing matching piece for the other side and brackets to hold them in place, that's about 6-7 hours of printing...
Est Sularus Oth Mithas
Top
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6572
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:
Contact jrrdw

Had to drill my lathe spindle to mount my 4 jaw chuck. I turned/hogged out the adapter (3" spindle to 4" chuck) and used the bolt pattern for my guide. A 9/32nds deep well socket to keep the holes lined up and a piston ring compressor to hold the rig together. It worked very well! :D
Attachments

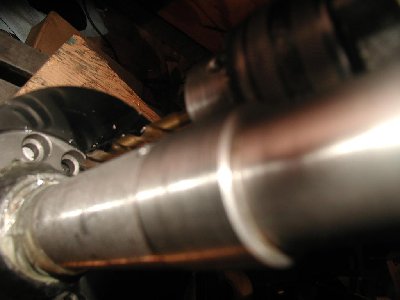

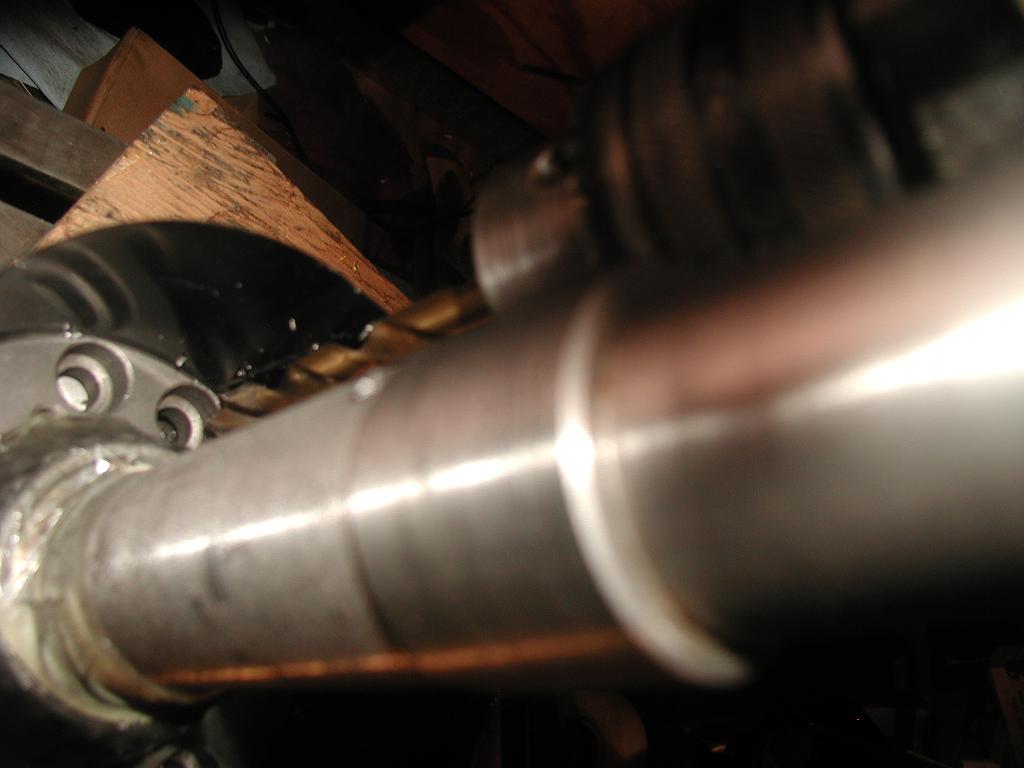

Drill bit in possistion to drill the bolt hole.
Drill bit in possistion to drill the bolt hole.

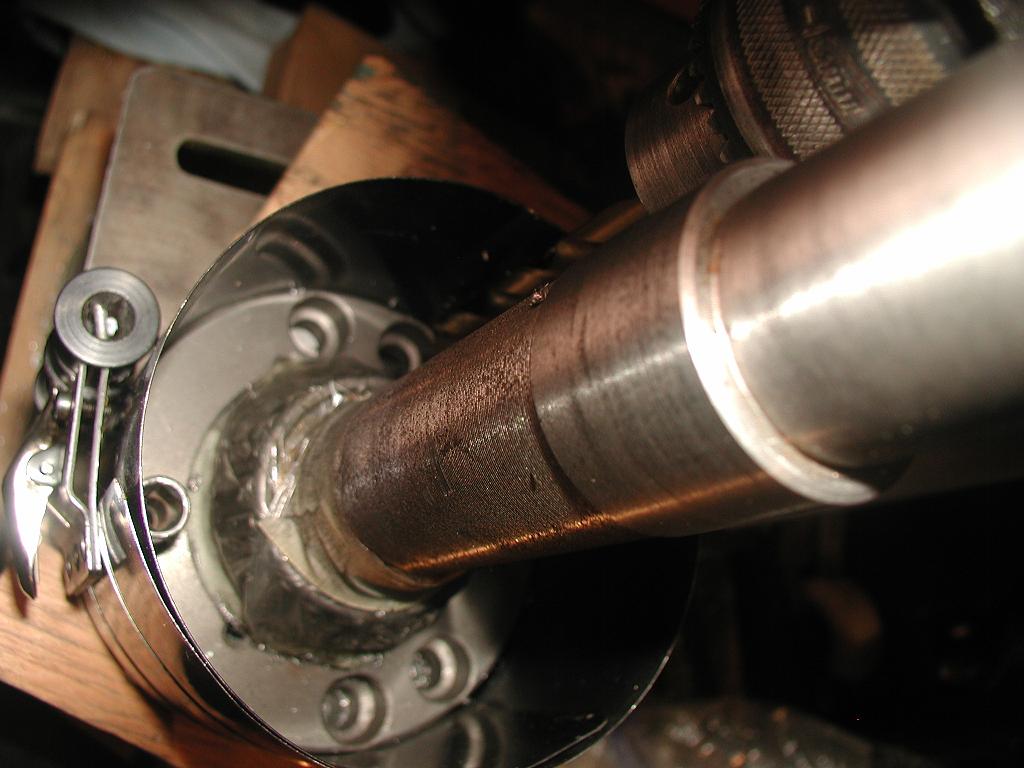

The socket lining up the bolt holes.
The socket lining up the bolt holes.

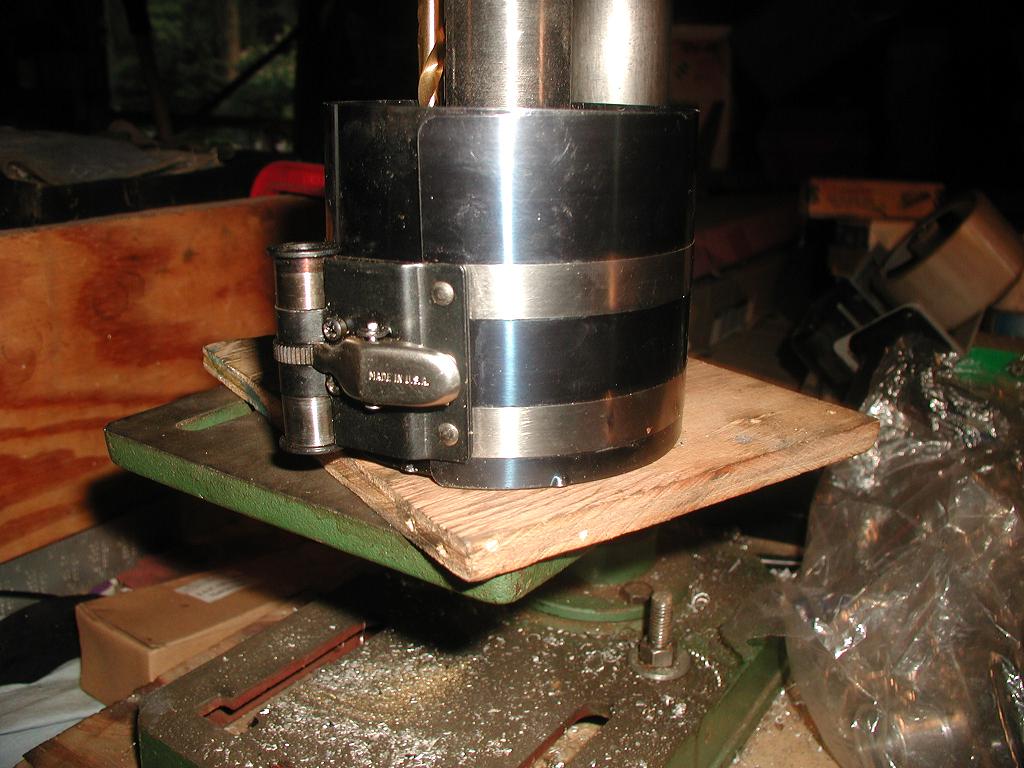

The ring compressor holding the rig together.
The ring compressor holding the rig together.
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 582 times
Been thanked: 347 times

Very nice... that ring compressor looks like a useful bit of kit...
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
CS
Moderator
Moderator
Posts: 1837
Joined: Fri Feb 18, 2005 5:32 pm
Location: Southern Utah

Jrrdw, I am assuming mounting the 4 jaw in the 3 jaw didn't work. Like this:

Top
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6572
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:
Contact jrrdw

No, mine are both 4" chucks. This particular chuck is designed to go on the 7X8,10,12 lathes not my 8X12. The 7X series lathes have 3" spindles/chuck flange and the adapter plate is used to step up the bolt pattern to fit the 4" after market chuck here.

You have the 7X10 correct? You should have the 3" set up.

DISCLAIMER: I'm speaking of the Central Machinery built lathes not Seig built lathes that are very very simular.
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 582 times
Been thanked: 347 times

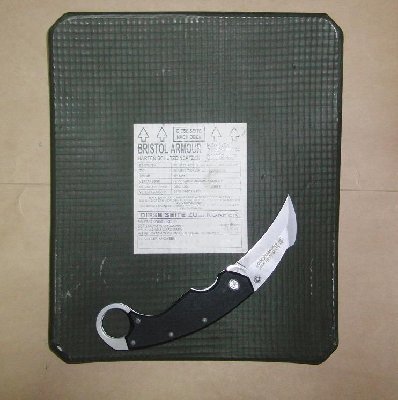

This is what happens when you machine for folks without cash, they pay you with a ceramic insert for a ballistic vest and a S&W knife :roll:
Attachments
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6572
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:
Contact jrrdw

All I can say to that is a good knife is always a keeper, but as far as payment goes.....nope. It don't pay the bills!
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 582 times
Been thanked: 347 times

Not exactly what I would term a "good" knife... http://www2.knifecenter.com/item/SWCK33 ... inch-Blade
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
jakethebeast
Corporal 5
Corporal 5
Finland
Posts: 945
Joined: Sat Jul 03, 2010 4:20 pm
Location: Jakes cave

JSR has a knife made by me, probably no store bought knifes are good enough for him :D
Est Sularus Oth Mithas
Top
