Tiberius 8

Building or modifying BB, Airsoft, and pellet types of guns. Target practice only!
User avatar
Antonio
Corporal
Corporal
Posts: 508
Joined: Sun Aug 13, 2006 2:38 pm

I saw this paintball marker the tiberius 8 (and9). It has a magazine with 8 paintballs (0.68) and a c02 capsul. The marker doesnt need to be recocked of anything. The magazine has to be inserted and you can fire. As I havent seen any posts on this marker I thought I would. I dont really get the concept of the valving. I think this system could be a solution to our semiauto creations, bc it has a mechanical trigger and no fancy solenoids...(yeah k it does have a built in regulator..)

I think it might be interesting to explore this guns working on this forum>



Here are some links to the marker:


http://forum.specialopspaintball.com/lo ... 33991.html


http://www.freepatentsonline.com/6701909.html
Its worth to login to this site for inspiration.

[youtube][/youtube]
Attachments

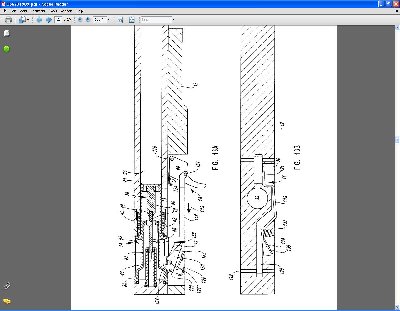

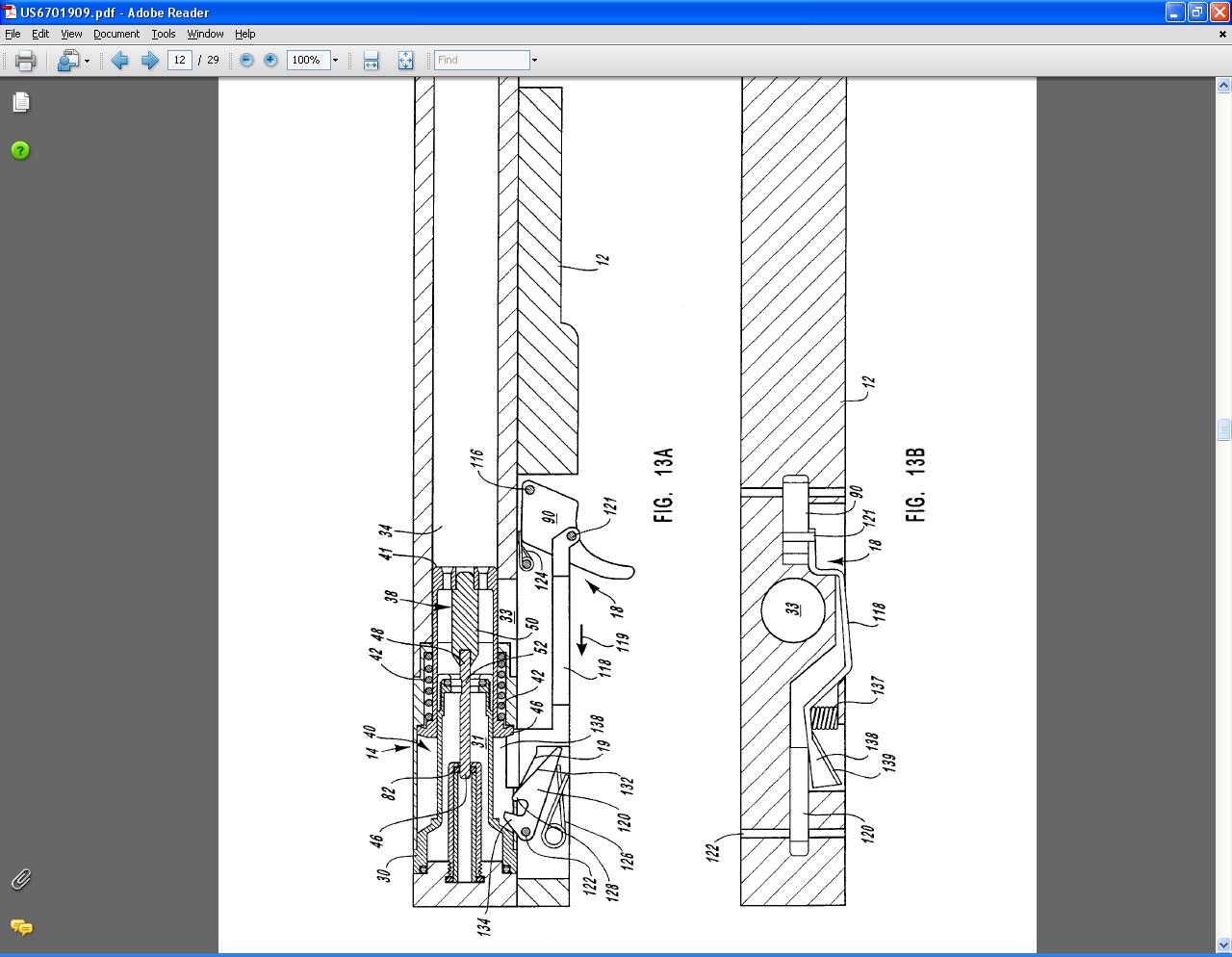

Sample from the pdf from:<br />[url]http://www.freepatentsonline.com/6701909.html[/url]
Sample from the pdf from:
[url]http://www.freepatentsonline.com/6701909.html[/url]
User avatar
Hubb
First Sergeant 2
First Sergeant 2
Posts: 2390
Joined: Mon May 28, 2007 8:39 am
Location: South Georgia
Contact:

The valve looks like it's Nelson based, which is very similar to a lot of your designs.
User avatar
Maniac
Specialist 4
Specialist 4
Posts: 496
Joined: Tue Oct 23, 2007 5:55 pm
Location: Right behind you

I don't have much time but it looks like some sort of blow back mechanism powering it. Hubb it does look some what similar to ants designs too. I know solar mounted this on his eclipse maybe he could give us some more info.
Coodude26 wrote:
People who laugh really hard at stuff that pisses you off/you getting hurt, who then say "I'm sorry, I can't stop" but you know they easily could.

Mr.C: That's not as easy as you think. It's like me kicking you in the balls and telling you to stop crying.
F.E.A.R._Sniper
Private 4
Private 4
Posts: 87
Joined: Thu Dec 20, 2007 4:43 pm

wrong wrong wrong wrong wrong it is a blow forward design based off of an automag

but it does have possibilities for semi auto use
User avatar
Hubb
First Sergeant 2
First Sergeant 2
Posts: 2390
Joined: Mon May 28, 2007 8:39 am
Location: South Georgia
Contact:

I looked again and it is Automag based.

This is how it works.
User avatar
Antonio
Corporal
Corporal
Posts: 508
Joined: Sun Aug 13, 2006 2:38 pm

hubb017 wrote:I looked again and it is Automag based.

This is how it works.

Yeah I thought of that as well. As its blowforward... but the gas valve that lets in the air into the chamber'' is designed a bit different. >Rather horizontal instead of vertical like a automag. I was wondering if the tiberius design is easier in construction and sealing..
clide
Corporal 3
Corporal 3
Posts: 784
Joined: Sun Mar 06, 2005 3:06 am
Location: Oklahoma, USA
Been thanked: 1 time

Yep, it is basically just like the one hubb posted but the air flow to the chamber is shut off by the movement of the bolt rather than the movement of the trigger.

BTW Google Patent Search is my site of choice for viewing patents. Very fast, clean and easy to use.
http://www.google.com/patents?id=1nQQAA ... dq=6701909
<a href="http://gbcannon.com" target="_blank"><img src="http://gbcannon.com/pics/misc/pixel.png" border="0"></a>latest update - debut of the cardapult
User avatar
Antonio
Corporal
Corporal
Posts: 508
Joined: Sun Aug 13, 2006 2:38 pm

clide wrote:Yep, it is basically just like the one hubb posted but the air flow to the chamber is shut off by the movement of the bolt rather than the movement of the trigger.

BTW Google Patent Search is my site of choice for viewing patents. Very fast, clean and easy to use.
http://www.google.com/patents?id=1nQQAA ... dq=6701909
Yeah I think the tiberius design is a bit easier to make as everything is inline. But yeah as I dont have machining skills I dont think I would get anywhere.
Yeah that google patent search site is really good. Its much more overviewable lol. Thnx clide
