1" barrel insert for DD1....

[jeepkahn]

While I was off this past week I got a wild hair and thought to myself, "Self, how hard would it be to make a 1" insert for DD1???" and I was like, Not hard.... I'll take pics tonite and post tommorow, but what I did was take a 15ft section of 1" sch40 and ducttaped around it until it was a snug fit into the GB barrel and did so at the bottom and every 3ft to where the 1" met the end of the GB barrel, then I removed the breech and piston from dd1 so that I could measure/mark/install a 1"slip to 2"mpt adapter and get it spaced so that the breech end wouldn't interfere with the piston sealing on the GB barrel... Then I installed a 2"slip tp 2"fpt adapter to the actual gb barrel, and when I want to use DD1 forsmaller projectiles I insert the 1" barrel and screw it onto the GB barrel, so now DD1 has a 10' GB barrel and a 15' 1" barrel ..... I'll get some chrony readings tonite between DD1 and a 15ft 1" barrel and 150psi and the decimator with a 1" 5ft barrel and 600psi...I'm guessing they'll be pretty close....

[THUNDERLORD]

When I type "DD1" in search, I get a bunch of gibberish back....Got a link???

Any way, you sleeved a 1.5" barrel with a 1" barrel (both PVC) so???

Why not just use a reducer bushing???
Maybe I've missed something(?)

[jeepkahn]

http://www.spudfiles.com/forums/dd1wood ... 17514.html

And whatI did was make it so that in less than 30 seconds you can go from shooting gbs to shooting 1" superballs and back, when I post the pics tomorow you'll get the point... The Barrel on DD1 is 10ft, the 1" barrel is 15ft, have you ever seen how flexxy a 15ft piece of 1"sch40 is??? With this setup I can add the 1" into the existing GB barrel without changing anything else...And have a straight 15ft 1" barrell....

[THUNDERLORD]

OK. Thanks for the link.
( I didn't mean any offense, it was confusing).
Looks like a vid would be very interesting. 8)

I'm wondering what the highest velocity of a 1" "superball" has been(???)

BTW, 15 feet of 1" has only a volume of about 2.25 liters.
But that could be a good aspect.

[jeepkahn]

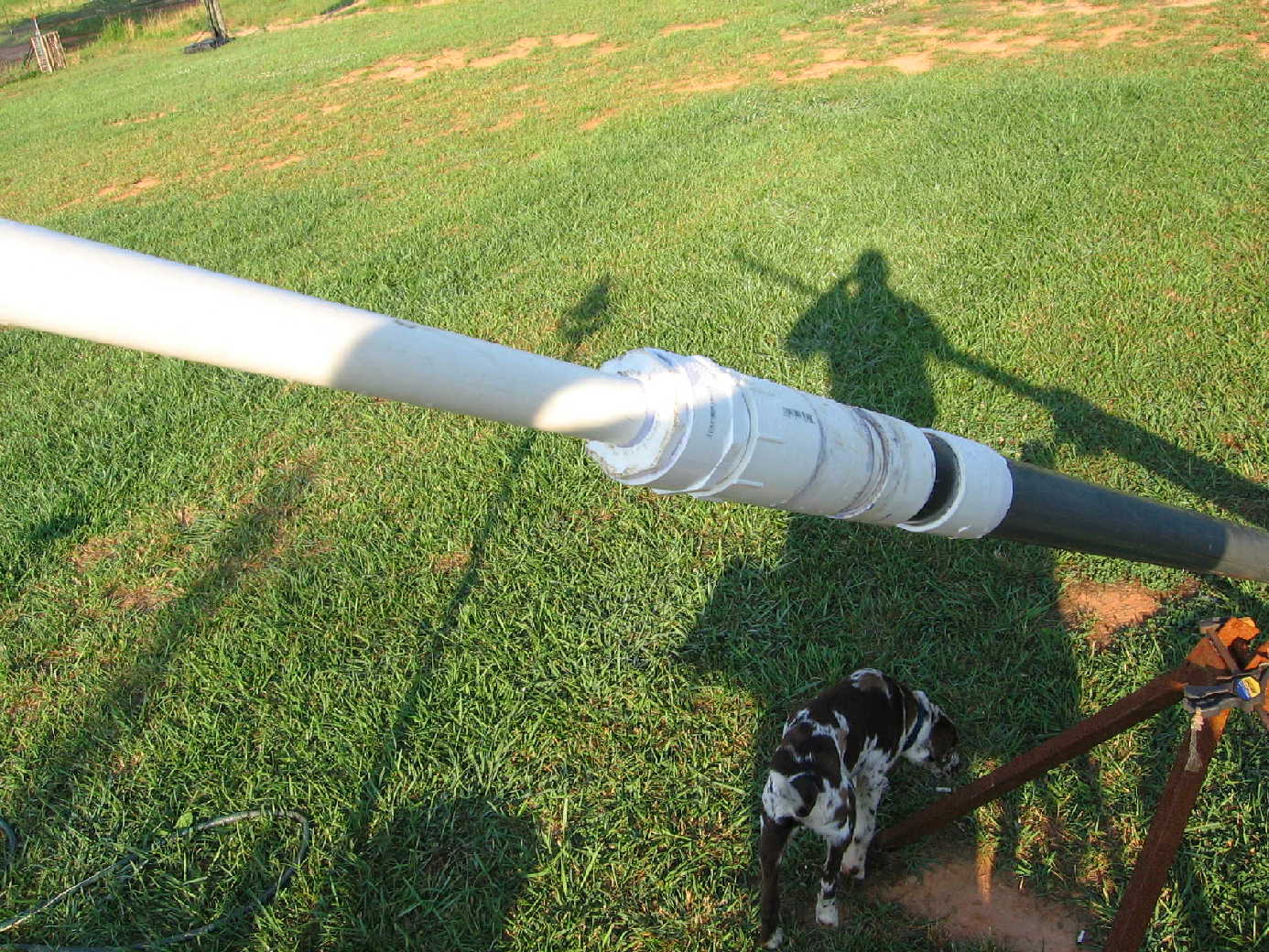

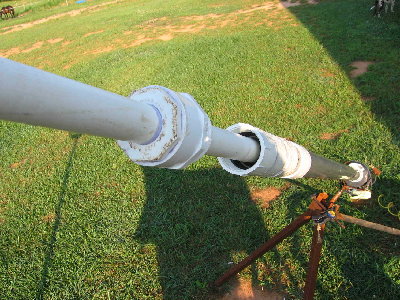

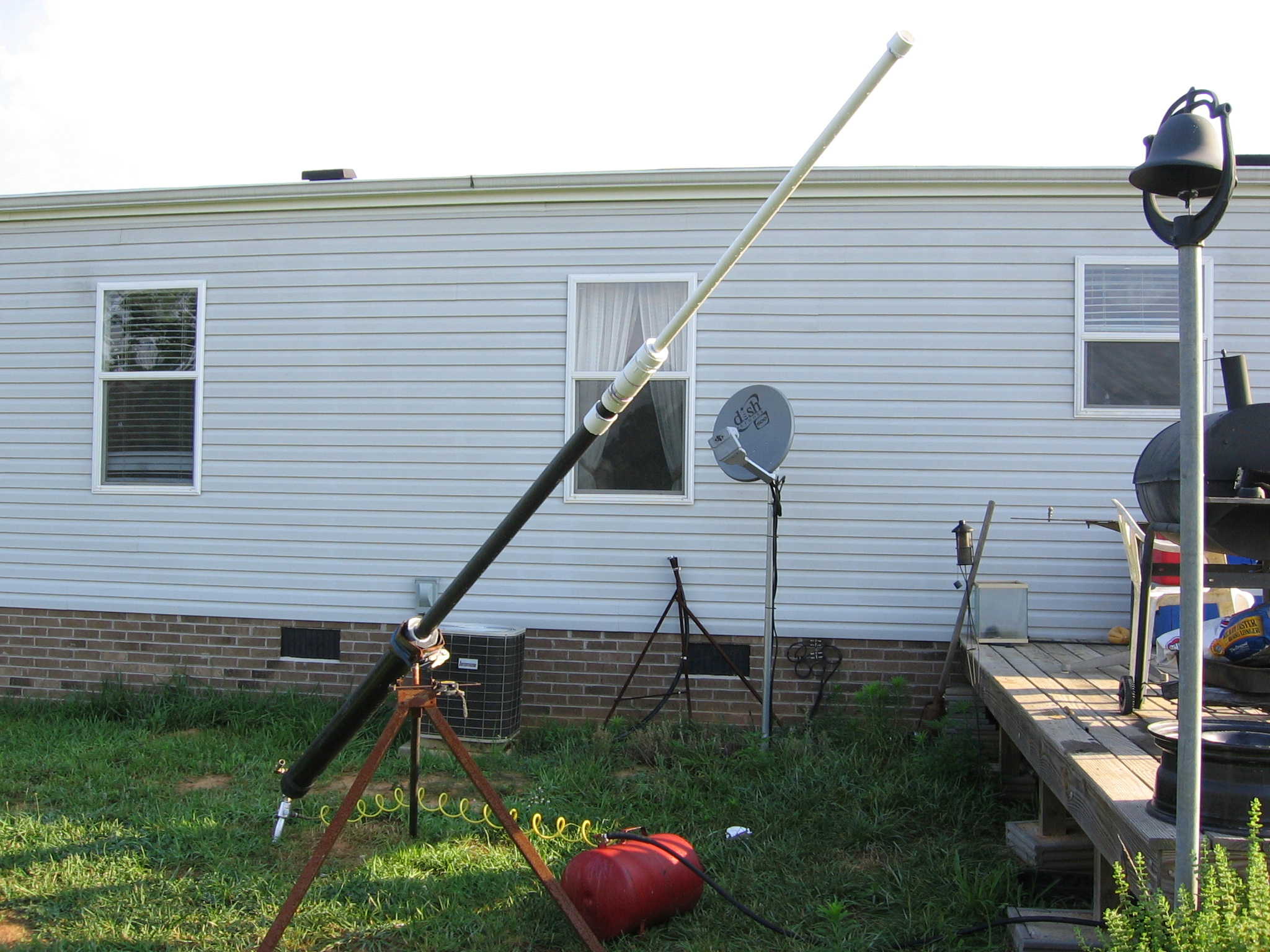

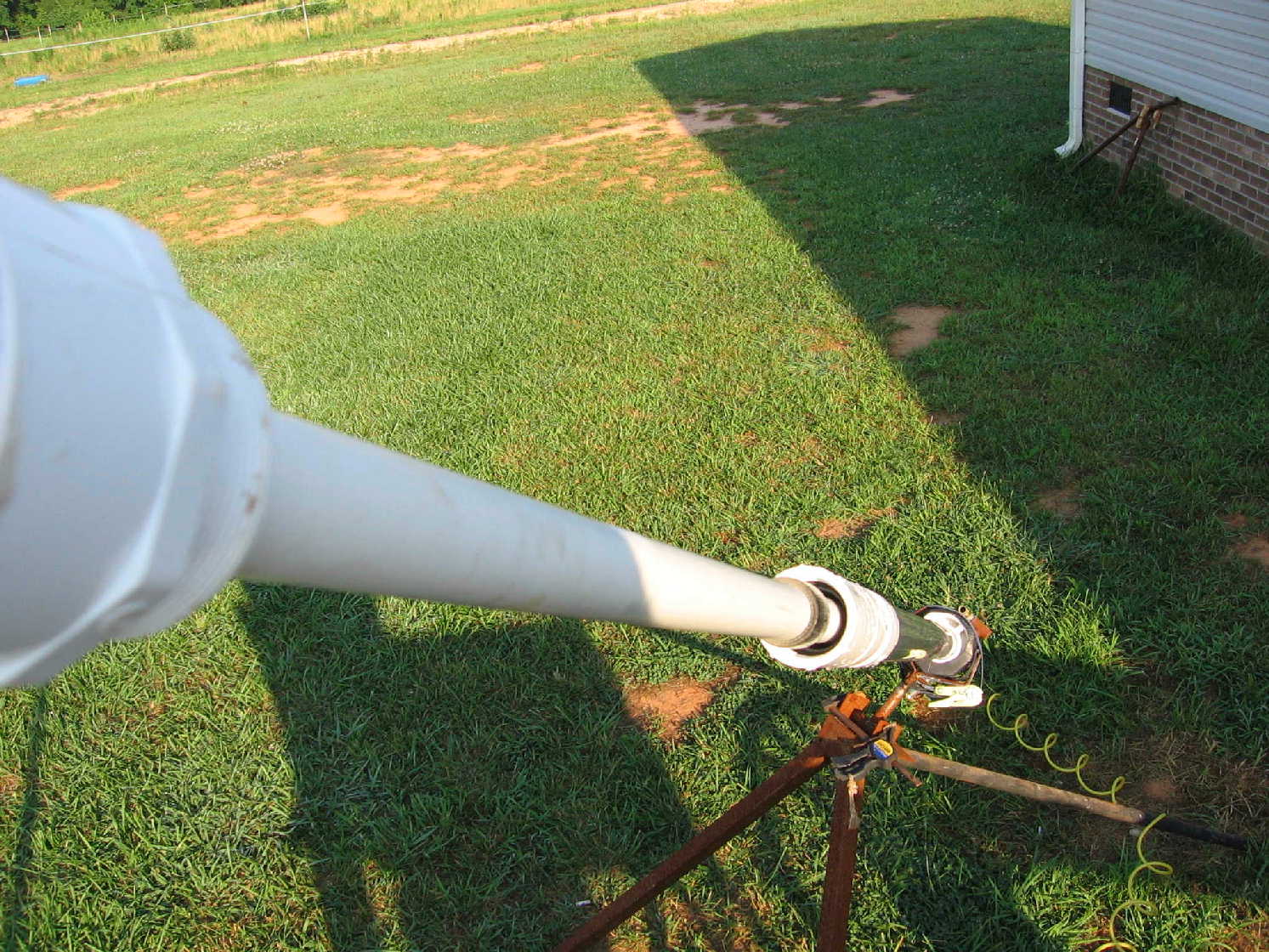

Here's the promised pics.... I didn't get home in time to do any chrony testing last nite and i took the pics this morning....

[Technician1002]

Great minds think alike. I'll grab a photo of my BG insert for my 2 inch cannon. It mounts a little differently and uses a venturi for higher COF.

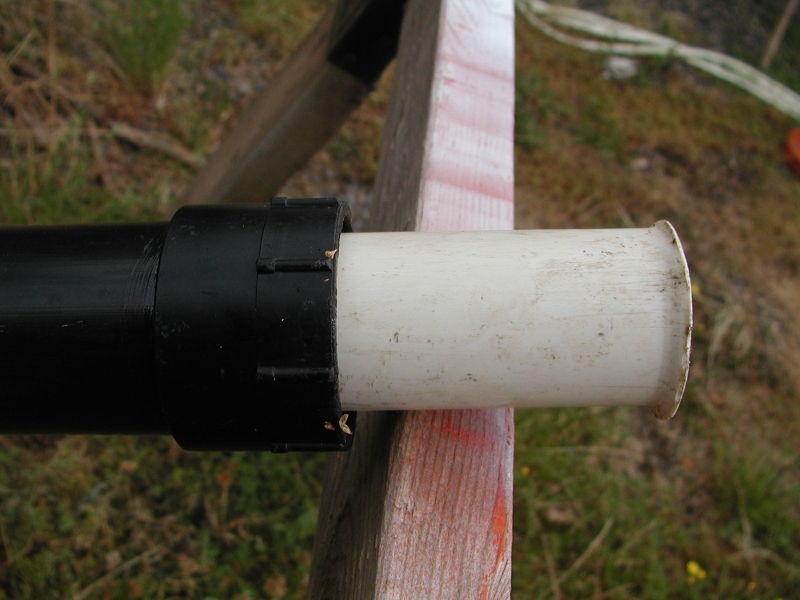

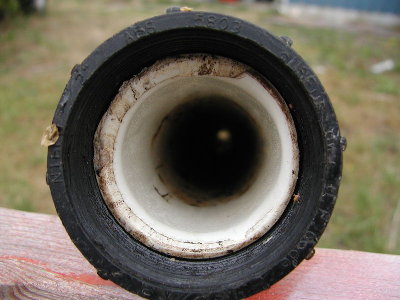

Edit.. Got photos taken. Golf Ball Barrel that slides inside a 2 inch barrel. Dual use.. Ramrod for the 2 inch or a golf ball barrel.

[jeepkahn]

If I had thought of this sooner, I would've made the decimator with a 1.25" barrel and had the ability to reduce to 1" longer barrel....
