Regulator Setup

[Mishkan]

Need some help with sanity checking all the parts I need for a portable air rig.

I want a HPA Air Tank of some kind:
68 cu inch 4500psi
Smart Parts Inline Max-Flo Regulator - A regulator that can handle low pressures (0-120 or around that area) so I can use low pressure springs that come with it.


So now the questions...
Can I plug that regulator straight into the HPA tank? If not what adapters do I need.
Also what kind of hose fittings do I need on the other size
And finally, what else could I do instead, pricewise?

[Mr.Sandman]

To me it looks like you can use it. I would measure the threads though. Regarding the hose, whatever your trying to fill would be helpful to know.

[geardog32]

i used to be big into paintball. as for your questions, yes the hpa tank screws directly into the reg (the big end) then the screw on the other end actuates the pin in the tank to release the air. this particular reg looks like it is set up with macro line fittings which are hard flexible plastic lines held in tight when pressurized and released when not pressurized. im not quite sure how you could attach the macro line fittings to a fill valve on a cannon unless you left it connected constantly. another option is a steel braided hose which was alot more common a few years back. i would say this would be a good setup but sort of pricey. i would say i have a 68/45 tank to sell you for cheap but it was stolen recently .
EDIT: you could also get a remote line from a paintball shop and maybe cut it and use a hose barb to go to whatever fill option you wish

[Mishkan]

I'm getting a used one for $60 hopefully with a tank for $50 (hydro only needed in 4 years). Also I'm pretty sure I can get get the slip fit connectors from alot of places and just convert it to quick disconnect.

[Mishkan]

Double posting I know,

Anyhow, is it also possible to get an adapter so I can use this regulator in conjunction with prefitted regulator?

[geardog32]

im not sure if i understand your question but if your talking about the tank itself most paintball hpa tanks com in two varieties high pressure (usually red) and low pressure (usually blue). the are not adjustable they are just a fixed pressure and then you would use another regulator like the one you have to fine tune. these are usually inline and threaded so you wouldnt need an adapter for your regulator. im not quite sure if that is what you were asking. what kind of tank are you getting?






.

[Mishkan]

Well from what I've found out the regulator I've listed above screws directly into the air tank. (This has the male, air tank has female). So I can buy an air tank without the prefitted regulator.


But lets say I wanted a second tank, I'd need a prefitted regulator so I can have it filled, correct? Similar to :
http://www.utahpaintballsupply.com/stor ... eneral.jpg
Then can I use the regulator I've listed above with the prefitted regulator? By way of an adapter (male to male I guess)

[Technician1002]

For what it's worth. Often for steady pressure, a low pressure on the final orifice is needed. It is common in high pressure sources to use dual stage or dual regulators. With long plumbing low pressure and high flow, dual regulators is the norm.

Places this is often seen is gas furnaces for homes. The meter regulates down to 6 inch water collum. The furnace or appliance regulates down to 4 inch water collum for the burner. This way increased gas use from the water heater or stove kicking in doesn't fluctuate the furnace pressure at the burner.

Other places this is common is SCUBA. Tank is regged down to 100 PSI and then the mask reg brings it down slightly below ambient.

[geardog32]

tech is right this is what i was trying to say earlier. the tank you linked would screw right into the reg you have pictured and this would be your two reg set up. are you saying the tank that you got does not have a male end on it like the one in the link?

[Mishkan]

The reg I have picture screws directly into the tank (without the pre reg) form what I've heard.

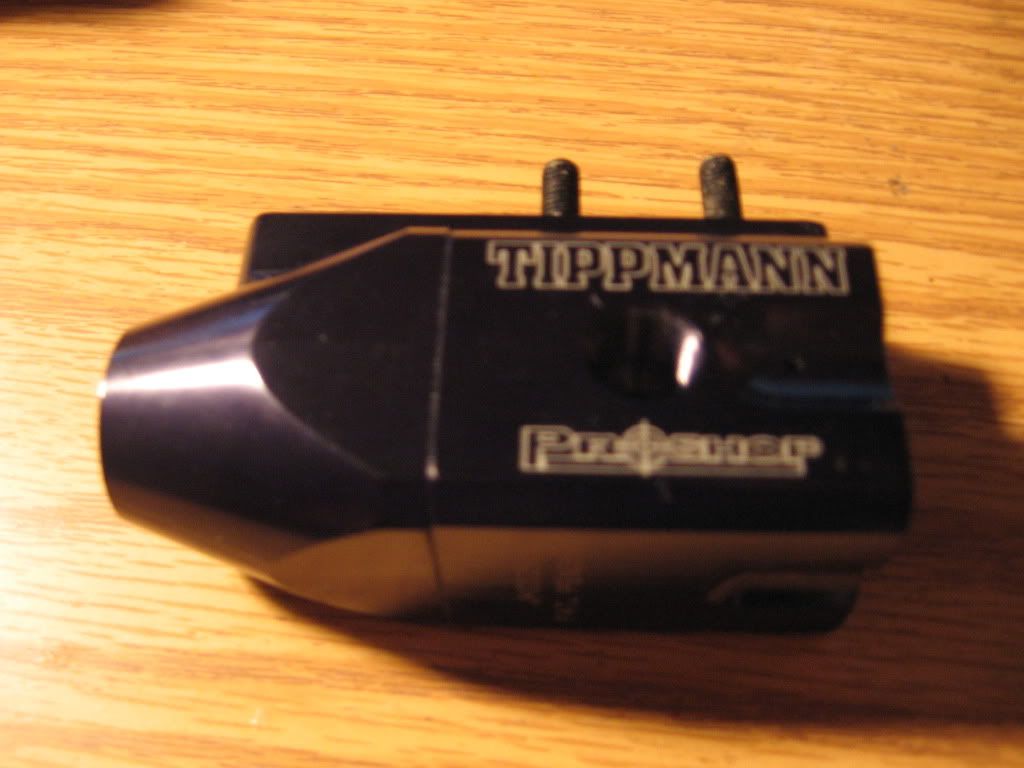

But nevermind, believe it or not I think I found something lying around.



I think thats what you call an ASA? Does anybody know anything about it? Will it work with HPA and then what else do I need to regulate down to 70 psi.

Edit found link:
http://www.airsoftpost.com/genuine-tipp ... 25706.html
So what else do I need.

[geardog32]

yes that is an ASA or air source adapter. the way this would work on a paintball gun normally is a tank like the one you linked earlier would screw into the ASA then you would run a hose from this to a regulator which is normally the front grip on the paintball gun. one way you could do it is take a tank like the one you linked then with macro line from the ASA go to something like this http://www.actionvillage.com/031-138-0028 and then screw this http://www.actionvillage.com/036-187-0001 onto the regulator and then go to your spud gun. it would be pretty sloppy but it would work.

[Mishkan]

Well multiple questions now

Couldn't I just ignore the second regulator since stability doesn't matter too much? This hypothetically reduces it down to between 0-800 psi and then I could just run it to a hose -> my cannon?

If not, what would be the cheapest option for the secondary (or I guess 3rd regulator at this point)

[geardog32]

oh, i didnt even see that it was a reg too sorry i thought it was just an ASA yes you could just go from that to your cannon since stability isnt important.

[Mishkan]

So it'll work with HPA?

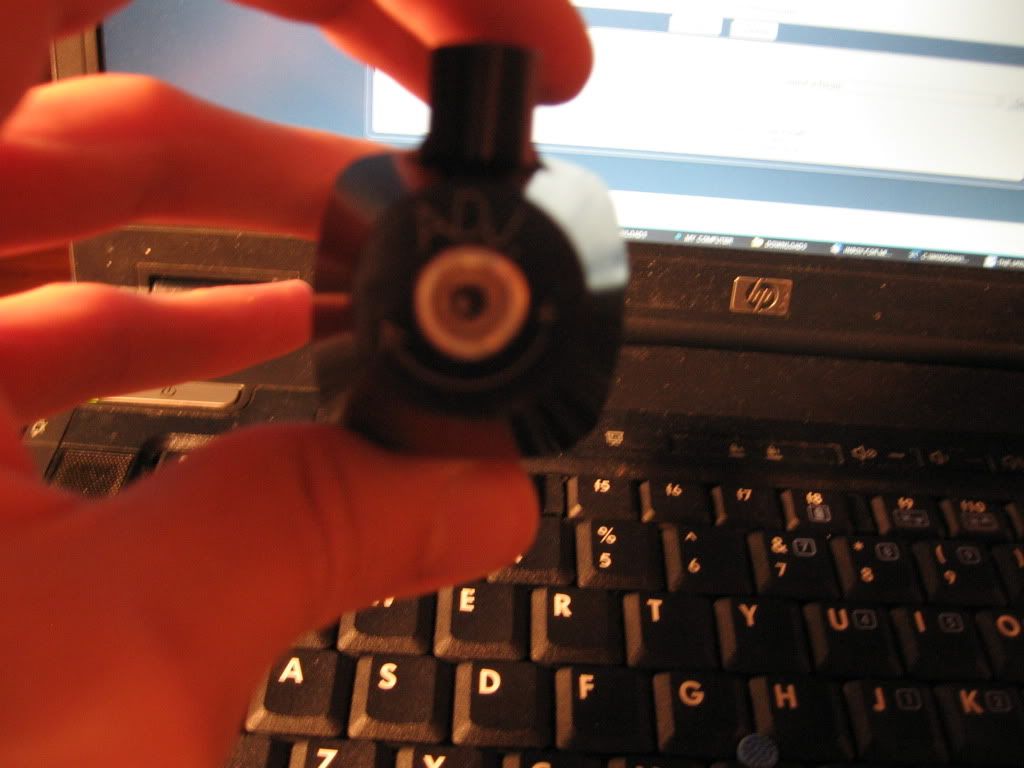

Andddd there are two holes on the side for this. I assume the smaller hole is the regulated output? What type of connector do I need there (like threading etc.)

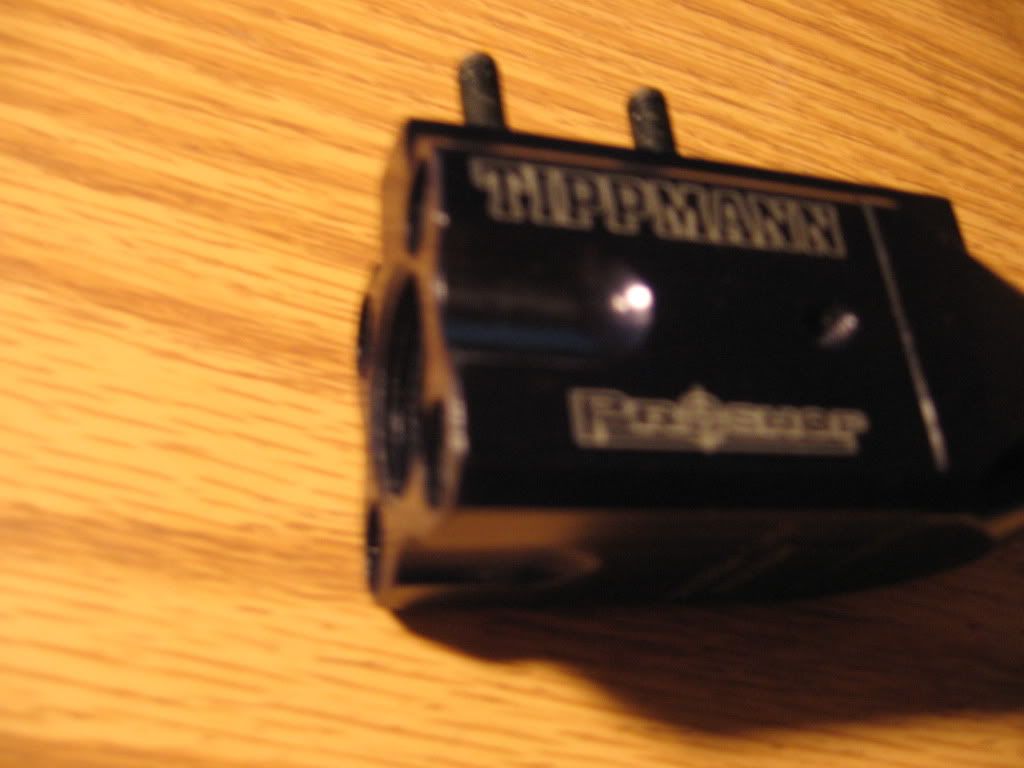

Edit: Pic from other side

Sorry for blurriness.

And turning it clockwise should increase pressure I assume.

[Mishkan]

Another double post again, I'm just trying to get this right before I have to pull PVC shrapnel out of my arm.

Is the bigger hole for a gauge?
