Portable Airsoft Gun take 2

Cannons powered by pneumatic pressure (compressed gas) using a valve or other release.
Post Reply
User avatar
noname
First Sergeant 4
First Sergeant 4
Posts: 2698
Joined: Mon Apr 10, 2006 9:19 pm
Location: Bay Area, CA

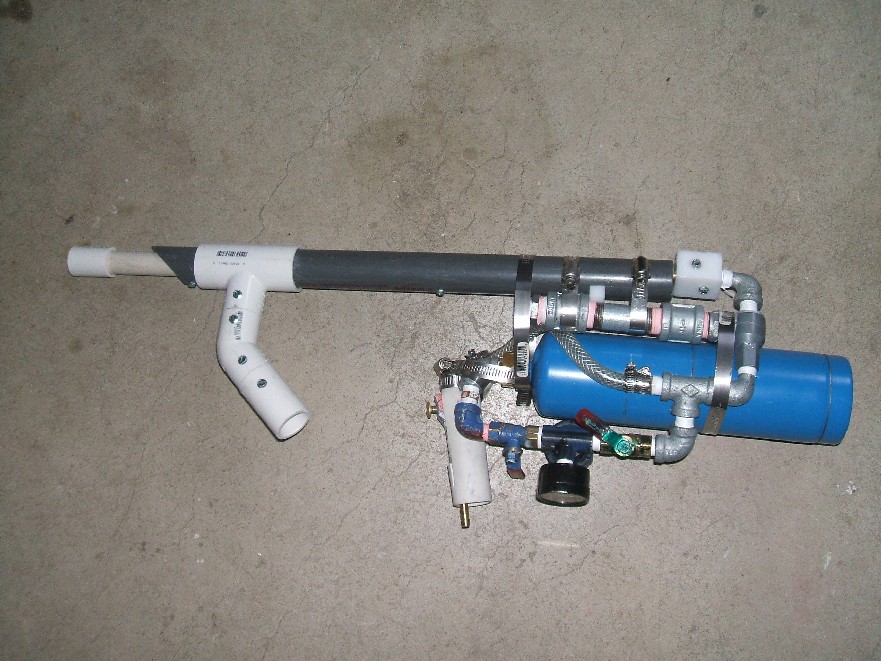

So I took apart the old one because it was too cumbersome and figured out a much more compact bullpup configuration. The gun also looks a whole lot better than the first.
I also wanted a better magazine system than a hopper on top. The hopper was annoying and got in the way and it was pretty much crappy in general.
I also added a front handle; now the gun is more like a submachine gun.
Unfortunately, I haven't been able to make a good magazine for it, but I'm going to Ace again today for some more parts. I have a spring fed design that I'm fairly sure will work this time.

Make sure to read the captions on the pictures of the two magazines to get an explanation.
Attachments
Spring fed magazine attached.
Spring fed magazine attached.

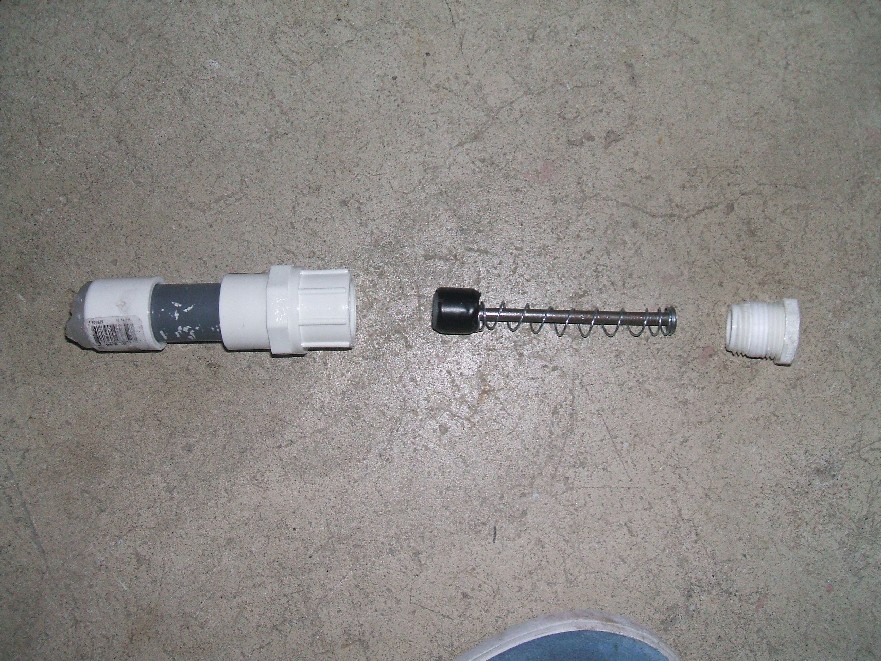

This is the spring fed magazine that I made after the tube magazine failed. It is a short section of 1/2" SDR PVC and holds 49 rounds. Unfortunately, the spring just jammed it, due to the large magazine diameter and the small breech diameter.
This is the spring fed magazine that I made after the tube magazine failed. It is a short section of 1/2" SDR PVC and holds 49 rounds. Unfortunately, the spring just jammed it, due to the large magazine diameter and the small breech diameter.

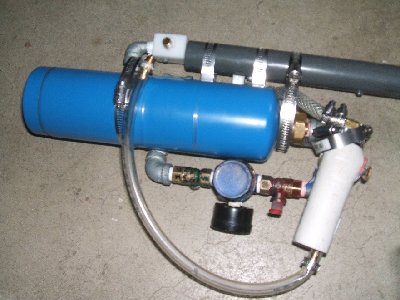

Tube magazine attached. It can easily be disconnected from the breech T.
Tube magazine attached. It can easily be disconnected from the breech T.

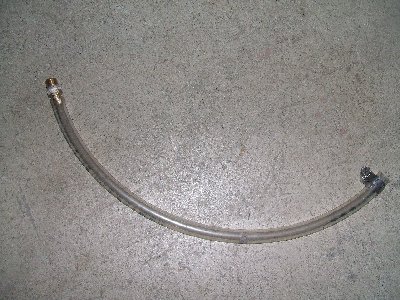

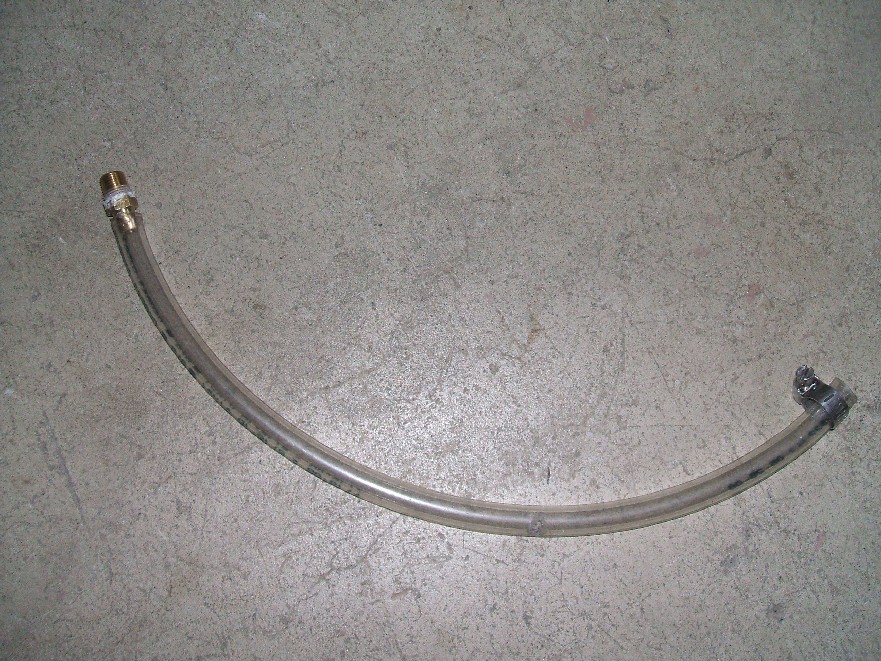

First magazine. Very simple; it's just a vinyl hose that ran from the T breech to the blowgun vent. The idea was that when the blowgun was vented, it would load one BB into the breech and the main valve would fire it. Unfortunately, the blowgun was too strong and simply blasted 10-12 BBs down the barrel, assisted by the main valve. This turned the gun into a semi automatic shotgun. Cool, but not what I wanted.
First magazine. Very simple; it's just a vinyl hose that ran from the T breech to the blowgun vent. The idea was that when the blowgun was vented, it would load one BB into the breech and the main valve would fire it. Unfortunately, the blowgun was too strong and simply blasted 10-12 BBs down the barrel, assisted by the main valve. This turned the gun into a semi automatic shotgun. Cool, but not what I wanted.

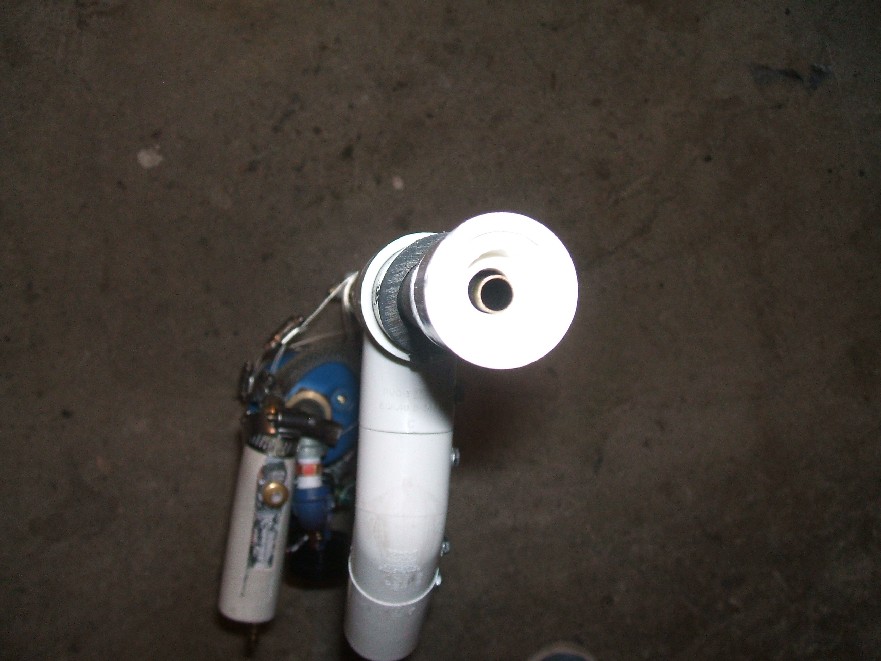

Down the barrel?
Down the barrel?

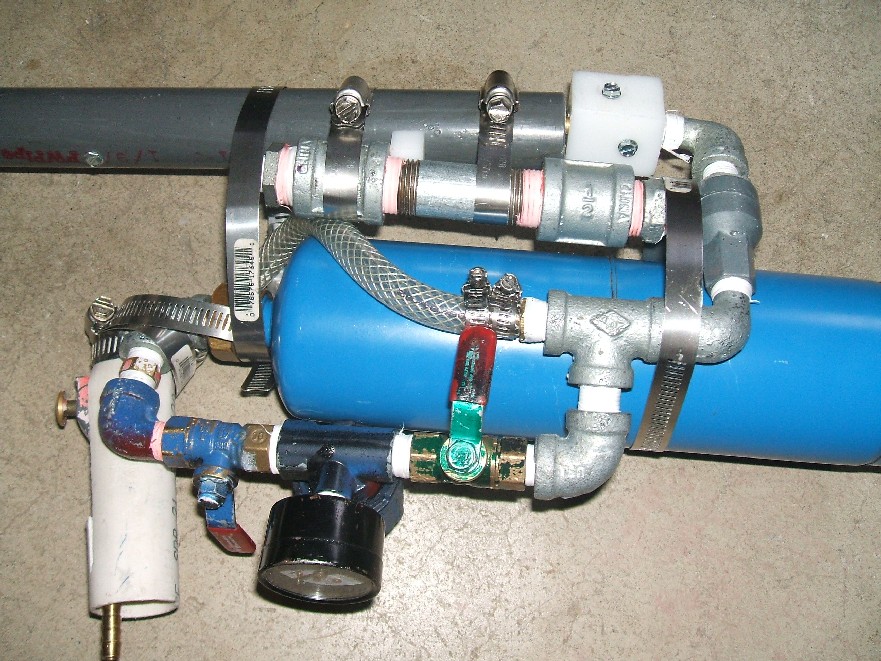

Left side detail
Left side detail

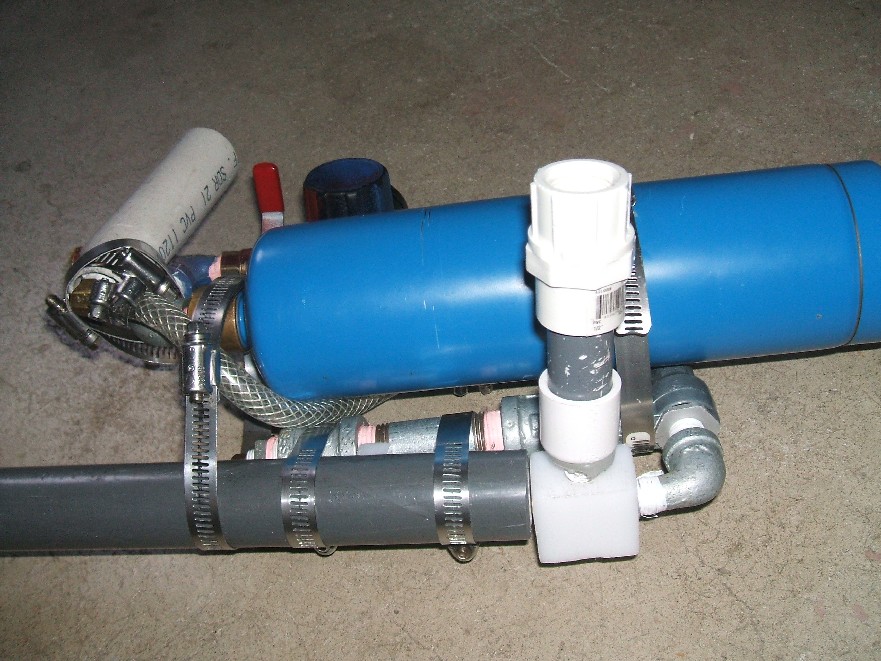

Left side
Left side

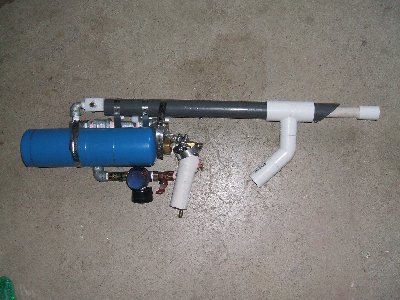

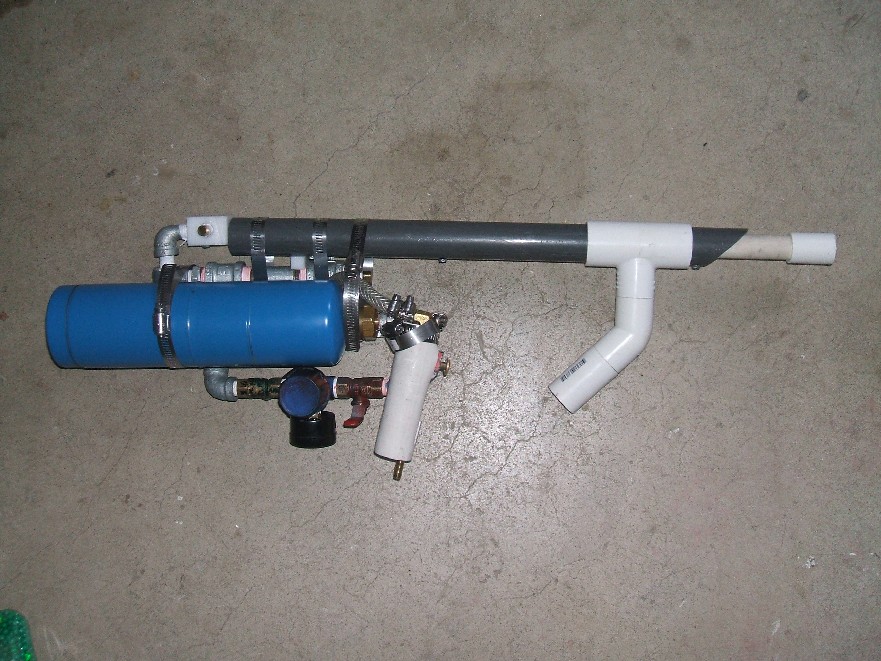

Right side. AS you can see, the gun is literally built around the propane tank, making it very compact, yet still portable.
Right side. AS you can see, the gun is literally built around the propane tank, making it very compact, yet still portable.
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 581 times
Been thanked: 347 times

Looking good, hope to see it in action soon :)
Top
User avatar
noname
First Sergeant 4
First Sergeant 4
Posts: 2698
Joined: Mon Apr 10, 2006 9:19 pm
Location: Bay Area, CA

Looking better than the last one at least. :?
A spring fed mag should work better (less jamming) it's the same diameter as the barrel/breech, right?
Top
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

as I said earlier you might as well use a hup-up unit with a magazine from an airsoft gun...
but AFAIK that's just a simple T + spring fed mag
Children are the future

unless we stop them now
Top
User avatar
noname
First Sergeant 4
First Sergeant 4
Posts: 2698
Joined: Mon Apr 10, 2006 9:19 pm
Location: Bay Area, CA

I have a working spring fed mag now, made from a 5" long piece of 1/8" steel pipe. Stuck a couple springs in and put an end cap on and it works fine. Unfortunately it feeds too many at once.
So now I'm making another blow forward bolt, but a simple design that will work as soon as I get a drill bit from Ace.
I'm making it so it doesn't work as well as a "normal" blow forward bolt does, but it will do the job, which is cutting the mag off every shot.
Top
