Is there anyway to salvage my gun? (leak)

Cannons powered by pneumatic pressure (compressed gas) using a valve or other release.
shimmer
Private
Private
Posts: 3
Joined: Tue Nov 16, 2010 4:22 pm

I made a bad decision with the inlet valve of my pressure tank. I used a schrader valve from a bicycle, thinking if I left some of the rubber on the base, it would be able to seal the hole I drilled into my pressure tank. I tried to attach the rubber to the pvc, but it is not sealing.I've already put the entire gun together (pvp cement and all) and I was wondering if anyone had any ideas for how I could try to salvage it without having to scrap my pressure tank.

I tried sealing the space between the valve and the pvc with epoxy, but that didn't work.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 582 times
Been thanked: 348 times

shimmer wrote:I tried sealing the space between the valve and the pvc with epoxy, but that didn't work.
There's always a way with epoxy, you're not trying hard enough :)

Could we have a photo to help propose a viable solution?
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Technician1002
Captain
Captain
Posts: 5189
Joined: Sat Apr 04, 2009 11:10 am

Actually drawing a vacuum on the tank and feeding windshield sealant (bonds to rubber) and then releasing the vacuum will let it set and seal in the leak. I used this on the fill valve on my Mouse Musket. No more fill valve leaks. Only a mild vacuum is needed to draw the sealant into the leak where it sets.
Selador
Specialist 2
Specialist 2
Posts: 213
Joined: Wed Nov 03, 2010 9:44 pm

Technician1002 wrote:Actually drawing a vacuum on the tank and feeding windshield sealant (bonds to rubber) and then releasing the vacuum will let it set and seal in the leak.
Good idea, by Tech.

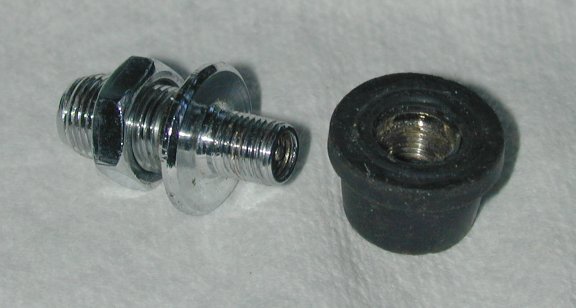

Or, you could go to your local tire store and ask for one of these.
Attachments
valve stem.jpg
valve stem.jpg (27.3 KiB) Viewed 1953 times
If you can't fix it, you don't own it.
User avatar
Technician1002
Captain
Captain
Posts: 5189
Joined: Sat Apr 04, 2009 11:10 am

Those are hard to install in a finished air chamber. This is for the fix, not a new one.
User avatar
mlz3000
Private 4
Private 4
Posts: 69
Joined: Sat Oct 23, 2010 4:55 pm

If it's possible to remove the schrader valve, you could cut through the chamber, then install the stem that Oxbreath posted, and then use a coupling to put the chamber back together.

Might not be the most elegant method (I would go with Tech's) but it might be easier.
User avatar
chinnerz
Specialist 4
Specialist 4
Posts: 470
Joined: Mon Dec 28, 2009 8:08 am

all viable options and advice, however here is mine:

>take out the valve and remove all the rubber.
>go down to your local hardware store and pick up a 1/4 inch compressor fitting... the one with threads and one side and a hose barb on the other should do
one of these.

>cut off the hose barb and make the hole a little wider... start small and work your way bigger going up .5 or 1mm at a time depending on what drill bits you have available.
>stop drilling when you can just push your valve through.
>Using a heat gun, blow torch or jet lighter; solder your valve in place.
>drill and self tap your valve into your gun.
> take it out and add some teflon tape and stick it in again.

obviously if you can get your hands on a threaded valve that would be your best bet, but if you can't then this is probably the way to go.
User avatar
mlz3000
Private 4
Private 4
Posts: 69
Joined: Sat Oct 23, 2010 4:55 pm

I got one here.
