What size threading is this?

Building or modifying BB, Airsoft, and pellet types of guns. Target practice only!
Post Reply
User avatar
Pneumaticology
Private 2
Private 2
Posts: 27
Joined: Thu Jul 21, 2011 1:47 am

Recently i decided it would be appropriate to get of my arse and get a job. So i did, and its pretty well paying too, so hopefully i will soon stop annoying you with my 'what is' and 'what if' posts and have some completed guns up soon :)

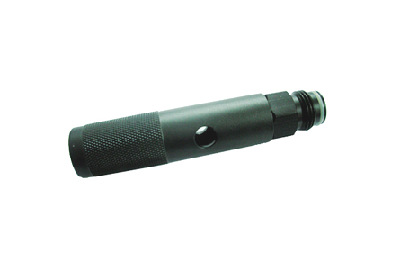

Anyway, i was wondering if anyone knows what threading the end of this adapter is, it fits into a standard paintball gun.

It looks like 1/2" NPT, and i hope it is.
Attachments
http://www.ebay.com.au/itm/Paintball-New-Quick-Change-12g-CO2-Cartridge-Adapter-/170682049785?pt=LH_DefaultDomain_15&hash=item27bd7164f9#ht_2963wt_1080
http://www.ebay.com.au/itm/Paintball-New-Quick-Change-12g-CO2-Cartridge-Adapter-/170682049785?pt=LH_DefaultDomain_15&hash=item27bd7164f9#ht_2963wt_1080
Top
User avatar
mobile chernobyl
Corporal 3
Corporal 3
United States of America
Posts: 759
Joined: Sun Dec 03, 2006 11:53 am
Been thanked: 8 times

from zdspb.com:

"ASA threads- 1/2 NPS -Female threads only. The opposing male threads are smaller to allow clearance."

the threads on the end of that 12g adapter are considered ASA threads in the paintball world...
Top
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

JSR has put them directly into a 1/2" BSP ball valve, I think.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
Top
User avatar
Pneumaticology
Private 2
Private 2
Posts: 27
Joined: Thu Jul 21, 2011 1:47 am

Smaller, so they wouldnt fit into a normal 1/2" Female NPT properly?
Top
warhead052
Staff Sergeant 3
Staff Sergeant 3
Posts: 1769
Joined: Mon Mar 21, 2011 5:41 pm

Gun Freak wrote:JSR has put them directly into a 1/2" BSP ball valve, I think.
If you can, send me a link? I just thought of something, and if that works then it would be perfect.

Pneumaticology, if all else fails, get a fitting that fits it as tightly as possible, screw it in until it won't move, then fill the gaps with jb weld or equally strong adhesive.
Top
User avatar
Petitlu
Corporal 4
Corporal 4
Posts: 807
Joined: Fri Jun 03, 2011 4:52 am

this is my first PAC!
threading is the 1 / 2 BSP, here it is screwed to a plumbing fitting
