How to take apart quick-disconnects

A place for general potato gun questions and discussion.
Post Reply
PotatoEnemy17
Specialist
Specialist
Posts: 100
Joined: Tue Apr 10, 2012 6:33 pm

Hi everyone!, The other day I suddenly got this urge to take something apart, and a quick-disconnect sitting on my workbench caught my eye. The simple, yet amazing quick-disconnect is something almost every spudder is familiar with, and most of us only vaguely know how it really works. Anyway maybe one of you can use this in the production of some sort of valve. So lets begin:

Edit: oops, I messed up the photos :oops:, the tutorial starts at the bottom
Attachments

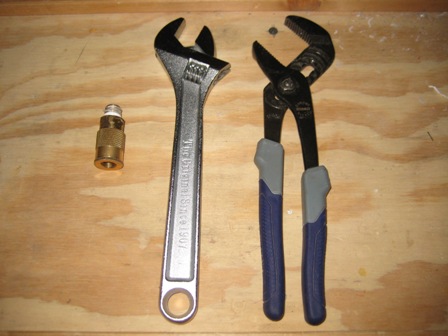

This is what you will need: quick-disconnect, big wrench, channel locks
This is what you will need: quick-disconnect, big wrench, channel locks

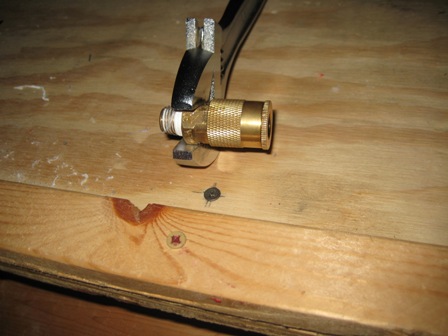

Put the wrench on the hex part of the quick disconnect.
Put the wrench on the hex part of the quick disconnect.

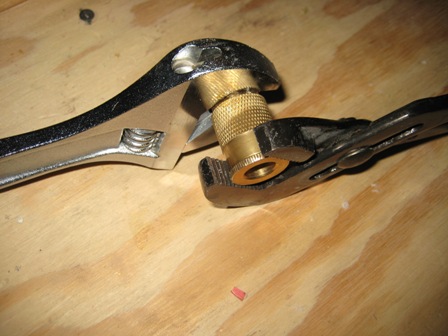

Now put the channel locks on the bumpy front part of the quick-disconnect and hold the channel locks as hard as you can, then you can unscrew the two halfs of the quick-disconnect
Now put the channel locks on the bumpy front part of the quick-disconnect and hold the channel locks as hard as you can, then you can unscrew the two halfs of the quick-disconnect

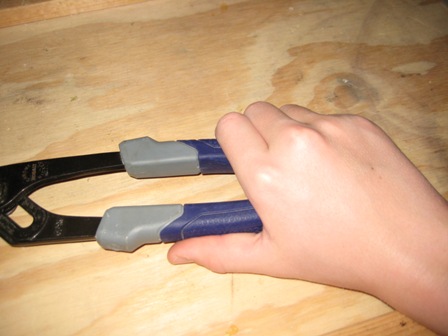

Make sure to hold the channel locks at the end of the handle for maximum leverage.
Make sure to hold the channel locks at the end of the handle for maximum leverage.

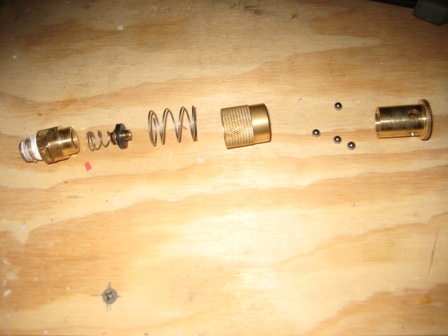

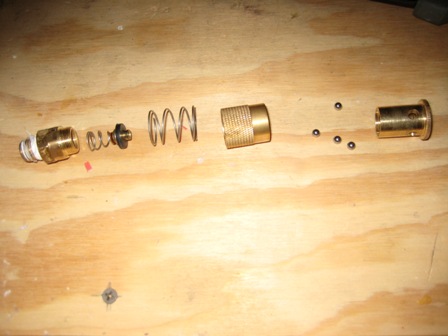

The exploded veiw
The exploded veiw

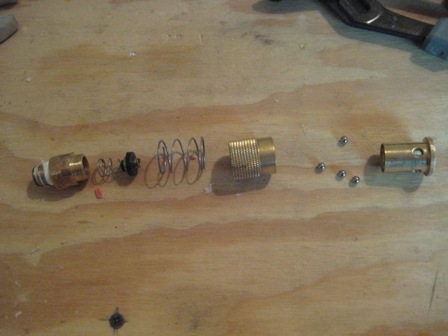

Another veiw
Another veiw
Top
