New air gun/ first post hammer valve help

Building or modifying BB, Airsoft, and pellet types of guns. Target practice only!
Post Reply
Patrickstar
Private
Private
Posts: 6
Joined: Wed Aug 21, 2013 12:31 pm

Hello guys! :D I am working on a new gun. I am going to be using air to power this gun. I want it to semi auto. So I will be using a hammer valve. I have drawn up an idea for a hammer valve. I want to know if this will work. I have a good hunch that this will but I just want some clarification. I will be using pvc for the air chamber and brake link for the valve.
Attachments

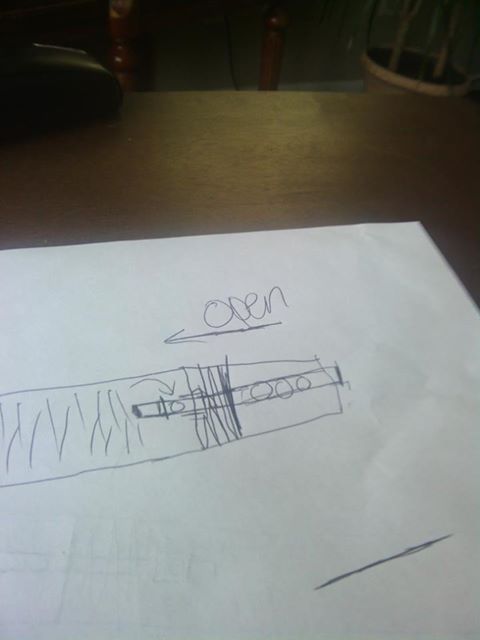

Now the valve is open allowing the air to go through the holes and release the air. There will be a barrel just right about the valve so thats were that will be.
Now the valve is open allowing the air to go through the holes and release the air. There will be a barrel just right about the valve so thats were that will be.

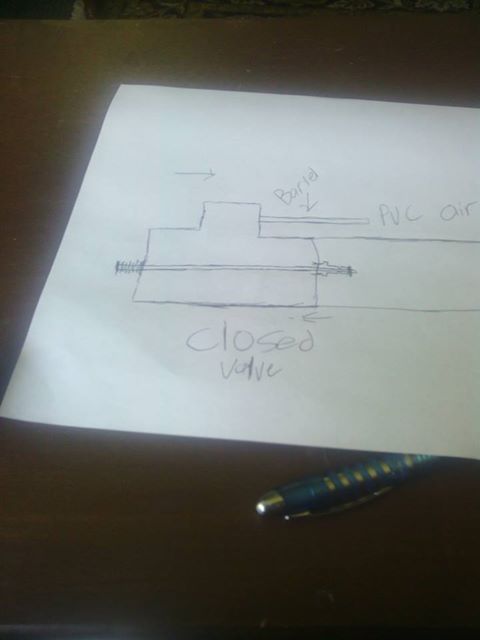

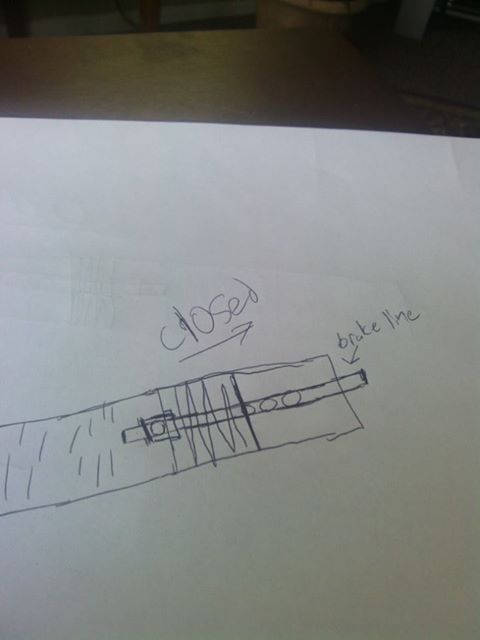

So what you are seeing is the close valve. Basically there is a spring that is pushing on the brake line to shut it against the nipple that comes on the brake line. both ends of the brake link are close and will be sealed tightly. Then there are holes in it to let the air out when it is opened. An o-ring will be on the brake line to make sure air does not go over the brake line through the nipple.
So what you are seeing is the close valve. Basically there is a spring that is pushing on the brake line to shut it against the nipple that comes on the brake line. both ends of the brake link are close and will be sealed tightly. Then there are holes in it to let the air out when it is opened. An o-ring will be on the brake line to make sure air does not go over the brake line through the nipple.
Top
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6572
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:
Contact jrrdw

I sent you a PM, I suggest you answer it. :?
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 582 times
Been thanked: 347 times

Basically something like this?

[youtube][/youtube]
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
Patrickstar
Private
Private
Posts: 6
Joined: Wed Aug 21, 2013 12:31 pm

Pretty much except that I will be using pvc as an air tank instead of a bike pump.

Also the "pin" is going to brake line so mine is a larger scale.

Edited by jrrdw, double post.
Top
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

It's been made before with pvc and brake line a long while back by clemsonguy1125 and it works. It's not the best valve but it will fire a bb.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
Top
Patrickstar
Private
Private
Posts: 6
Joined: Wed Aug 21, 2013 12:31 pm

What would you prefer?
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 582 times
Been thanked: 347 times

A cheap off the shelf QEV setup :)

http://www.spudfiles.com/forums/semi-au ... 23626.html
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
Patrickstar
Private
Private
Posts: 6
Joined: Wed Aug 21, 2013 12:31 pm

where can i purchase a qev and slide valve besides from ebay
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 582 times
Been thanked: 347 times

Amazon :) http://www.amazon.com/Amico-Inlet-Outle ... B007Q82QTM

You won't normally find them at your average hardware store.
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
Patrickstar
Private
Private
Posts: 6
Joined: Wed Aug 21, 2013 12:31 pm

Thank you now I might do that or still make a hammer valve. Now should I have a really tough spring a kinda tough spring like in the middle between tough and easy spring.
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

You need to start experimenting with springs, hammer weights, the amount of travel on it.

Hard to tell.

The idea is sound though.
But remember, the bigger these things get, the harder they are to knock open.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
Patrickstar
Private
Private
Posts: 6
Joined: Wed Aug 21, 2013 12:31 pm

What I am thinking now
Attachments

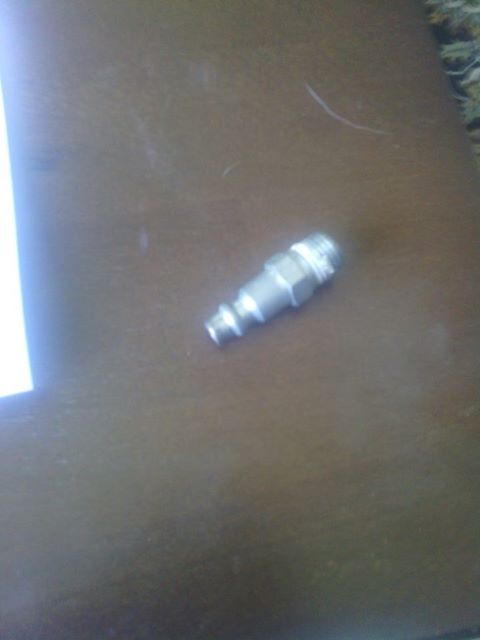

This is the male adapter I will use
This is the male adapter I will use
Now this is when the valve is open the air will rush through the male adapter.
Now this is when the valve is open the air will rush through the male adapter.
so what I am thinking now is to use a long nail as my pin I will have an o ring on one end which which will be the end inside the air tank. There will be a male adapter screwed in so the smallest part is showing inside the air tank. The spring will be outside of the pvc pipe. By the nail head. So the mail adapter is what the air will go through.
so what I am thinking now is to use a long nail as my pin I will have an o ring on one end which which will be the end inside the air tank. There will be a male adapter screwed in so the smallest part is showing inside the air tank. The spring will be outside of the pvc pipe. By the nail head. So the mail adapter is what the air will go through.
newest valve.jpg (17.97 KiB) Viewed 5288 times
Top
