Pengun valve

[finland66]

Hello

I am making pengun for something like 60 bar mayby unreg co2. But shrader valve won't work becose its hard to push open. Have anybody any ideas for the valve.

[jackssmirkingrevenge]

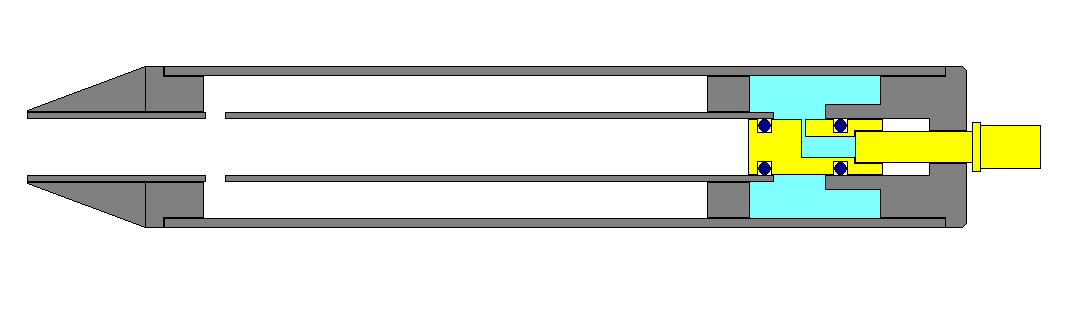

Here's one idea I had:



From this thread.

[Technician1002]

That design will need a stop to prevent the piston valve from ejecting. How is it fired?

A slight modification attaching the piston to the "pen button" so pulling the button also pulls the piston would work. A re-coloring of the button to match the piston color could represent them moving as a unit. A slight modification to make the piston able to move on the trigger and it would become a QDV.

The aprox 30 psi per pump stroke is not linear. It will roll off to a max pressure of the compression ratio of the pump. Compression ratio = pump volume / dead volume. In other words when all the air from the pump stroke volume is able to fit compressed into the dead spaces by the o rings, around the pump, in the check valve tube, and stops going through the check valve due to equal pressures.

[finland66]

Thanks

Jsr is your desing triggeret by pulling that "pen button." Mayby i also cant put one of these http://www.valve-push-button.com/ but are they hard to push at high pressures?

[jackssmirkingrevenge]

A slight modification attaching the piston to the "pen button" so pulling the button also pulls the piston would work.

Look closely, the button is threaded to the piston, the idea is that you pull it to fire - it is a QDV

The aprox 30 psi per pump stroke is not linear.

Hence my "very roughly" notation

Mayby i also cant put one of these http://www.valve-push-button.com/ but are they hard to push at high pressures?

Hmmm... let's look at this: http://valve-push-button.com/magento/pu ... tball.html

Rated for 54 bar.

Button force to open valve at 800 psi pressure drop = 30lbs.

By comparison, typical trigger pull for a firearm is around 5lbs....

[finland66]

Damn I'l need body trainer to shoot my gun
Any other ideas wich allows filling from schrader.

Edit: schrader where I gone fill the gun wont have core if not needed

[jackssmirkingrevenge]

Damn I'l need body trainer to shoot my gun
Any other ideas wich allows filling from schrader.

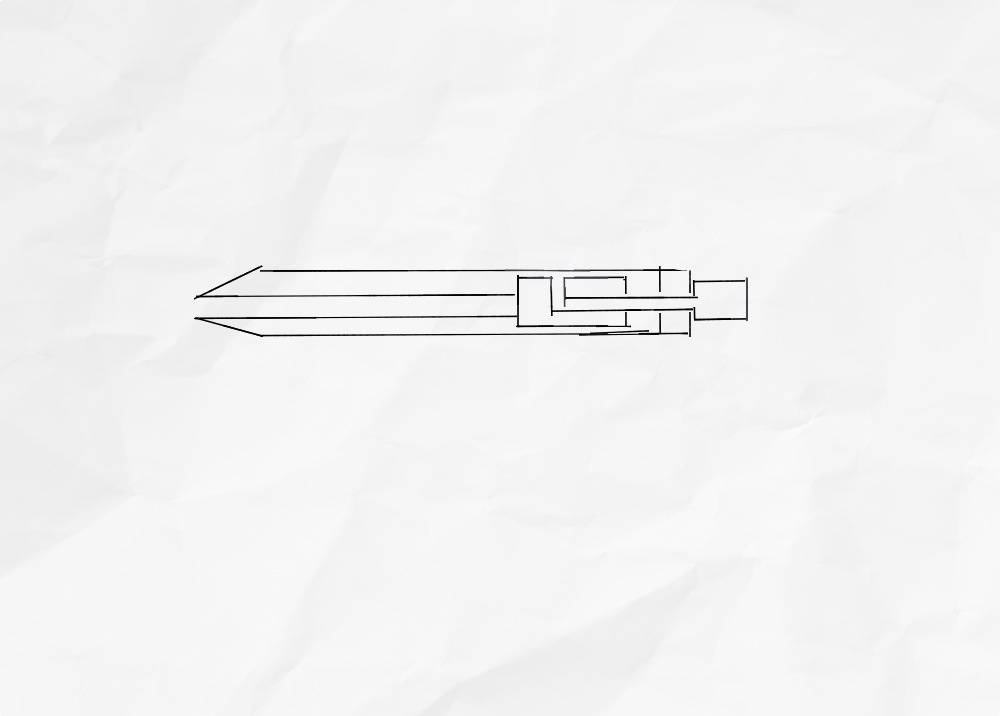

Here you go, this time colour coded for clarity

[finland66]

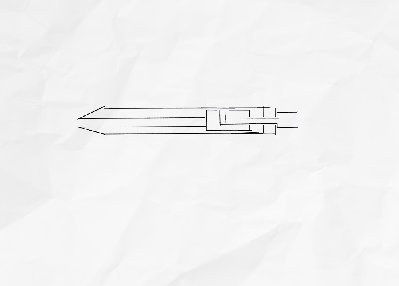

Thanks a lot good idea I'l just make chamber bigger. By the way i think that this could work too

[jackssmirkingrevenge]

the piston needs to be balanced though

http://www.spudfiles.com/forums/quick-d ... 17858.html

[finland66]

Okey many thanks lots of usefulli info. I'l start to do something
