paintball gun dimensions (Tippmann SL-68 II)

[markdem]

I have taken measurements of a Tippmann SL-68 II paintball gun internals, mostly for my own record keeping but others may want to take advantage of this data. I couldnt be bothered taking measurements of the bolt-catch or trigger - tough tacky, figure it out from the pictures. Adjustments may be required, but the measurements are pretty close.

All measurements are in millimeters. Based on the Nelson valve.

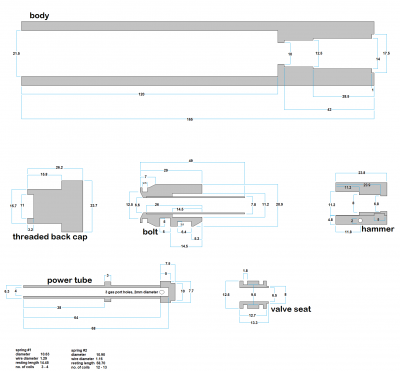

metric dimensions

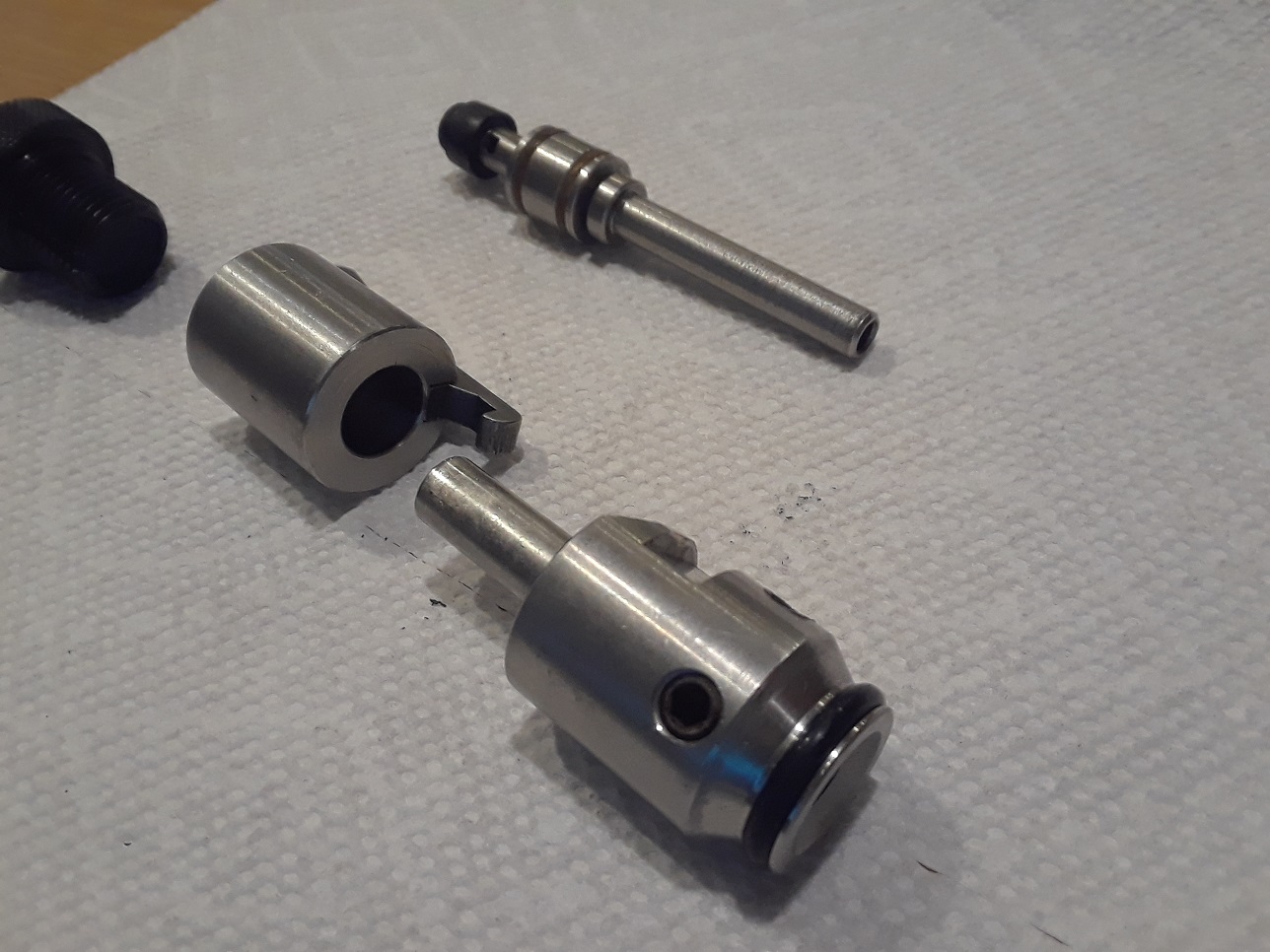

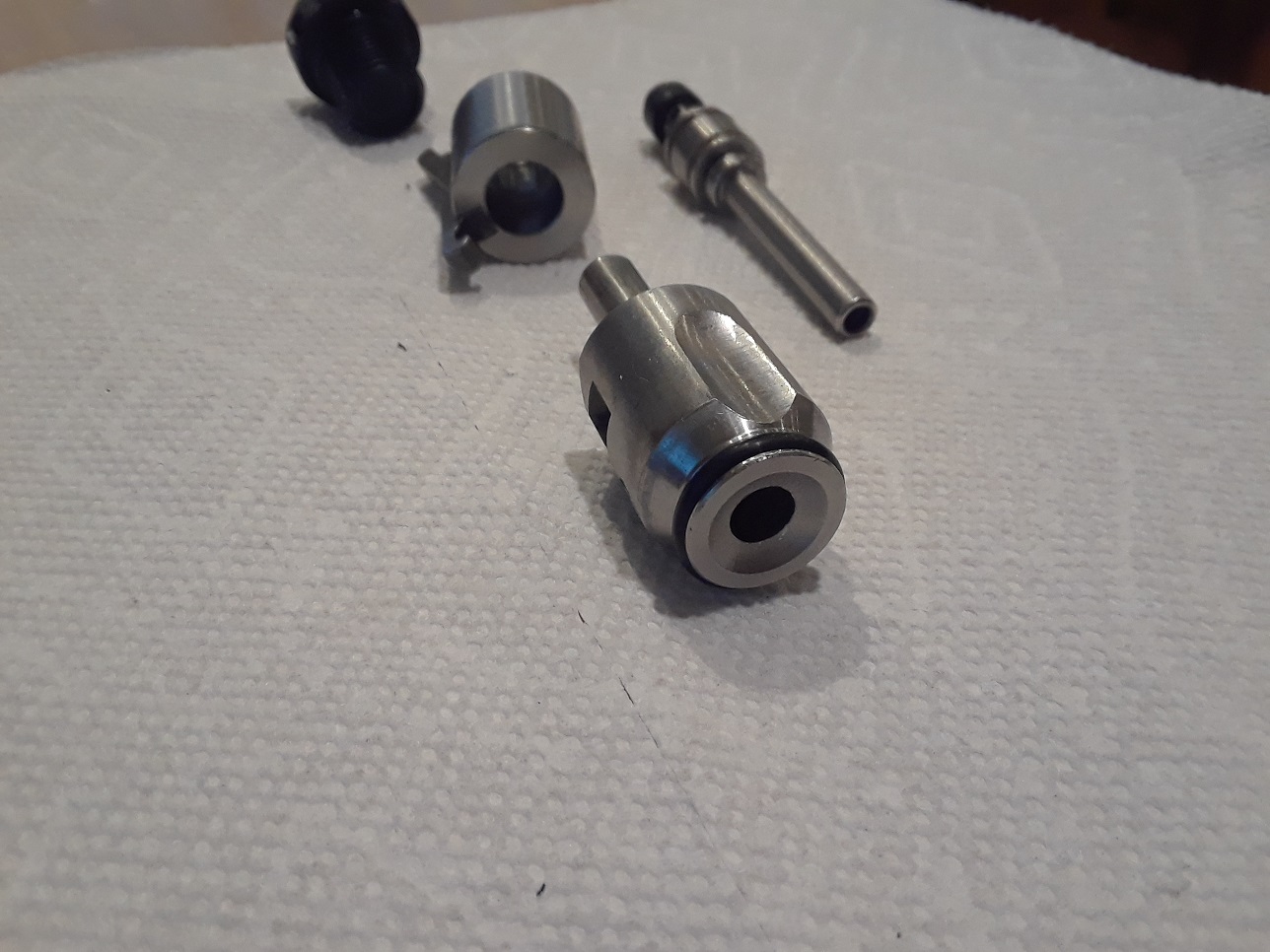

internals group view 1

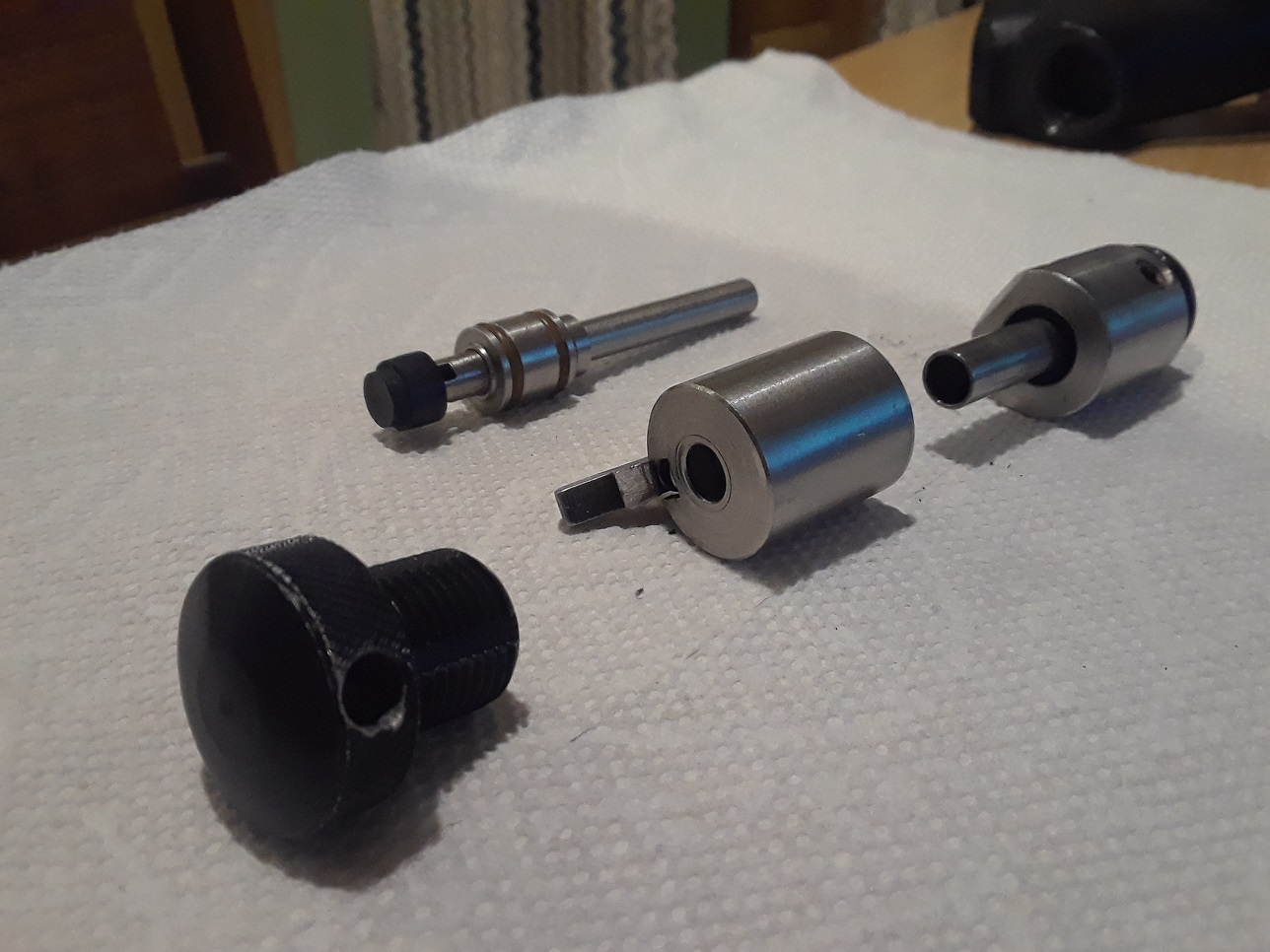

internals group view 2

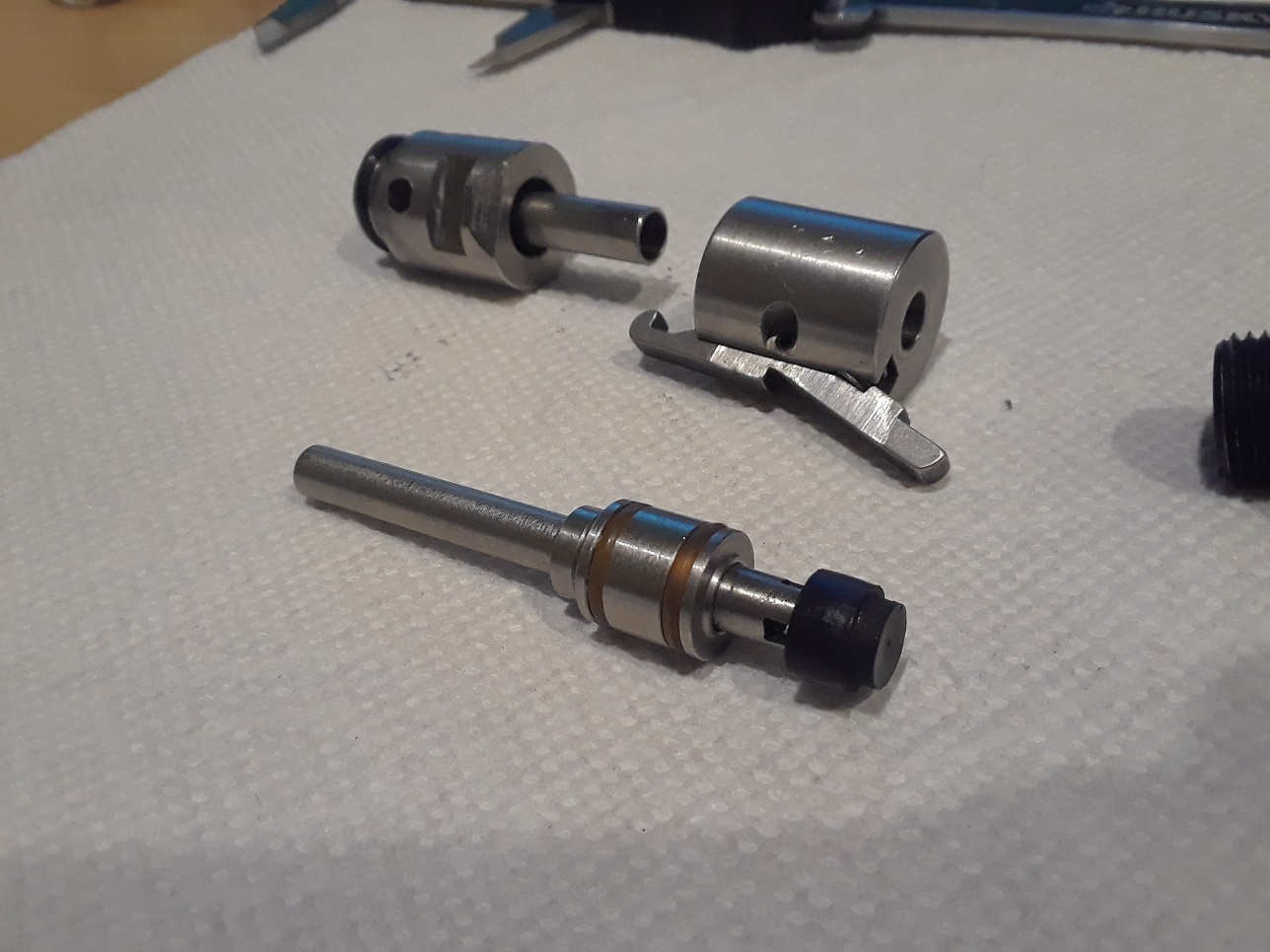

internals group view 3

internals group view 4

cutout in bolt to prevent paintball chops

cutout in bolt to prevent paintball chops

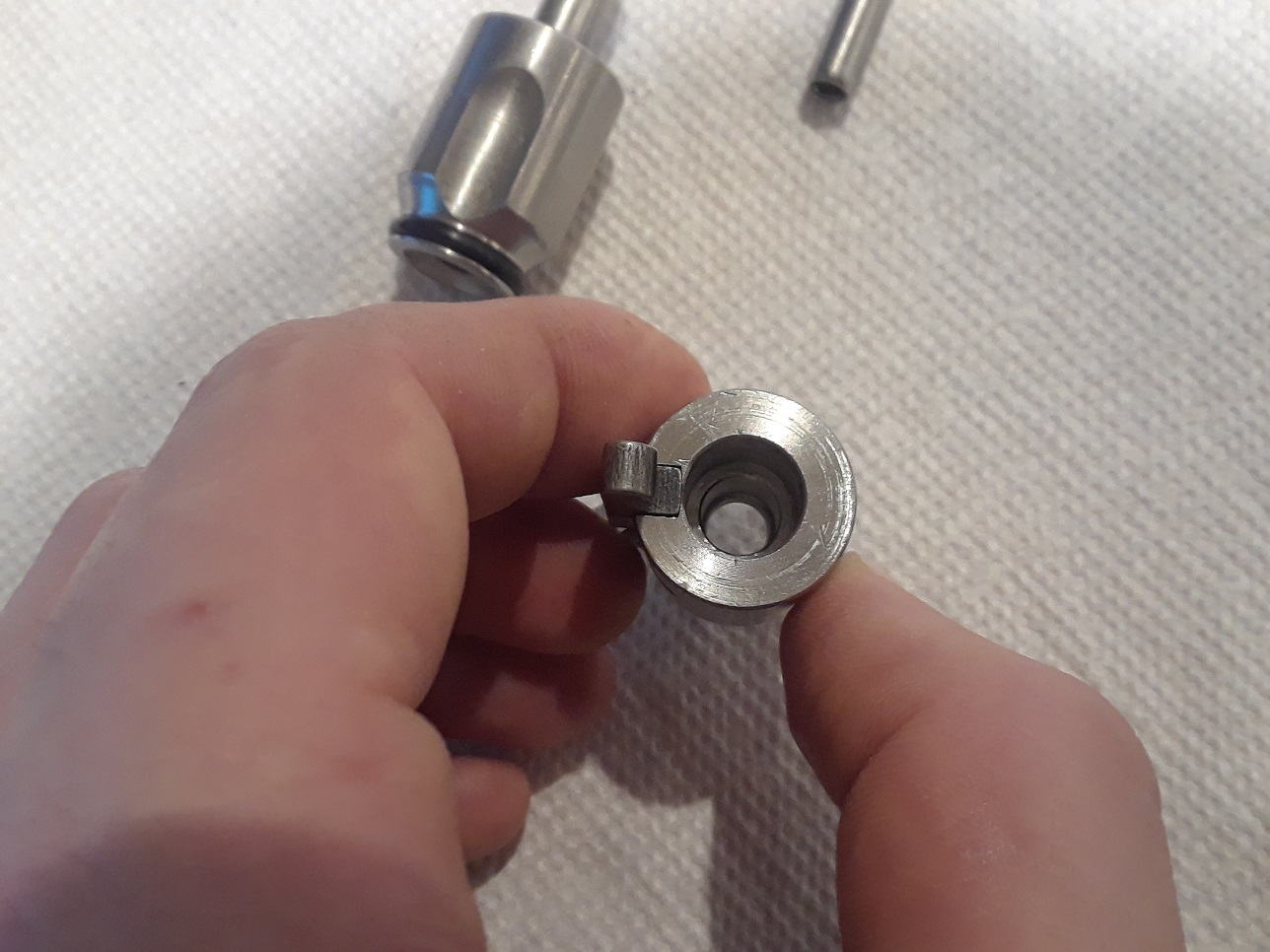

inside the hammer

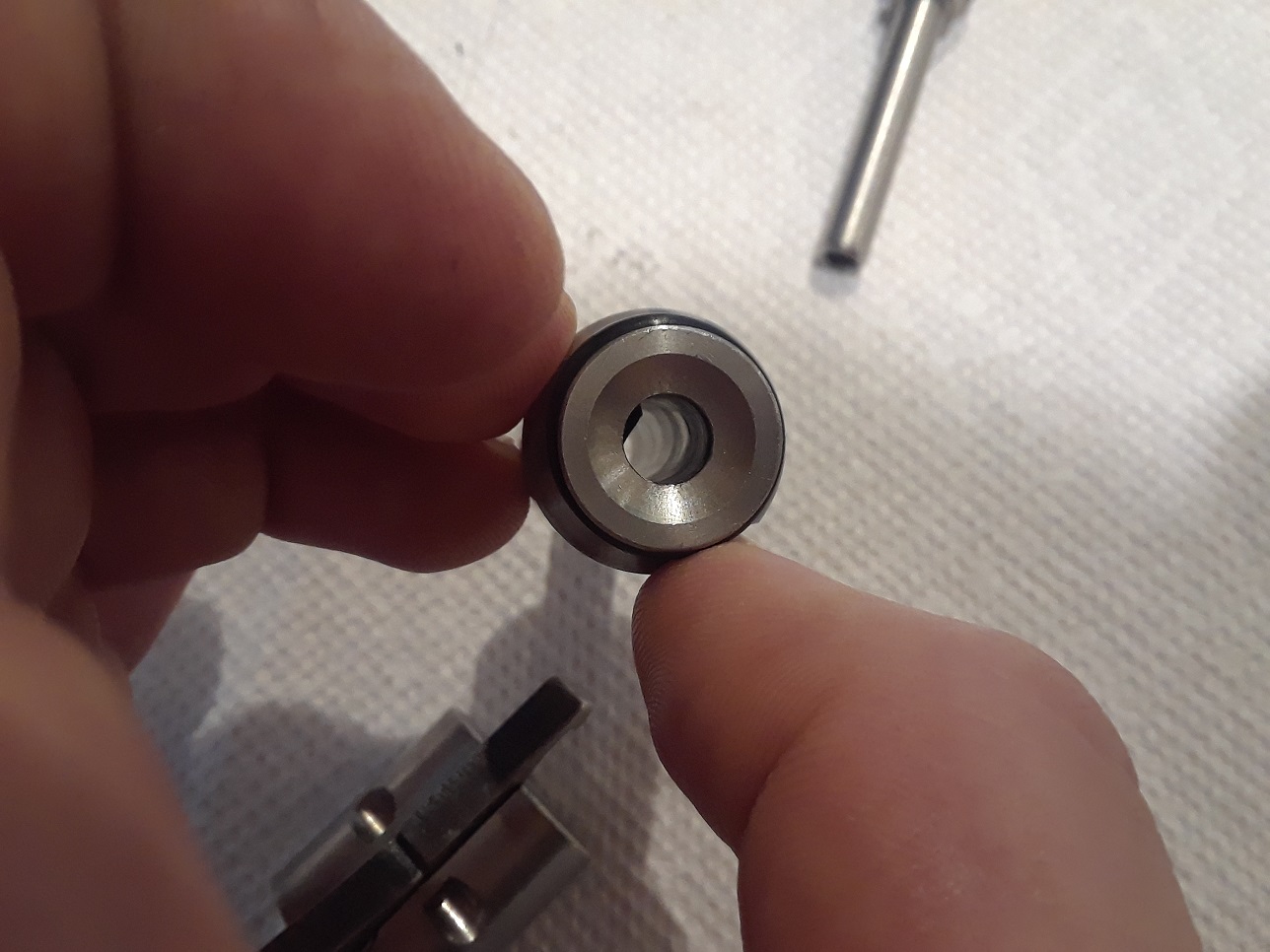

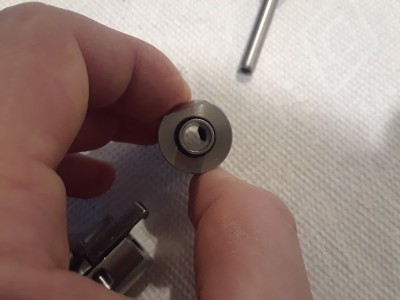

inside the bolt

trying to show that the bolt is made of 2 pieces, very tightly fitted

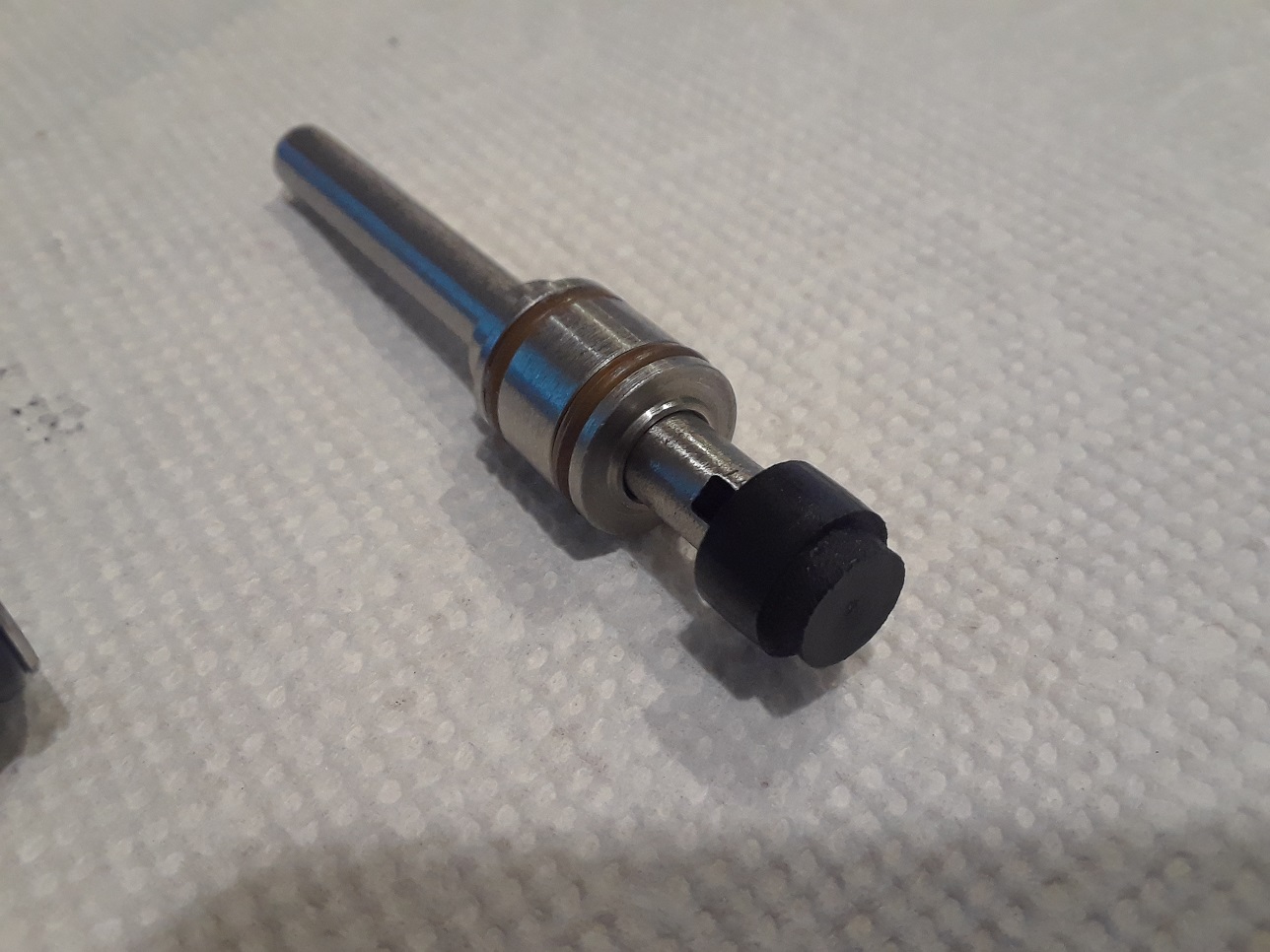

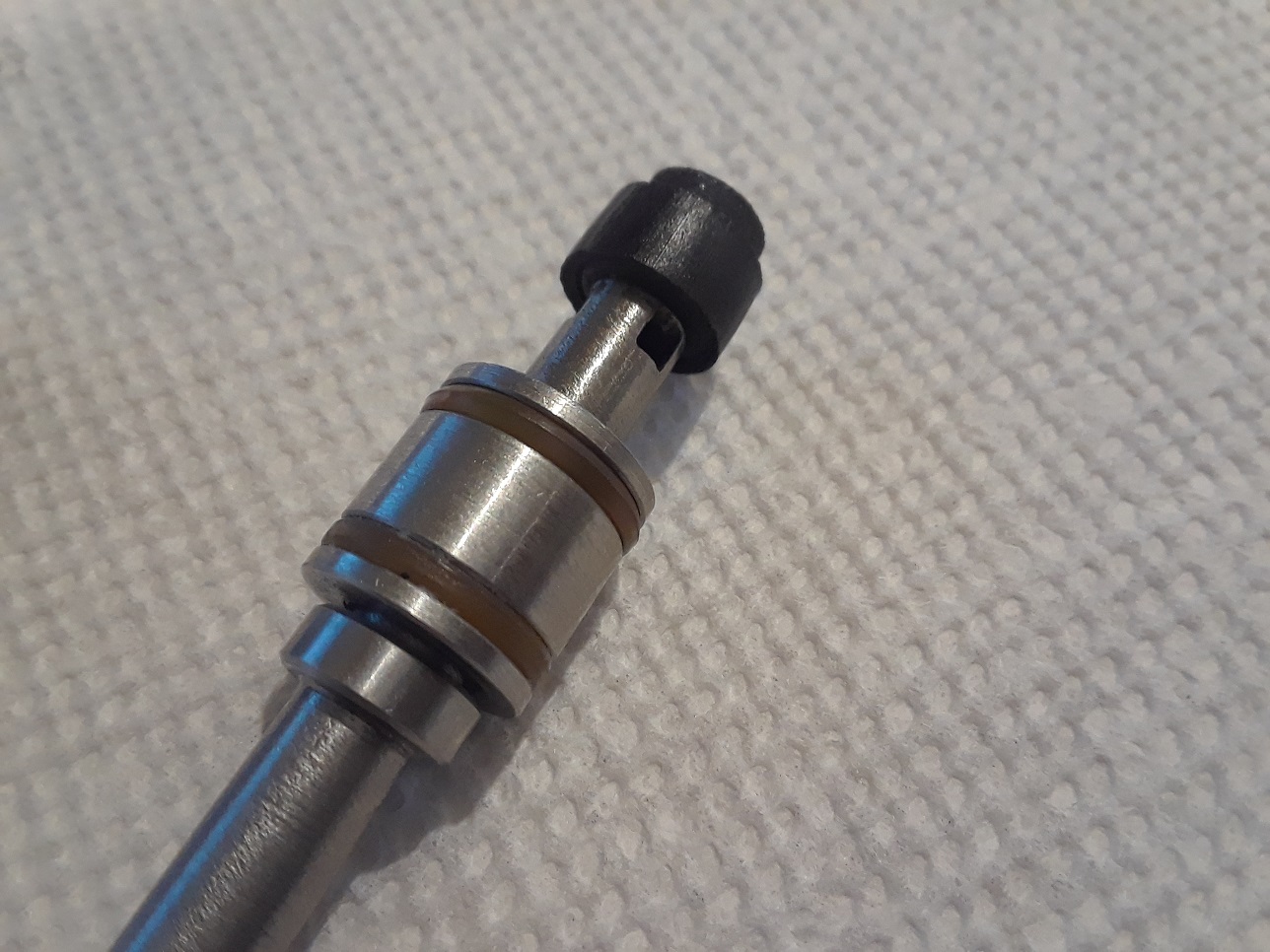

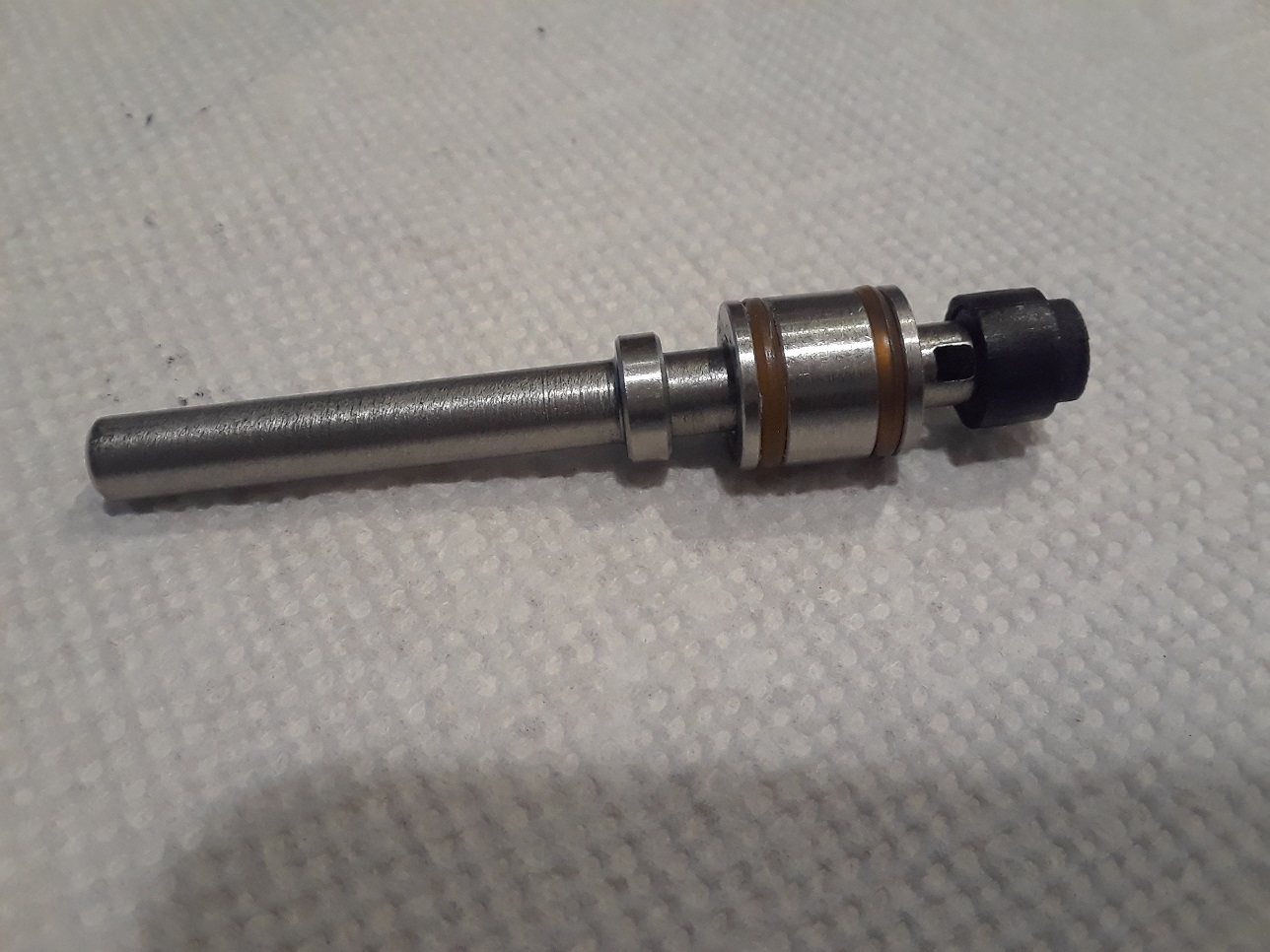

valve closed

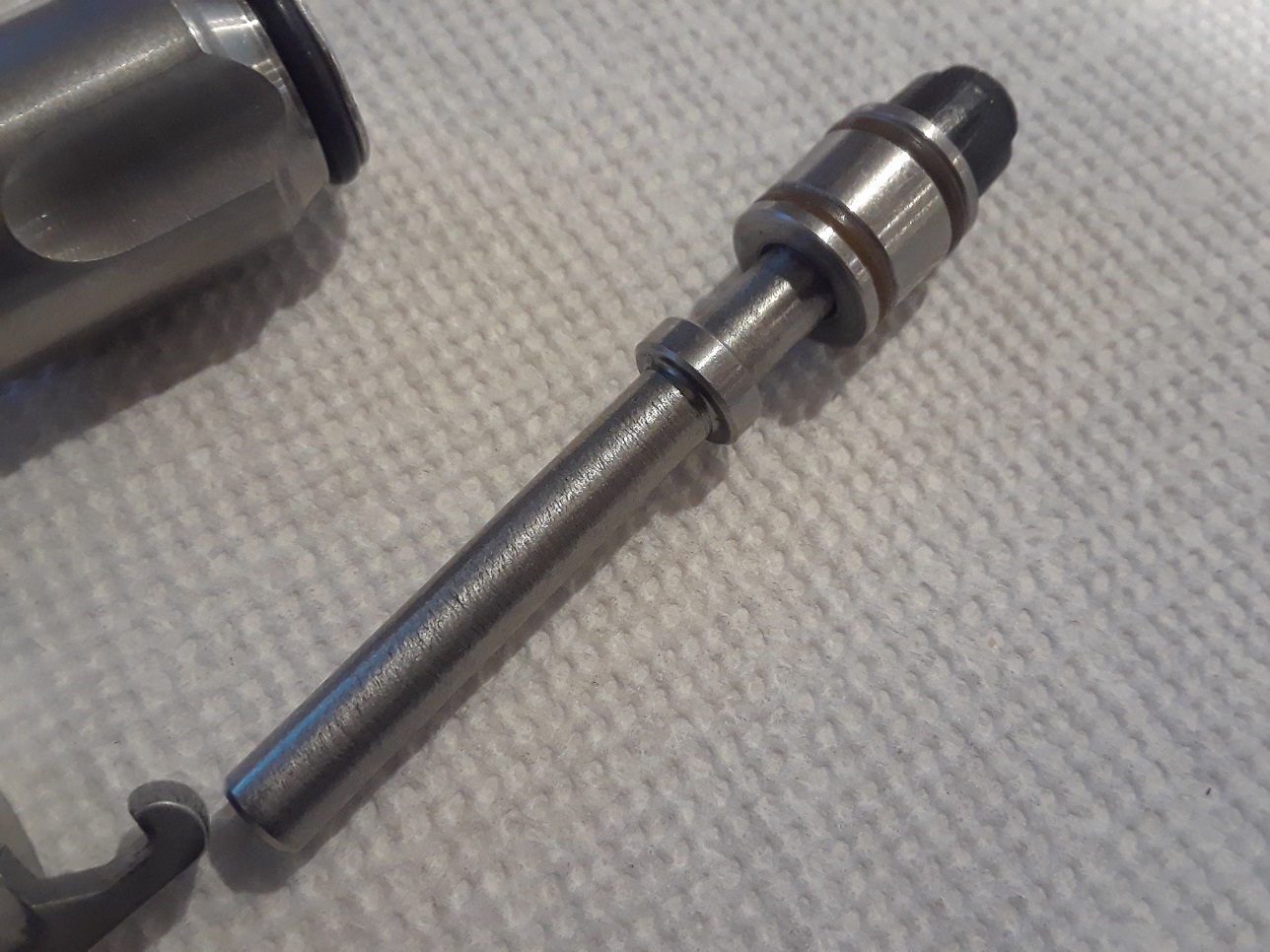

valve open view 1

valve open view 2

valve open view 3

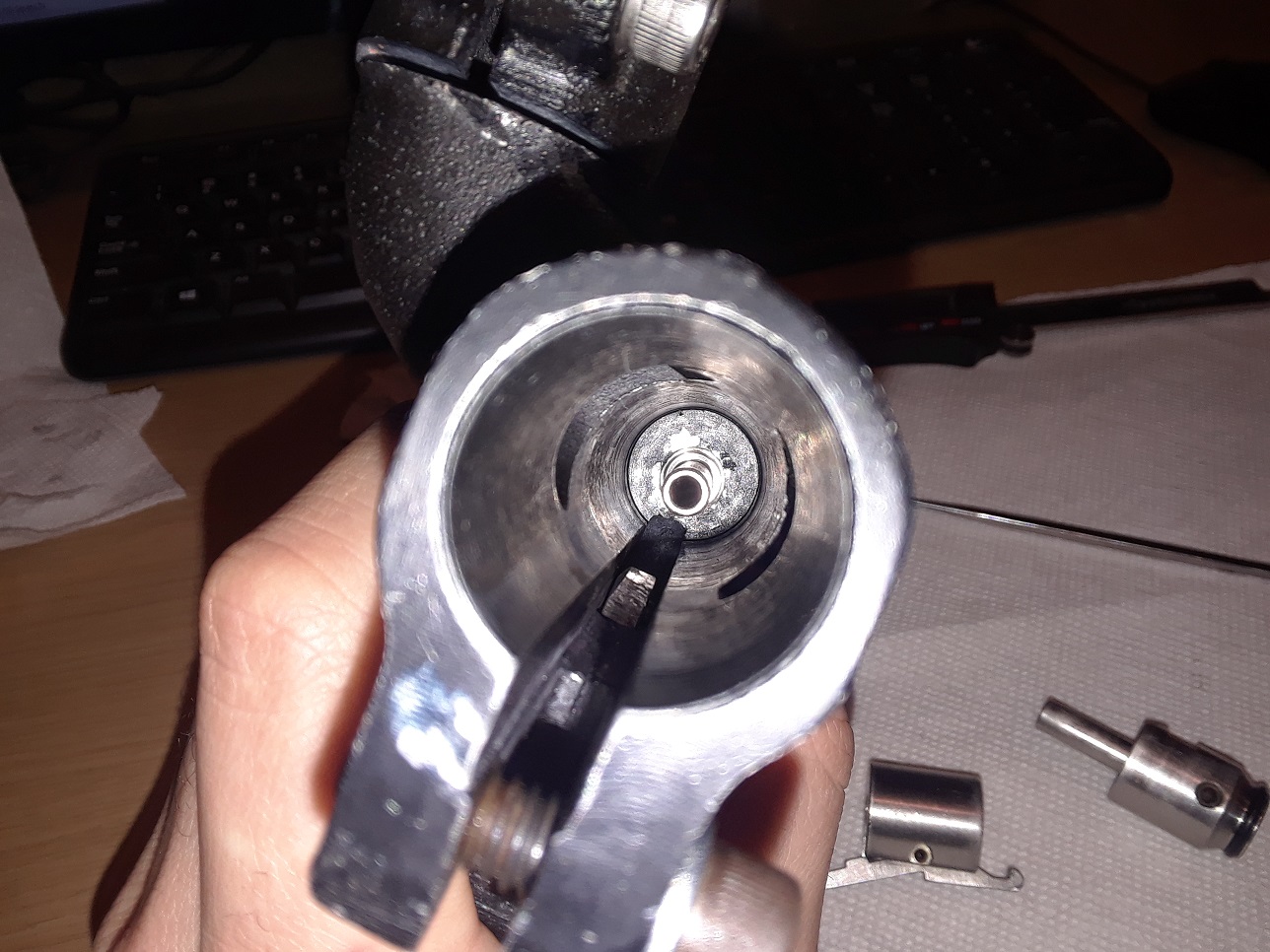

inside body

back side of body. valve housing area

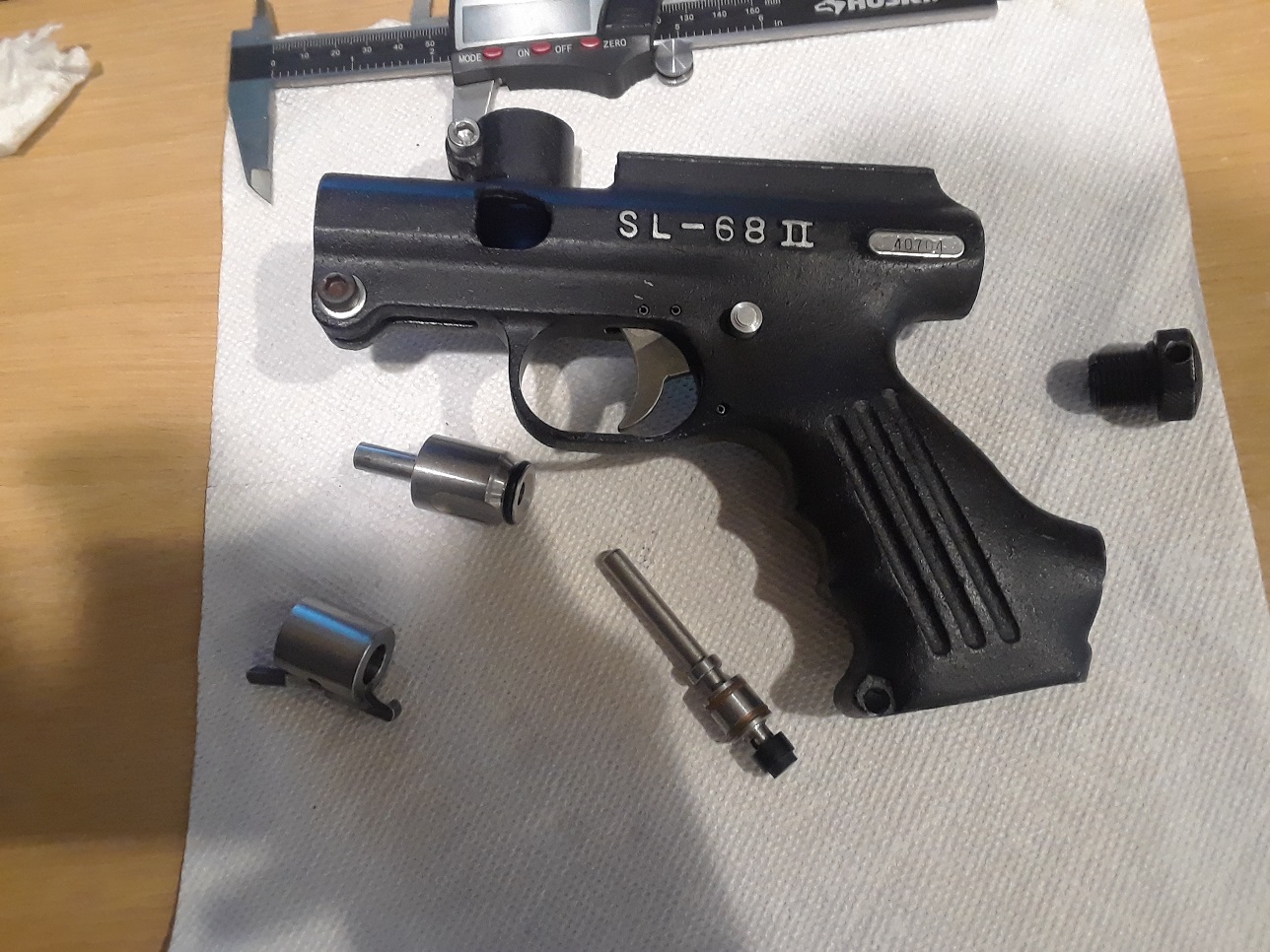

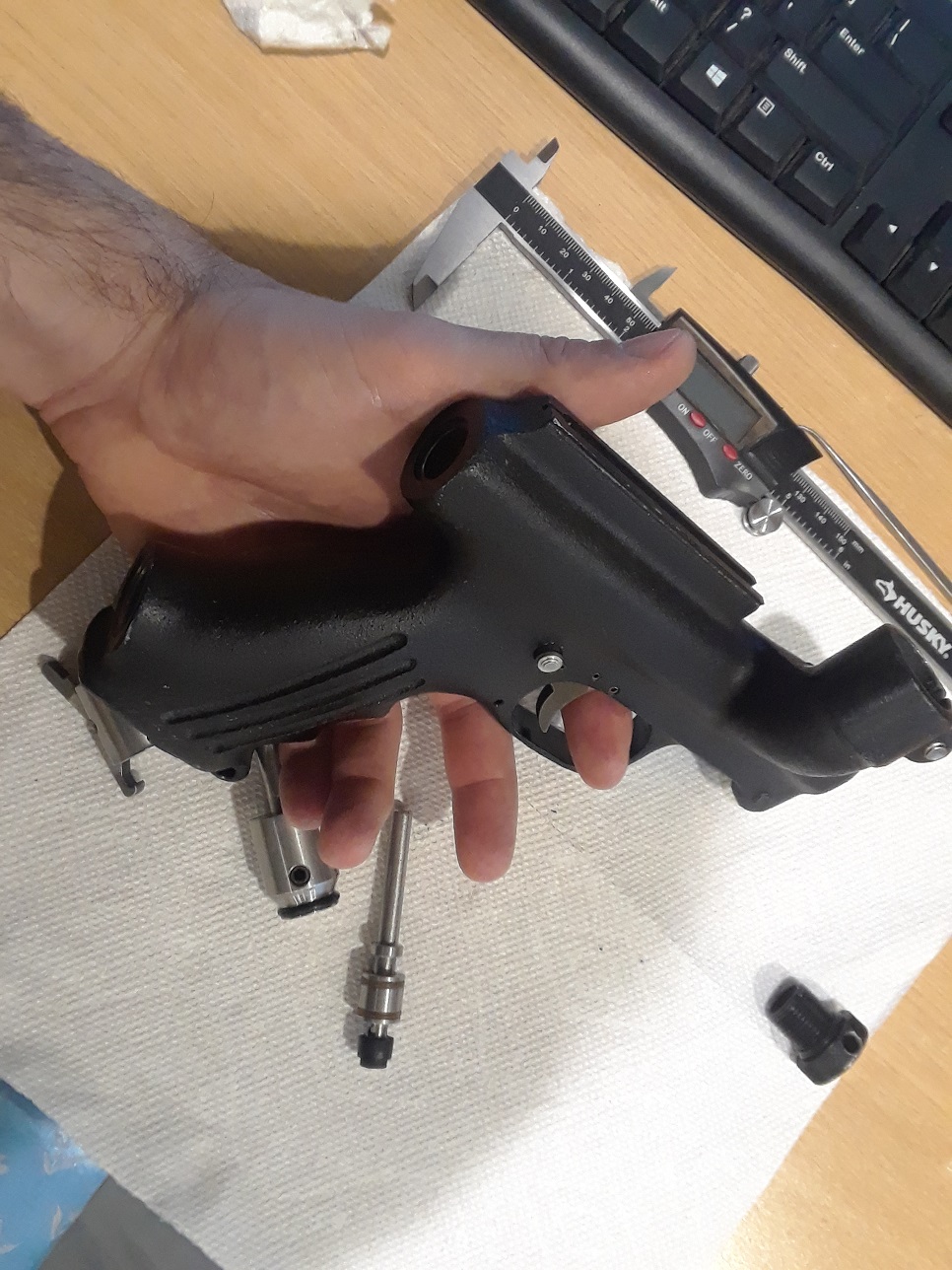

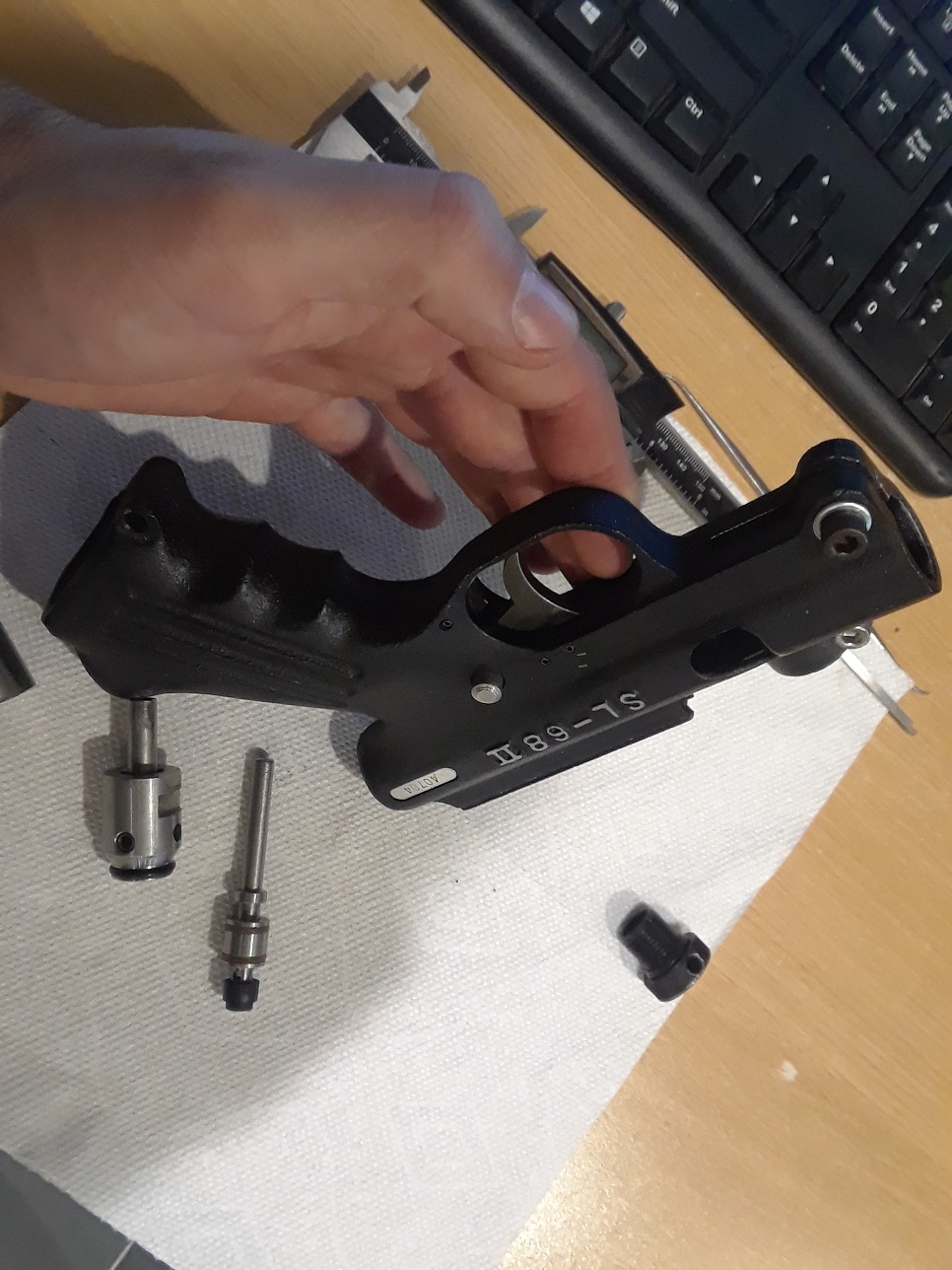

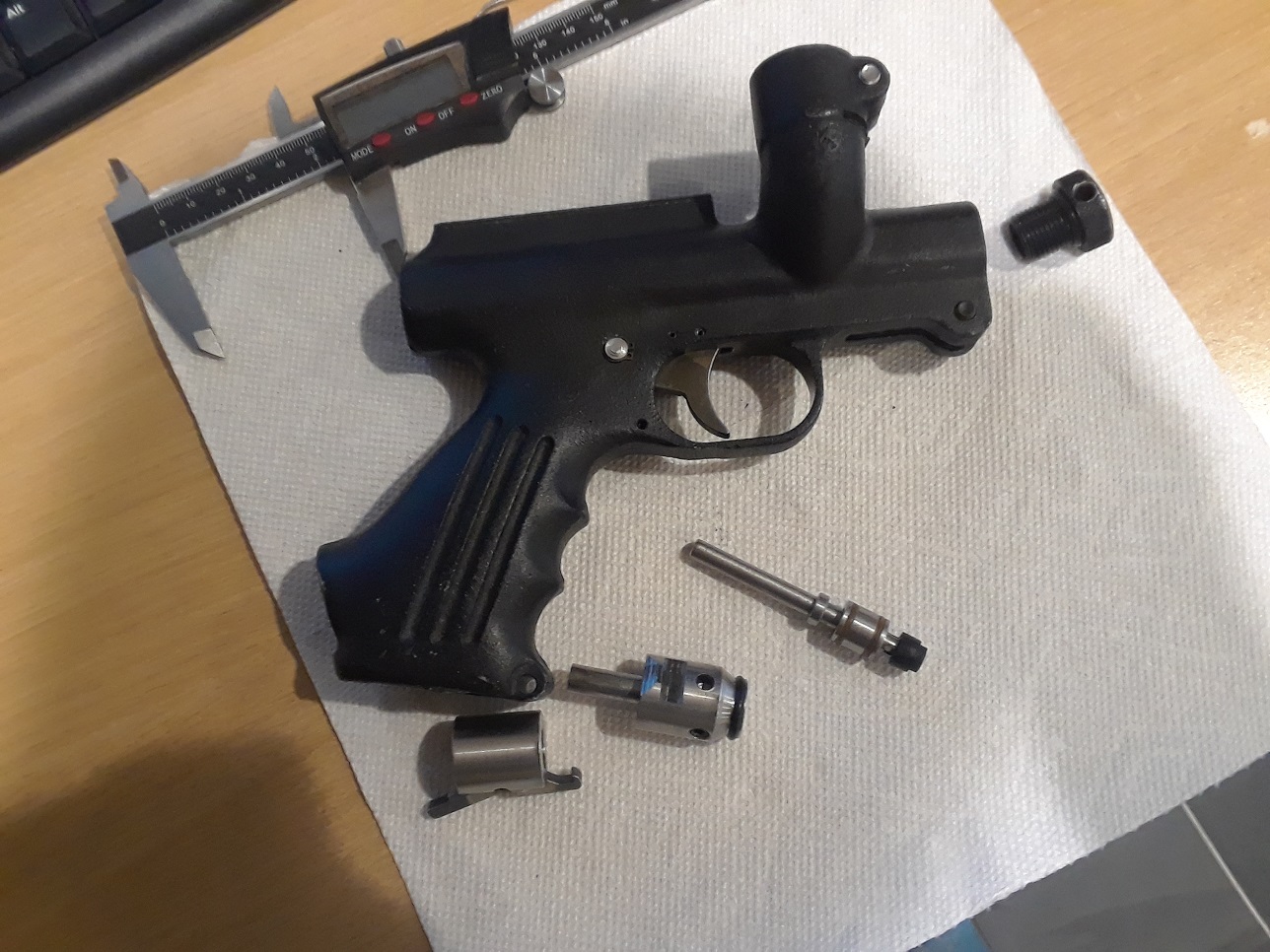

overall view of body and components 1

overall view of body and components 2

overall view of body and components 3

overall view of body and components 4

overall view of body and components 5

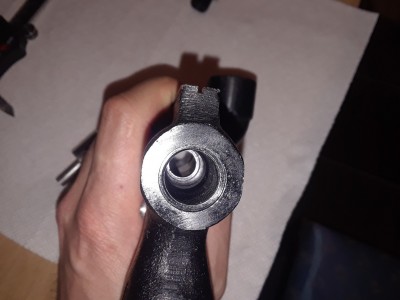

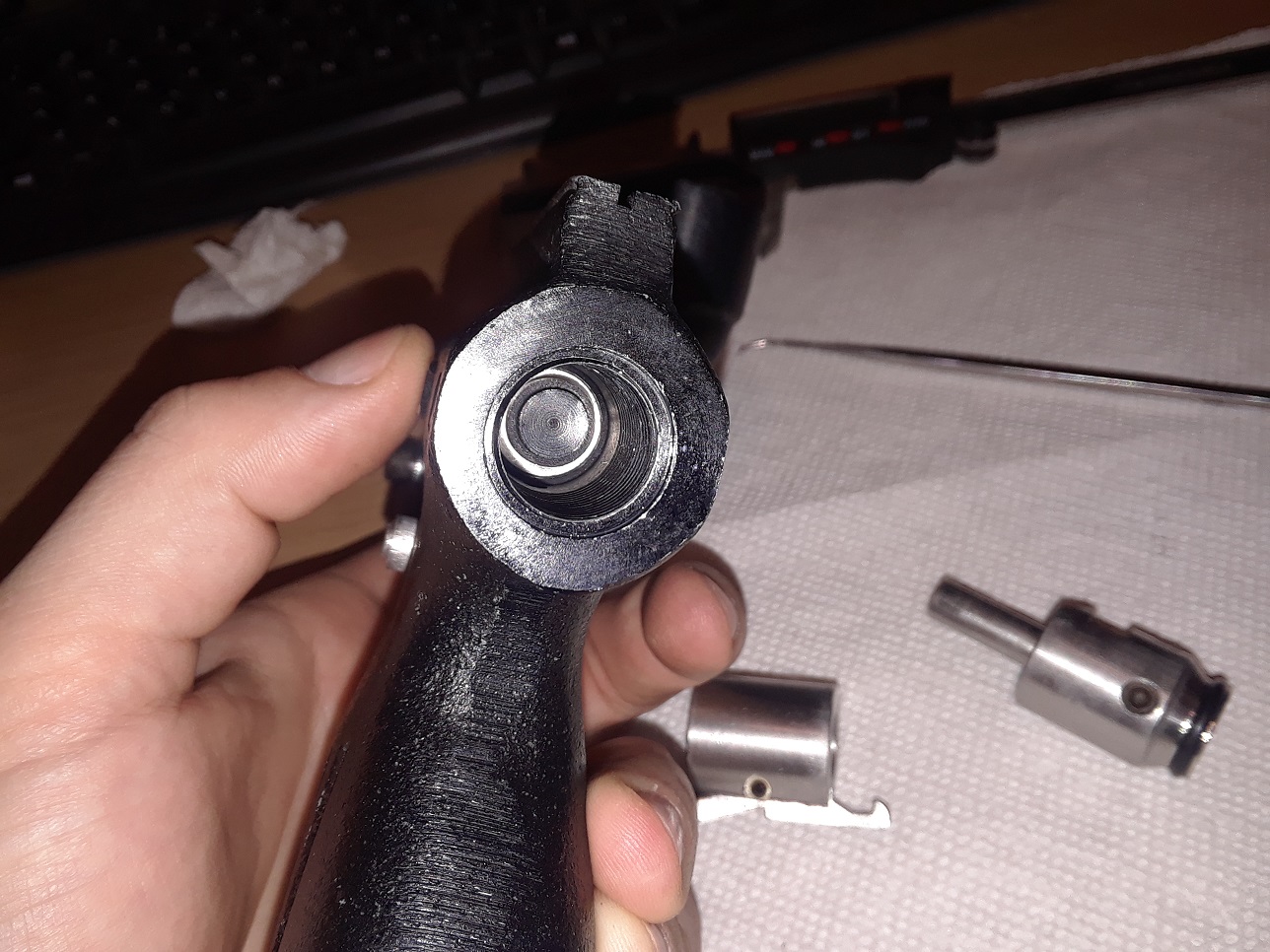

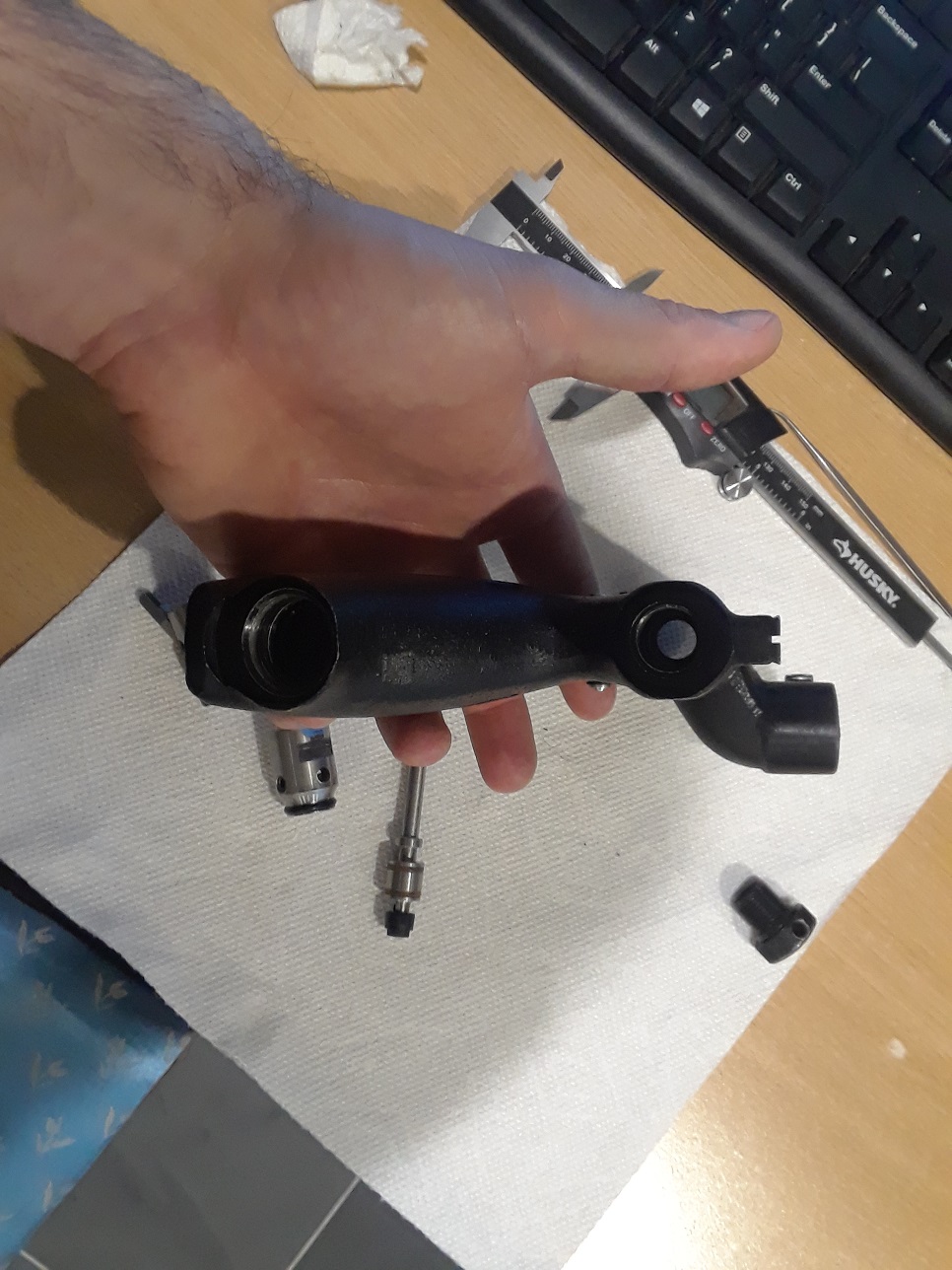

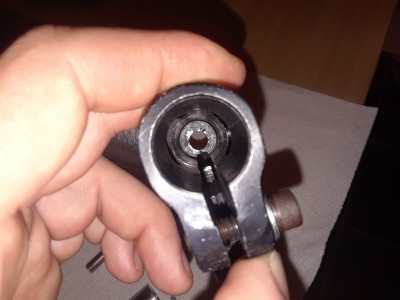

view from back of body with valve installed

view from front of body with valve installed

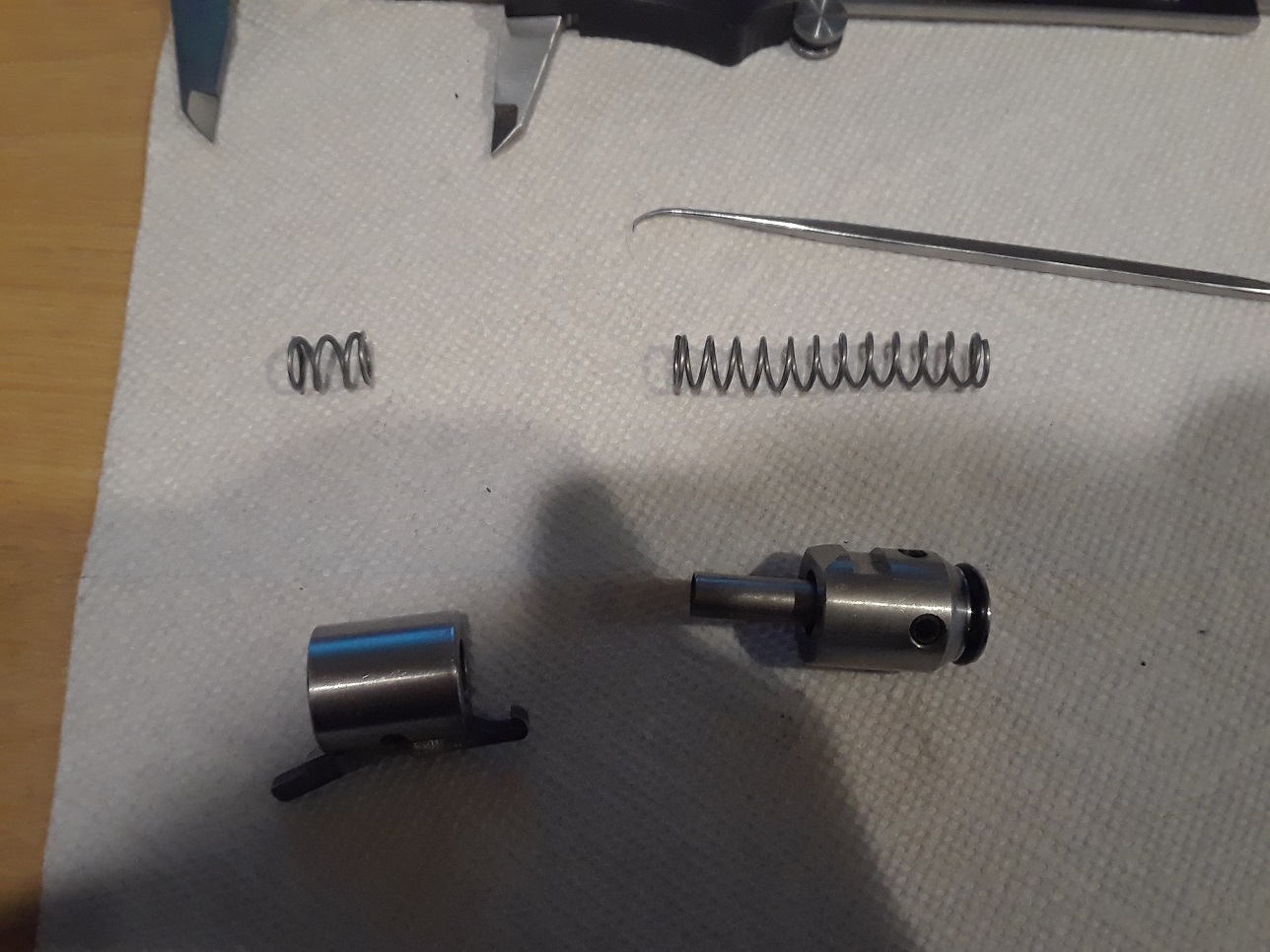

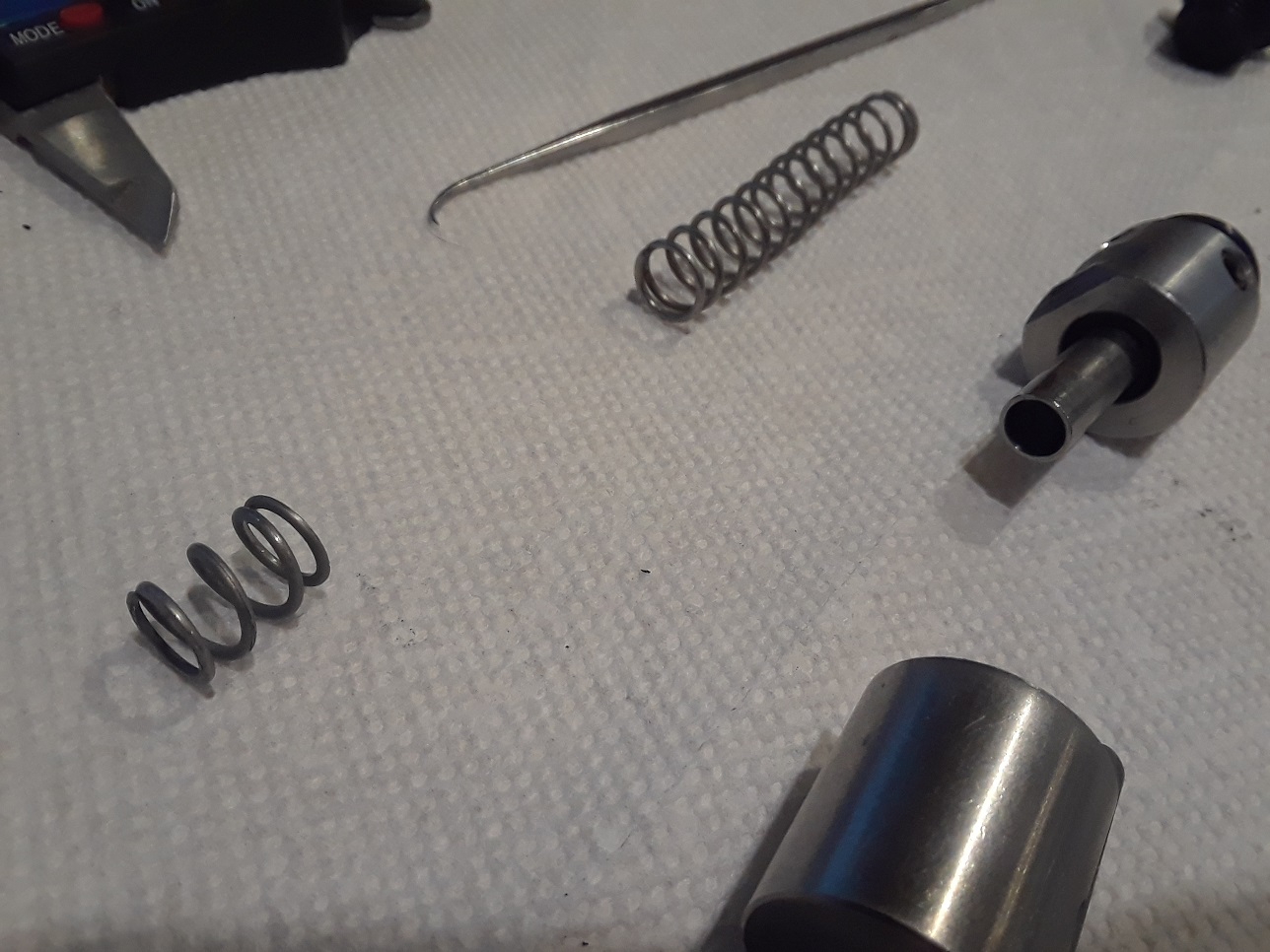

longer spring is for the hammer. shorter spring is for the valve

same springs, different view
