Copper Piston Rifle

[PCGUY]

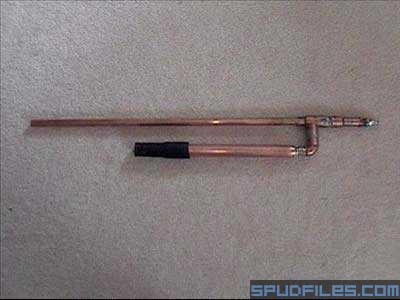

<div align="center">COPPER PISTON RIFLE

Provided By - Spudinator</div>

[syco kilaa]

simple, I like it, but maybe you should have used a bigger chamber

[theexp]

Sweet, Another nice copper gun. Real simple, but i'm guessing effective.

Elegance in simplicity.

[syco kilaa]

I think that someday I should make one of these but instead of making the chamber below the barrel it would just go down some then keep going backwards, sort of like a paintball gun, that way you could have something to balance the weight of the gun with.

[theexp]

? could you draw a pic of the deesign your thinking of?

[spudshot]

if you go with a sprinkler for exhaust the gun is pretty balanced, since you'd probably use metal fittings in the back for the fill valve. you should try a copper piston syko, since the heavier copper pipe can hold past 500psi you can up the pressure quite a bit if you want to

[jalord159]

hi im thinkin of building my gun from copper, one question, how did you make the piston?

[spudshot]

your piston can be very simple, in one of mine the pistol is a piece of wood with rubber epoxied on it, just do what works for you. make sure to have a bumper material and/or a spring to absorb the shock of the piston when it opens

[deathtodeer666]

I just made one of these and after all the horror stories of finding neoprene i looked around my house for an allternative and found a keychain from drivers ed and cut a circle out of it, works really good.

[darkpyro]

im such a nub can some one draw a diagram of how a piston valve works
tnx guys

[CpTn_lAw]

I think that someday I should make one of these but instead of making the chamber below the barrel it would just go down some then keep going backwards, sort of like a paintball gun, that way you could have something to balance the weight of the gun with.

i'm building such a cannon....look for http://www.spudfiles.com/forums/viewtopic.php?t=4083&

[Viper]

Nice cannon, but I agree with most a larger chamber would greatly improve the velocity of the projectile.

[Jedwards]

Could someone please explain or give me a link that explains simply how a pnuematic gun works, and what the "sprinkler valves" and other key parts actually do?
I have made 3 combustions and want to try something with a little more...kick.

[joannaardway]

Jedwards, try the Spud Wiki.

Go to the top of the page, and you'll see an array of buttons.

Click the second down from the top on the right hand side - marked Spud Wiki.

Click on Pneumatic cannons, and read around, then come back.

If you are just too lazy to find the link at the top of the page:

OMG, There's one here!

[Dan003400]

it is nice what is the piston?
