This is my latest and greatest
4" pipe with 2.5" barrel
ignore the white part- its just my filling rig
soon to come CO2 tank and handle/trigger assembly
Attachments

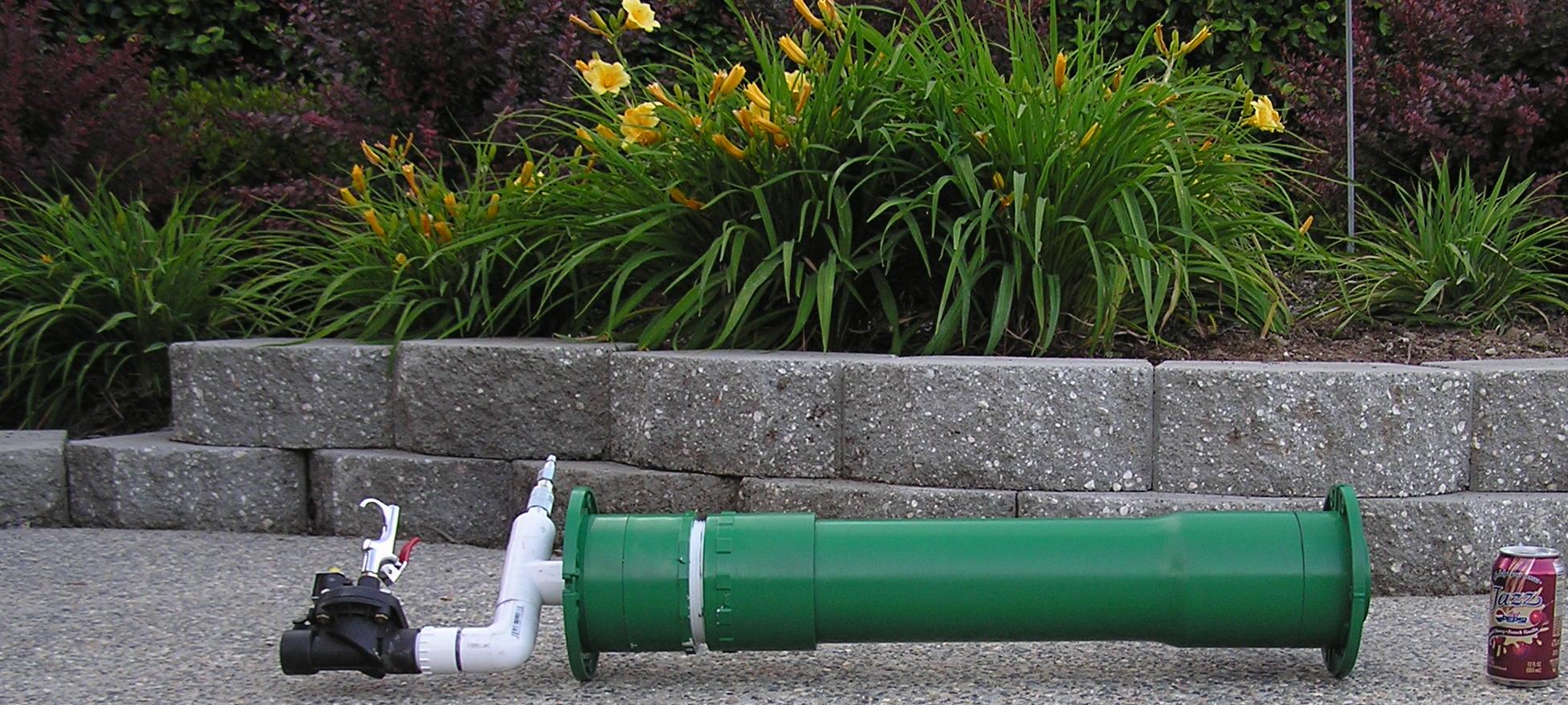

Gun compared to a soda can, like the toilet flanges?
Gun compared to a soda can, like the toilet flanges?

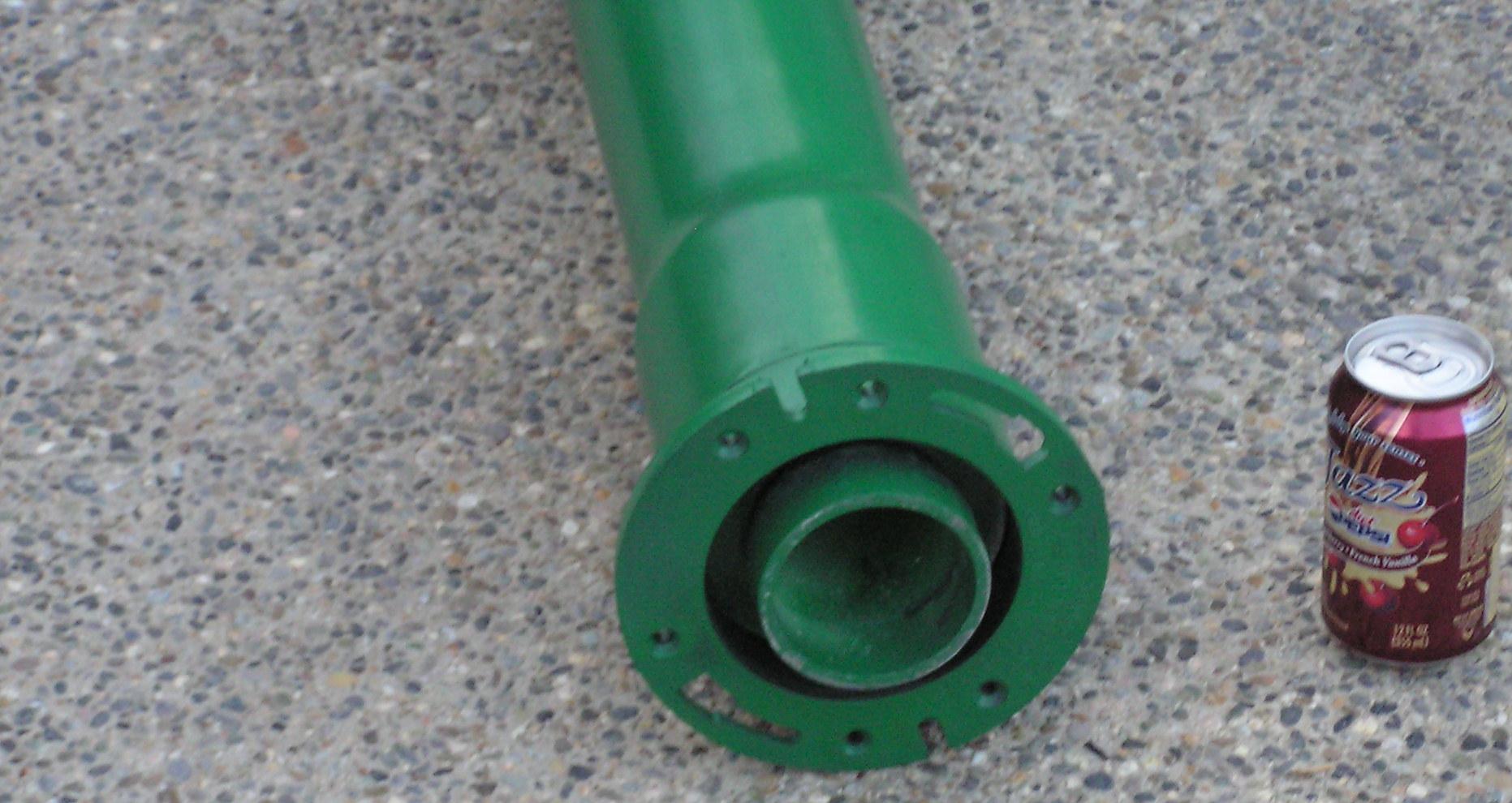

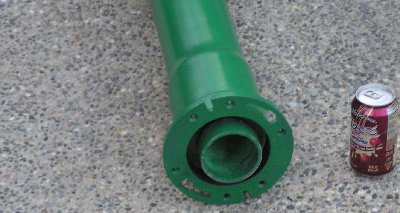

2.5 inch with bell to compact ammo
2.5 inch with bell to compact ammo

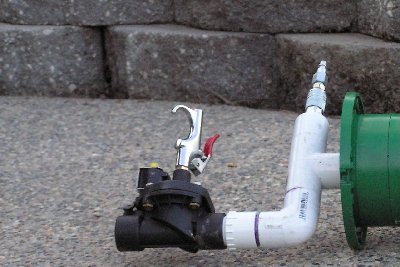

My Filling assebly
My Filling assebly

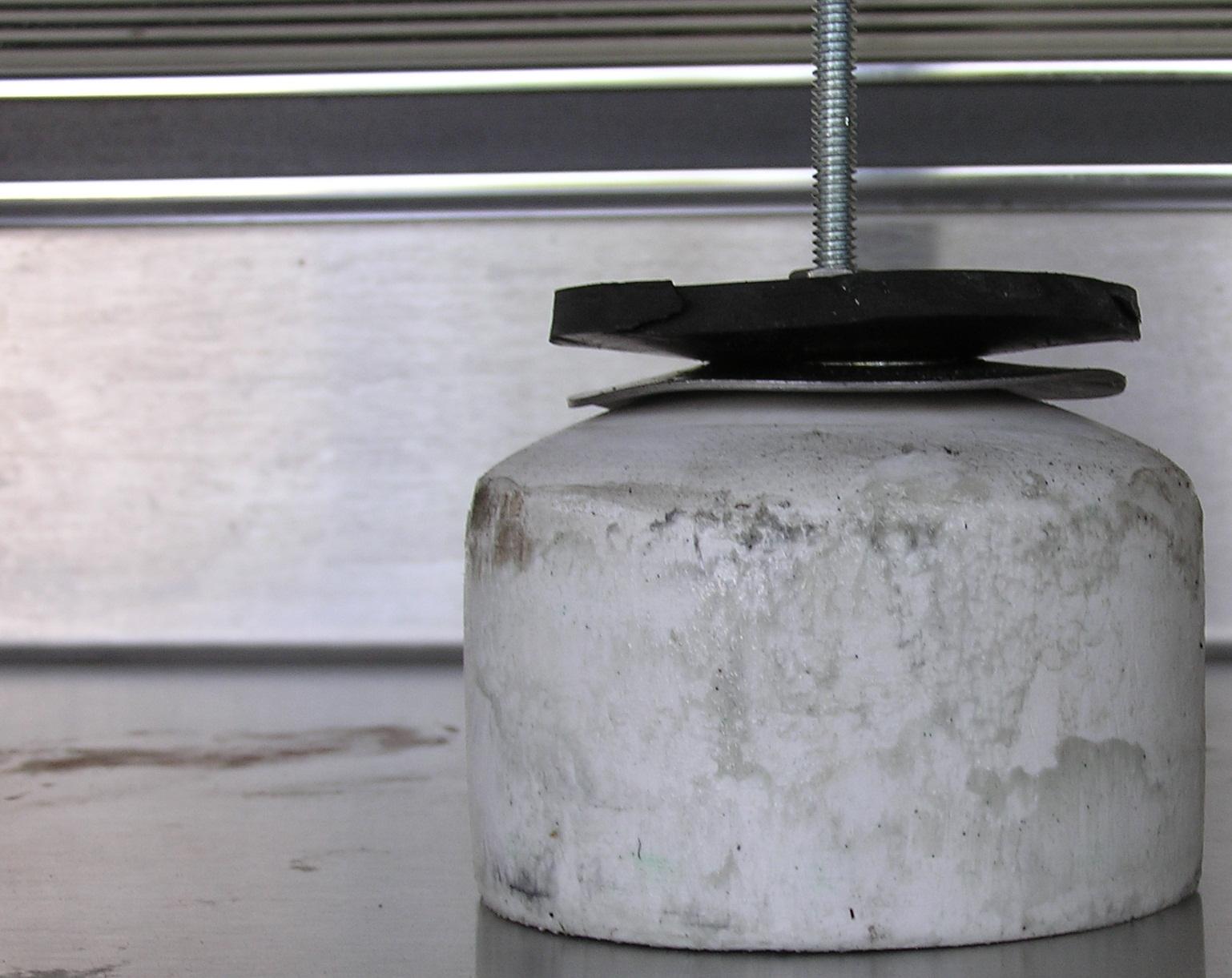

here is the washer under the rubber
here is the washer under the rubber

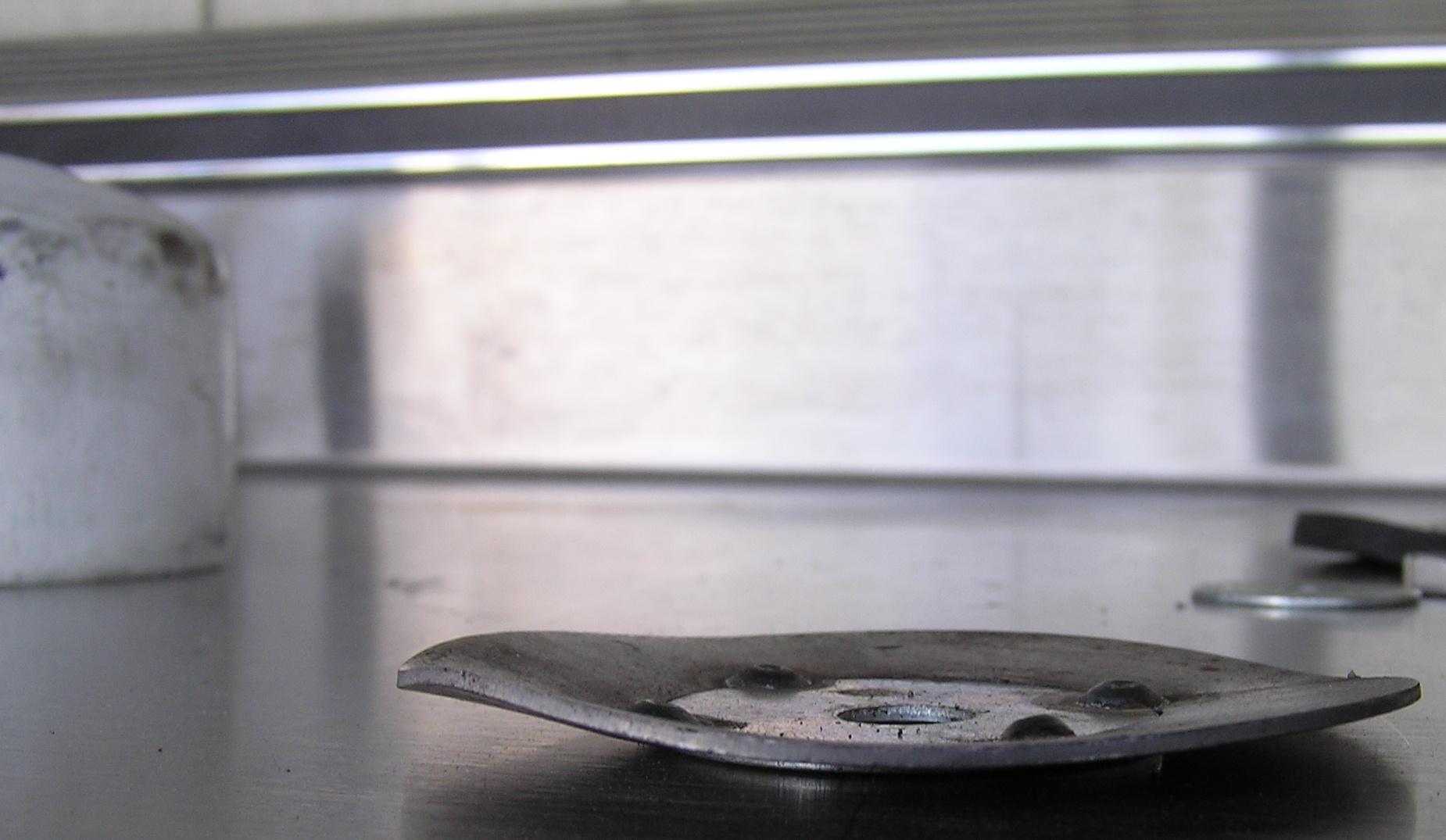

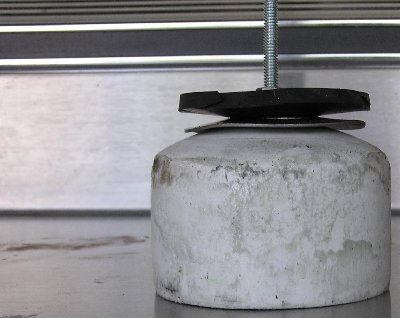

first piston bent- look closely
first piston bent- look closely
