My first cannon, mini pill bottle

Boom! The classic potato gun harnesses the combustion of flammable vapor.
User avatar
KingPow
Private
Private
Posts: 9
Joined: Tue Sep 27, 2005 2:44 pm
Location: MS

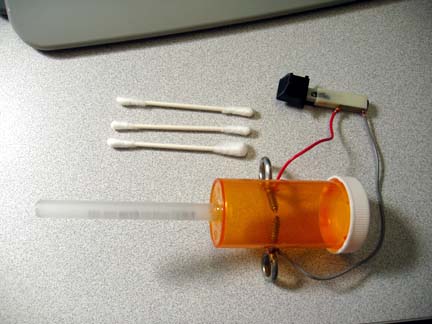

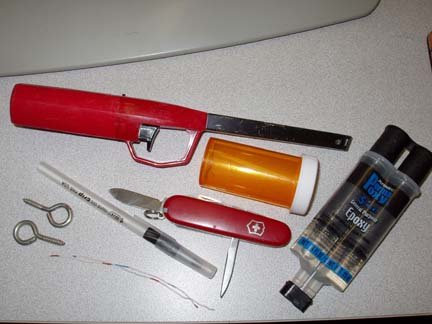

A friend of mine recently turned me on to the whole spud gun thing. After seeing everyone else's creations I have been itching to build my own. I don't have a ton of hardware lying around, and I wanted to get something going now, so I decided a mini pill bottle cannon would be a good shooter to start with. I put this thing together in less than an hour (had to wait for the epoxy to dry). I based it on PCGUY's pill shooter with my own modifications. I used a clear 2" pill bottle, a clear pen cylinder, two of those little hook screws used for hanging things, and a clicker and wires out of one of those long click lighters. It's very basic, but quick and very easy to make.
However I am having trouble getting the fuel to ignite. With the clear tube I can monitor the mechanics inside the chamber, and I can see that I am getting a good spark, but still no bang. As fuel I have used WD-40 and I have used Starting Fluid (aka. Diethyl Ether), but still no luck. Any advice? :?
Here's the pics...
Attachments
1mini pill shooter1a.JPG
spudshot
Sergeant
Sergeant
Posts: 1036
Joined: Sun Oct 03, 2004 7:16 am

WD 40 no longer has ingredients to make it a good fuel, starting fluid floods so easy its even hard to get to work in normal sized cannons
User avatar
KingPow
Private
Private
Posts: 9
Joined: Tue Sep 27, 2005 2:44 pm
Location: MS

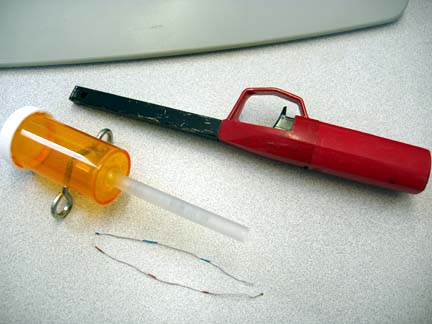

more...
Attachments
1mini pill shooter1b.JPG
1mini pill shooter1c.JPG
1mini pill shooter1d.JPG
User avatar
KingPow
Private
Private
Posts: 9
Joined: Tue Sep 27, 2005 2:44 pm
Location: MS

Any advice on how to get a good mix?
User avatar
Bedo
Private 2
Private 2
Posts: 38
Joined: Thu Aug 18, 2005 11:47 pm

one spritz of binacca and your good to go :wink:
User avatar
KingPow
Private
Private
Posts: 9
Joined: Tue Sep 27, 2005 2:44 pm
Location: MS

Bedo wrote:one spritz of binacca and your good to go :wink:
Excuse my ignorance, but what is binacca?
spudshot
Sergeant
Sergeant
Posts: 1036
Joined: Sun Oct 03, 2004 7:16 am

its a breath freshener, it comes in little tiny spray bottles
User avatar
saladtossser
Sergeant 3
Sergeant 3
Posts: 1234
Joined: Sat Mar 26, 2005 10:40 am
Location: Toronto
Contact:

u have that lighter right? use the butane from it, a second or two.
"whoa... I thought pimpmann was black..."-pyromanic13
User avatar
KingPow
Private
Private
Posts: 9
Joined: Tue Sep 27, 2005 2:44 pm
Location: MS

Ok, I'll try the butane. Man, I've tried isopropanyl, cologne, and a few other things but still no bang. I'm only giving it one spritz into the chamber. Should I let it evaporate a little before closing the chamber or should I close it immediately after adding the fuel?
User avatar
CS
Moderator
Moderator
Posts: 1837
Joined: Fri Feb 18, 2005 5:32 pm
Location: Southern Utah

King Pow nice mini. I like how everything is clear. Hope it will work for you, it would be disapointing if such a nice gun didnt fire. If your using liquids let it evoperate a little but if your using butane screw the lid on as soon as you are done injecting the fuel.
User avatar
KingPow
Private
Private
Posts: 9
Joined: Tue Sep 27, 2005 2:44 pm
Location: MS

:? I don't get where I've gone wrong. I'd hate to just toss it, but I've tried everything I can get my hands on, and it still won't fire. Butane, BlowOff (butane & propane), ice remover (isopropanyl), etc...
I still haven't tried the banacca, but with the poor luck I'm having with all the other stuff it may just be a waste of time. or is it???
Man, I really want this thing to fire. I'm sure it would be a sweet little night shooter. :)
Attachments
User avatar
KingPow
Private
Private
Posts: 9
Joined: Tue Sep 27, 2005 2:44 pm
Location: MS

AH HA!! I tried the Banacca and IT WORKS! :D Being transparent, when it fires the whole thing lights up in a bright yellow glow! Thanks Bedo! My breath is minty fresh too! 8)
User avatar
julz
Specialist
Specialist
Posts: 178
Joined: Mon Apr 18, 2005 12:54 am
Location: australia

sweet, i'd love to see this thing lit up, great stuff! :) whats the range? etc? is ur ammo just those ear things?
User avatar
KingPow
Private
Private
Posts: 9
Joined: Tue Sep 27, 2005 2:44 pm
Location: MS

julz wrote:sweet, i'd love to see this thing lit up, great stuff! :) whats the range? etc? is ur ammo just those ear things?
So far I have only tried shooting a few things. Q-tips, spit balls, rubber erasers out of the end of pencils, small rocks... :lol:
The range on the q-tips is about 50 feet. Everything else I have shot I have no idea. They fly so far and fast I have not been able to find them!
I have been shooting this thing so much I have worn the clicker out. Time to get a new one.
I'll be working on a full size cannon very soon. :D
joemama
Private 4
Private 4
Posts: 70
Joined: Tue Sep 13, 2005 6:47 pm

use oust it works but it floods some times
