Single shot airsoft

Building or modifying BB, Airsoft, and Pellet type of guns. Show off your custom designs, find tips and other discussion. Target practice only!
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Sun Jul 09, 2017 3:15 pm

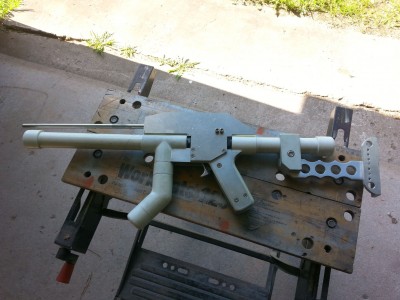

Making a new post for my airsoft project, progressing slowly but surely, bit of assembly work this afternoon in the workshop.
66 (1).jpg
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Wed Jul 12, 2017 7:16 pm

As usual I had a change of plan, ditched the burst fire, going for single shot, as I originally intended. Found a sweet piece of pre-drilled 20mm round bar which I opened up to 10mm ID in the drill press, (oh for a lathe)

Bolt open (no hole in barrel yet)
77 (1).jpg

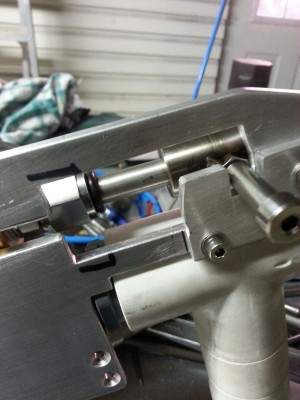

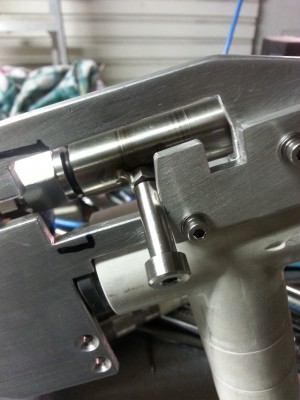

Closed, locking ramp puts pressure on O ring as I want the barrel hole close to the end, the plate fixing bolts are in slots so I can adjust the pressure on the Oring
77 (2).jpg
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25658
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 20 times
Been thanked: 8 times

Donating Members

Thu Jul 13, 2017 4:02 am

Do you plan to use this for airsoft games or is it just for hole punching?
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Thu Jul 13, 2017 4:31 am

Just for fun
User avatar
Cthulhu
Specialist
Specialist
Posts: 190
Joined: Wed Apr 12, 2017 7:07 pm
Location: South Texas

Thu Jul 13, 2017 5:31 am

This is much more advanced than the single shot airsoft guns my buddies and I made back in the day!

We used to use 100mL syringes with a pipe epoxied to the nozzle and a bunch of rubber bands attached to the plunger to replicate Muskets.
Push an airsoft bb with a wad down the barrel, pull back the plunger and poof!
This weapon serves to silence the noisy speakers of the stupid of the other street! (joke) -Hectmarr
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Fri Jul 14, 2017 6:03 pm

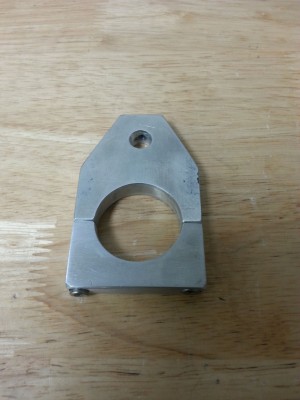

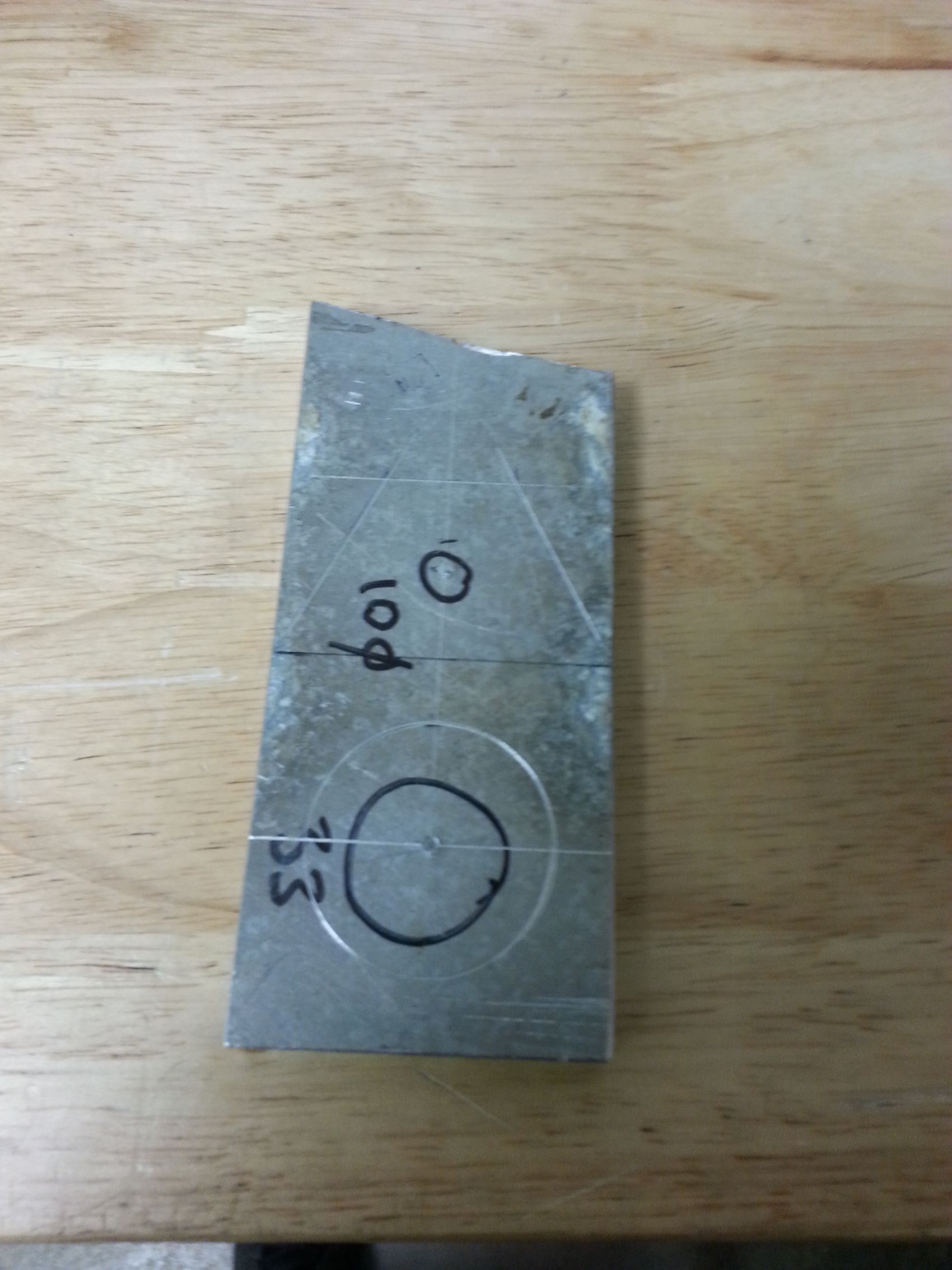

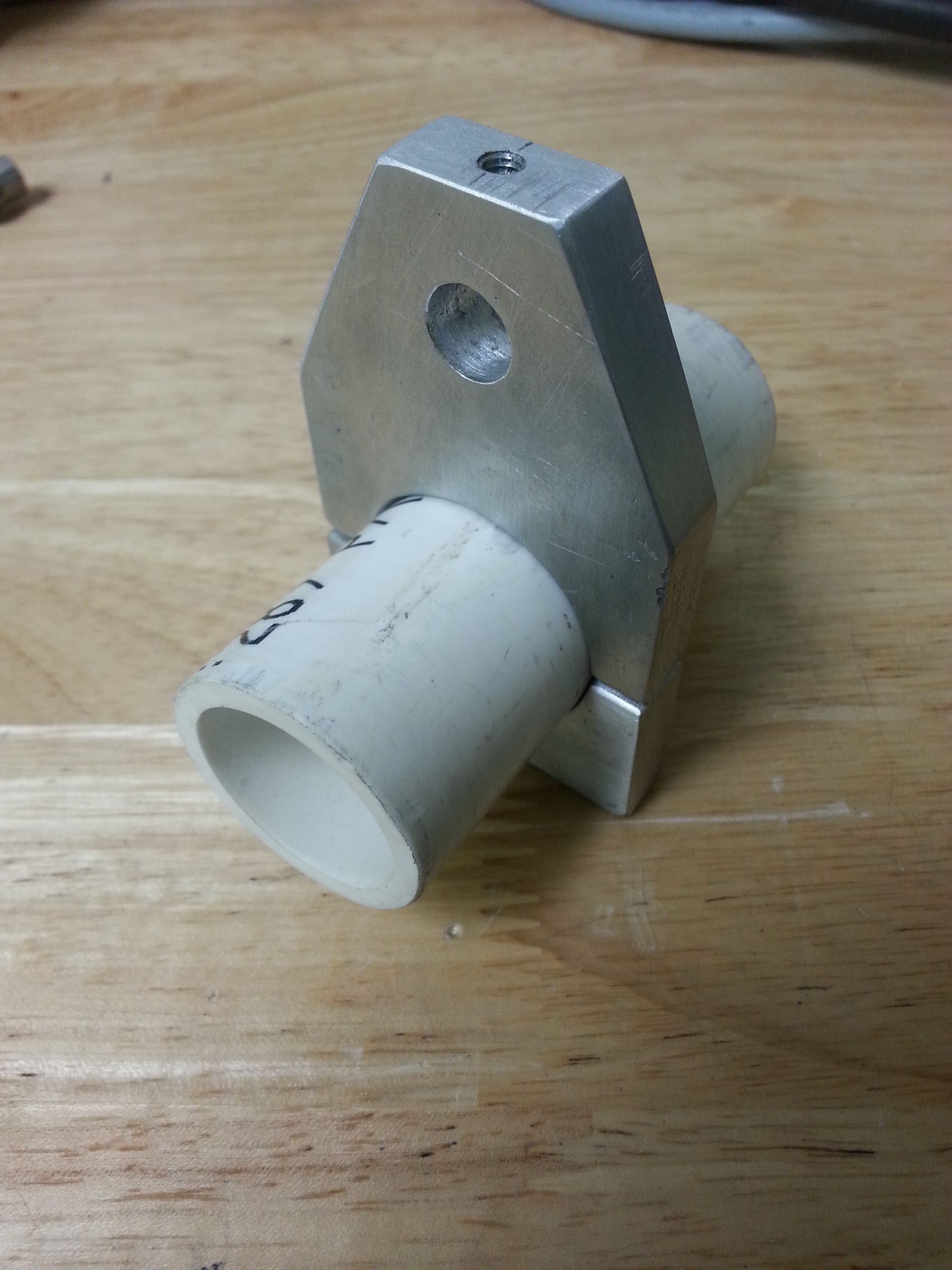

Made a clamp today for the front section of the gun to secure the barrel to the pvc chamber
clamp (2).jpg
clamp (3).jpg

M4 thread on top for front sightpost
clamp (1).jpg
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Sun Jul 23, 2017 4:30 pm

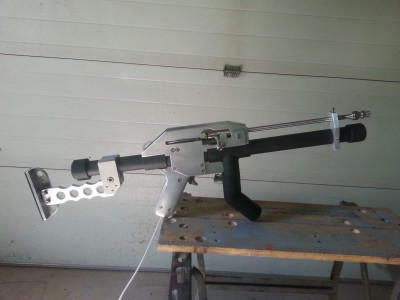

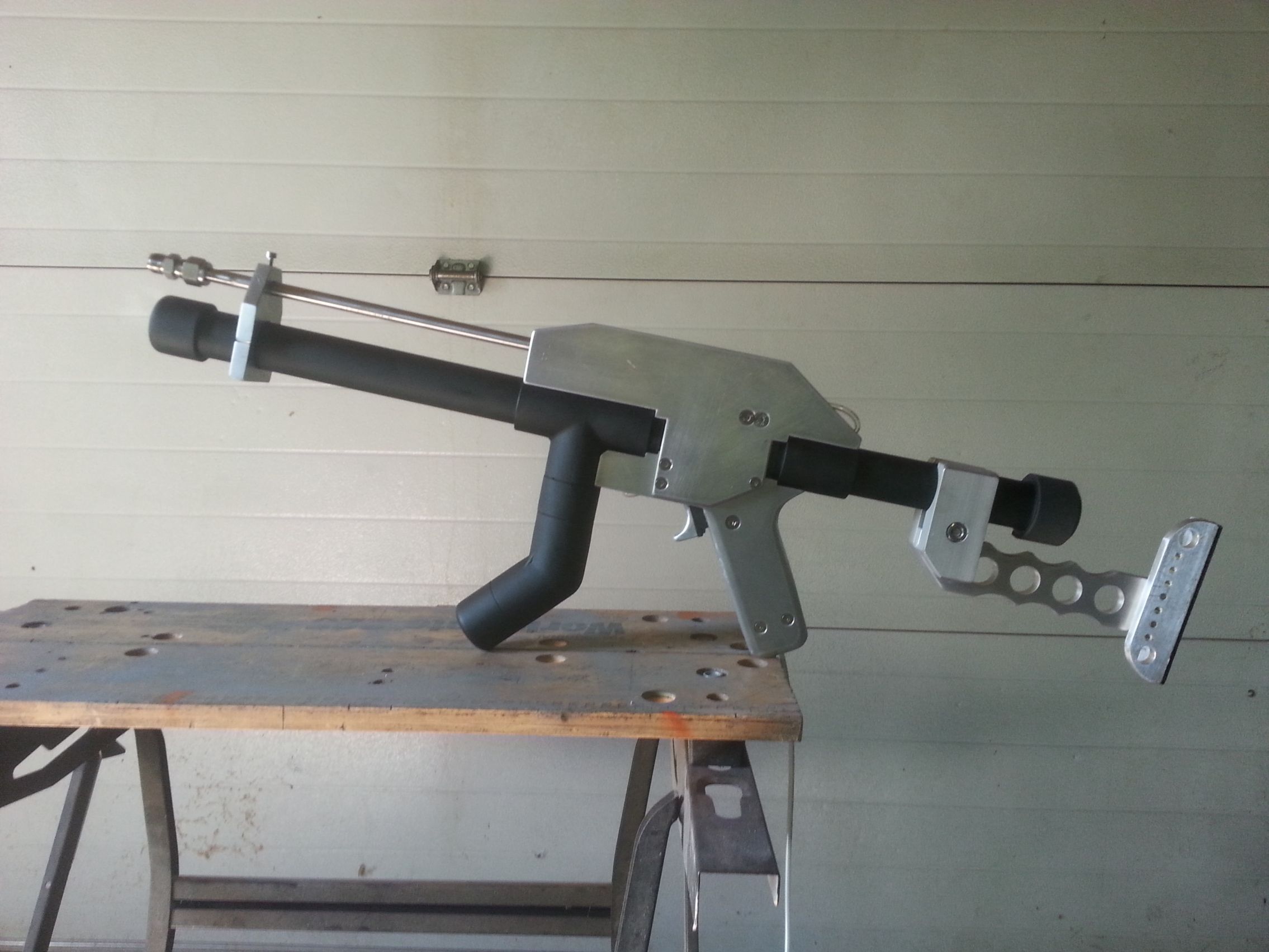

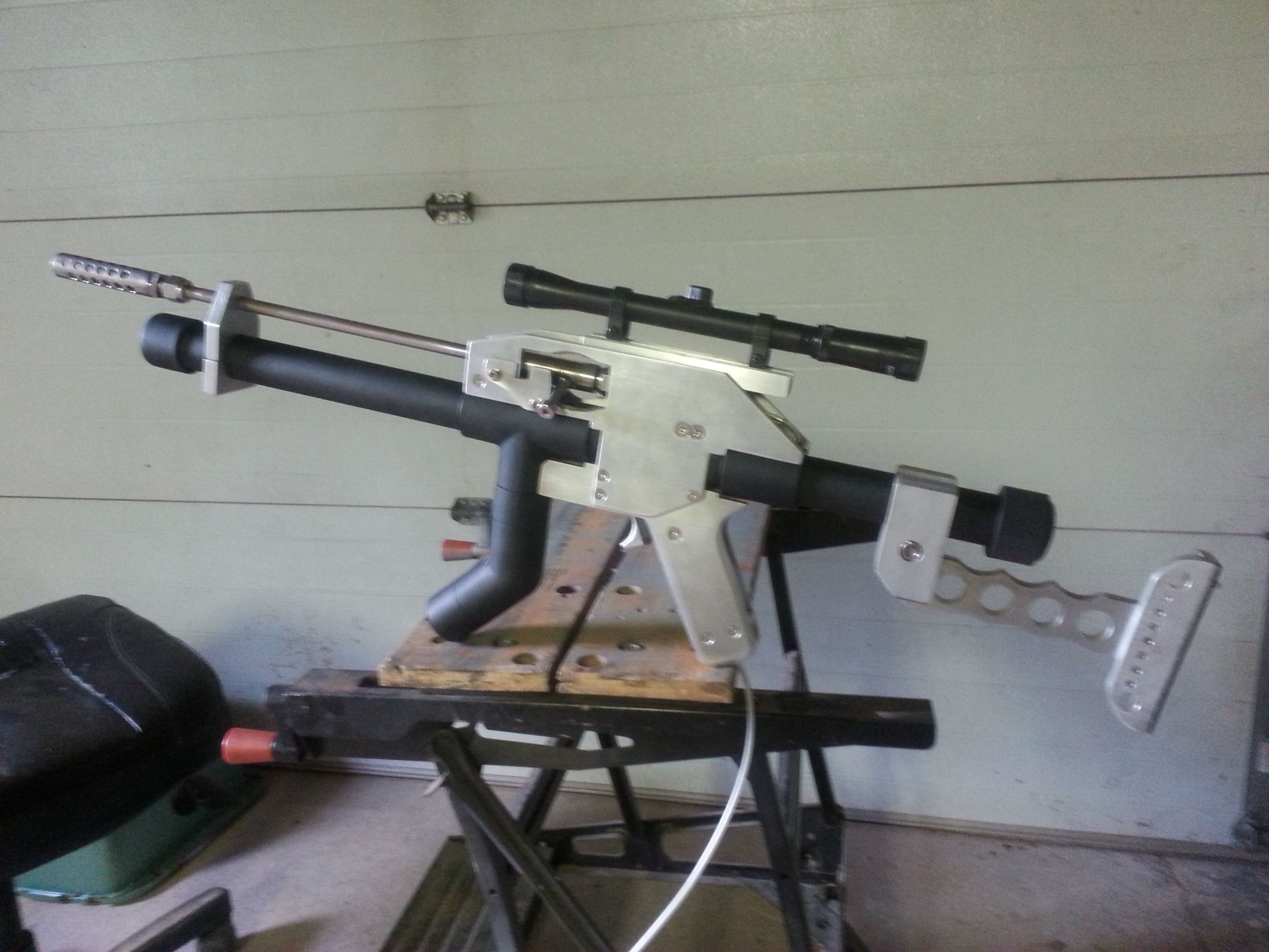

PVC painted flat black, mostly assembled now, going to mount a small 4x scope I have on it. Connector on the end of the barrel is to attach extension/silencer, about 8" long.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25658
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 20 times
Been thanked: 8 times

Donating Members

Mon Jul 24, 2017 4:49 am

Looks good!

Since you are well versed with high strength metal constriction should consider a move to higher pressures in the 450-850 range using paintball bottles, supersonic airsoft BBs are more than feasible.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Wed Jul 26, 2017 6:20 pm

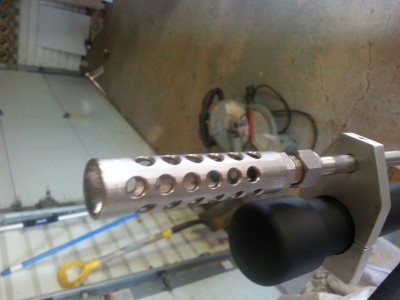

Some mods in progress, changed bolt to left side, I'm right handed but find it easier to load with my left. Mounting scope bracket, making dummy flash hider.


Did some test firing and found a leak, all in pieces now :cry:
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Thu Jul 27, 2017 5:43 pm

Back together now, works perfectly, just need to get scope, sights and laser set up.
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Fri Jul 28, 2017 6:47 pm

I fired a good 100 shots through it and the accuracy is terrible, just everywhere, even at 10'. I'm hoping it's the compression fitting I put on the end of the barrel has caused a small ridge inside and is messing it up, gonna cut the last 1" off the barrel and see if it fixes it :idea:
User avatar
Cthulhu
Specialist
Specialist
Posts: 190
Joined: Wed Apr 12, 2017 7:07 pm
Location: South Texas

Sat Jul 29, 2017 3:44 am

farcticox1 wrote:I fired a good 100 shots through it and the accuracy is terrible, just everywhere, even at 10'. I'm hoping it's the compression fitting I put on the end of the barrel has caused a small ridge inside and is messing it up, gonna cut the last 1" off the barrel and see if it fixes it :idea:

If it doesn't fix it, consider adding a hop up like a real airsoft gun or looking towards a heavier bb. Those are usually the most common issues with accuracy for airsoft guns.
This weapon serves to silence the noisy speakers of the stupid of the other street! (joke) -Hectmarr
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Sat Jul 29, 2017 10:52 am

I like the idea of hop up, now how to make one :idea:

Would a nylon tipped set screw work, or does it need to softer like rubber ?

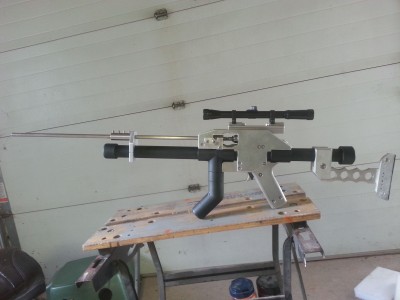

played with it a bit more, using 0.2g over 0.12g BB's helps a bit, also extending the barrel helps a lot, seems like there is so much extra air coming out behind the BB that it pushes it off course. quite a loud crack and recoil with the short barrel, quiter and smoother with the longer barrel.
long barrel.jpg
User avatar
hectmarr
Corporal 3
Corporal 3
Posts: 755
Joined: Sat May 07, 2016 3:49 pm
Location: Yaren
Has thanked: 1 time
Been thanked: 1 time

Sat Jul 29, 2017 6:20 pm

looks great! :bounce: :bounce: Do you have a video? I would like very much to see how his creation shoots. Good project. I will try something similar in the future, this idea has been around for a long time.
Ideas don't make holes, guns do!
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Sat Jul 29, 2017 6:35 pm

I'll try and do one when it's completely finished :cheers:
