this is my new piston gun.Its called a "naval" gun becase it kinda reminds me of a gun that would be mounted on a battleship.
The piston is a 1 inch cap slightly sanded down and has a neoprene washer for a sealing face and it works perectly.
The camber is 1.5 inch sch 40 pvc with a 1.5 inch ballvalve for a pilot and it usees a shcrader as a fill valve.
Barrel is 1/2 inch pvc and ther is an old rag as a bumber.
Tis gun has power! and seals perfectly! the only thing to complain about is that the bumber comes put some times but oh well.
more damage coming soon!
-
Attachments
-
- DAMAGE! from 5 ft 60 psi.
- P1010210.JPG (26.94 KiB) Viewed 4658 times
-
- the sights.
- P1010203.JPG (22.16 KiB) Viewed 4658 times
-
- barrel and bushings...
- P1010205.JPG (25.81 KiB) Viewed 4658 times
-
- pilot/fillvalve.
- P1010200.JPG (26.7 KiB) Viewed 4658 times
-
- piston sealing face.
- P1010196.JPG (23.05 KiB) Viewed 4658 times
-
- piston
- P1010195.JPG (21.49 KiB) Viewed 4658 times
-
- the gun.
- P1010199.JPG (25.26 KiB) Viewed 4658 times
Last edited by
thespeedycicada on Mon Jan 21, 2008 4:17 pm, edited 1 time in total.
current projects: co-axial piston valve.Status DONE!
S.P.E.C.S update mk 1 construction begining in febuary all the maths for it are done plans are drawn up and parts are listed.
NEXT project:auto piston valve.
-
Maniac
- Specialist 4
- Posts: 496
- Joined: Tue Oct 23, 2007 5:55 pm
- Location: Right behind you
Sun Jan 20, 2008 3:48 pm
Nice.
It reminds me of something on a battle ship too.
what are those sights actually made of and can i expect to see any damage pics soon.
p.s. arent those angled tees (i think there called wye tees) DWV
edit im so stupid you all ready have damage pics. what are you shooting out of this
Last edited by
Maniac on Sun Jan 20, 2008 3:49 pm, edited 1 time in total.
Coodude26 wrote:
People who laugh really hard at stuff that pisses you off/you getting hurt, who then say "I'm sorry, I can't stop" but you know they easily could.
Mr.C: That's not as easy as you think. It's like me kicking you in the balls and telling you to stop crying.
-
SpudUke5
- Sergeant
- Posts: 1099
- Joined: Tue Sep 04, 2007 10:16 pm
Sun Jan 20, 2008 3:49 pm
Looks very nice. And it reminds me more of a harpoon gun.
ne way, i dont know if i have ever seen a pressure rated y, if it isnt or isnt.
-
thespeedycicada
- Specialist 4
- Posts: 429
- Joined: Sun Aug 12, 2007 1:28 am
Sun Jan 20, 2008 3:51 pm
idk what the sights are but they work oh and the dwv is fine its just to direct pilot exhaust so there is never any pressure on it.
And there is damage pics so you mean MORE pics right?
current projects: co-axial piston valve.Status DONE!
S.P.E.C.S update mk 1 construction begining in febuary all the maths for it are done plans are drawn up and parts are listed.
NEXT project:auto piston valve.
-
kablooie
- Specialist
- Posts: 188
- Joined: Sun Feb 18, 2007 8:21 pm
Sun Jan 20, 2008 3:53 pm
wow, very nice cannon. I like how simple it looks on the outside and it's still extremely powerful. Great job, although if that Y is dwv then that could be a problem.
-
potatoflinger
- Sergeant 2
- Posts: 1136
- Joined: Thu Nov 02, 2006 3:26 pm
- Location: Maryland
Sun Jan 20, 2008 4:01 pm
Great looking gun, I like it a lot!
It's hard to soar with eagles when you're working with turkeys.
-
psycix
- Sergeant Major 4
- Posts: 3684
- Joined: Mon Jun 25, 2007 7:12 am
- Location: The Netherlands
Sun Jan 20, 2008 4:09 pm
Looks nice yes.
@ the guys above concerning the Y
Isnt the Y unpressurized and just open to the air?
Like being some sort of stock?
Im not of that sure but just a thought.
-
thespeedycicada
- Specialist 4
- Posts: 429
- Joined: Sun Aug 12, 2007 1:28 am
Sun Jan 20, 2008 4:37 pm
Yup ur right psycix its just a stock so i can aim it better it also helps direct the pilot airflow away from my face.
current projects: co-axial piston valve.Status DONE!
S.P.E.C.S update mk 1 construction begining in febuary all the maths for it are done plans are drawn up and parts are listed.
NEXT project:auto piston valve.
-
mark.f
- Sergeant Major 4
- Posts: 3628
- Joined: Sat May 06, 2006 11:18 am
- Location: The Big Steezy
- Has thanked: 52 times
- Been thanked: 53 times
-
Contact:
Sun Jan 20, 2008 5:27 pm
Looks good. That's the first pilot assembly I've seen like that. Extremely simple, but how stiff is the ball valve?
Also, I think you put that Y on there just to see peoples reactions.
I've thought about building a pressure rated pneumatic and sleeving it in a DWV "shell" before just to see what people would say.
-
pizlo
- Corporal 3
- Posts: 783
- Joined: Fri Dec 22, 2006 7:27 pm
-
Contact:
Sun Jan 20, 2008 5:44 pm
So would a 1.5 in coax be as powerful and a barrel or chamber sealing?
-
psycix
- Sergeant Major 4
- Posts: 3684
- Joined: Mon Jun 25, 2007 7:12 am
- Location: The Netherlands
Mon Jan 21, 2008 11:46 am
Yes
A coax will be as powerful as any other barrel-sealer in the same dimensions.
Im not sure about chamber sealers but the difference isnt that big.
-
thespeedycicada
- Specialist 4
- Posts: 429
- Joined: Sun Aug 12, 2007 1:28 am
Mon Jan 21, 2008 4:14 pm
more damage! all was done at 5.5, 6, and 9 ft
-
Attachments
-

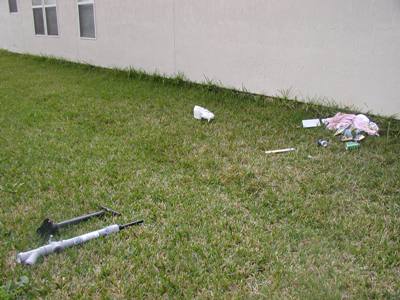

- the setup.
- P1010218.JPG (25.83 KiB) Viewed 4497 times
-
- entrance
- P1010213.JPG (36.04 KiB) Viewed 4497 times
-
- exit
- P1010214.JPG (35.54 KiB) Viewed 4497 times
-
- phone book,6 feet 90 psi.
- P1010211.JPG (37.1 KiB) Viewed 4497 times
-
- full can,5.5 ft, 80 psi Ammo: wood dowel.
- P1010210.JPG (37.99 KiB) Viewed 4497 times
-
- full can, 5.5 ft, 80 psi ammo:nail
- P1010209.JPG (30.56 KiB) Viewed 4497 times
current projects: co-axial piston valve.Status DONE!
S.P.E.C.S update mk 1 construction begining in febuary all the maths for it are done plans are drawn up and parts are listed.
NEXT project:auto piston valve.
-
Maniac
- Specialist 4
- Posts: 496
- Joined: Tue Oct 23, 2007 5:55 pm
- Location: Right behind you
Mon Jan 21, 2008 9:23 pm
nice man can i expect to see a vid soon. If not pictures are still great.
