3/4 Sprinkler Valve Solenoid with remote start HELP NEEDED!

[Davidvaini]

I've been wanting to do this for some time now and Ive seen a post with a remote control car' transmitter and receiver but I want something a little bit smaller... so I was thinking about using these:

http://www.allelectronics.com/cgi-bin/i ... _AMP_.html

12vdc 6amp... I could also purchase a 15amp version as well if needed.

My question is has anyone done this exact thing? The solenoid on the 3/4 sprinkler valve is 24v and im curious on how to set this up, or if it would even work....

Step by step help would be appreciated.

[TurboSuper]

That thing looks pretty cool.

The battery may die quickly since it's small and can source all that current, but it doesn't take that long to actuate a sprinkler valve anyhow.

Best way to test to see if it will work is to just hook it up directly to a car battery and see if it actuates properly. If you have a multimeter handy you can measure the current consumed during the process too (only do this for a couple of seconds).

[Davidvaini]

so you think the 12v for that remote start will be strong enough to actuate the 24v solenoid without any additional help?

[TurboSuper]

I don't know, that's why I said test it with a battery and find out

I got one to work very well with 12V once, but it may be a different model.

[Davidvaini]

orbit 3/4 inline like shown below:



or link to the product page here:
http://www.orbitonline.com/products/Val ... 16/04/643/

[grumpy]

only in a remote controlled mine.

[TurboSuper]

orbit 3/4 inline like shown below:



or link to the product page here:
http://www.orbitonline.com/products/Val ... 16/04/643/

Oh, that's exactly the one I had, except I had a 1".

It will work fine with 12V.


Now as for wiring it up, it should come with a diagram or something, so I wouldn't worry about it.

[spudy buddy]

i have a 1 inch like that and it works with one 9 volt batery, so 12v should work fine.

Edit: darn i got beaten to it.

[singularity]

i've done basically the same thing you are talking about <a href="http://www.spudfiles.com/spud_wiki/inde ... ted_Gun">i put it in the wiki</a> of course i went with the ghetto approach and used an r/c car

if you want to check out my original post <a href="http://www.spudfiles.com/forums/anti-pe ... html">here it is</a>

i used a 9.6v rechargeable Ni-Cd battery to activate the valve itself so yea 12v will be fine as long as the battery can source the amps needed .for example if a standard alkaline 9v battery were to be used the valve would not work (i have tried)

[Davidvaini]

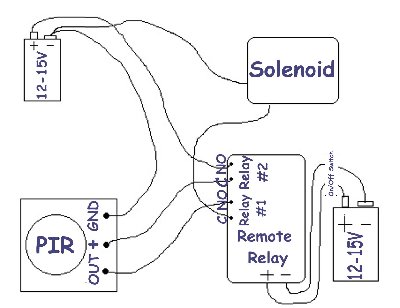

what is the PIR in the picture below?:

[jackssmirkingrevenge]

what is the PIR

One of these, very popular with insugent IED techs in Iraq apparently.
