My new coax copper hunter (New "gun metal paint" u

Cannons powered by pneumatic pressure (compressed gas) using a valve or other release.
Post Reply
User avatar
BlackH
Private 4
Private 4
Posts: 73
Joined: Thu Feb 01, 2007 7:24 am
Location: Cape Town, South Africa

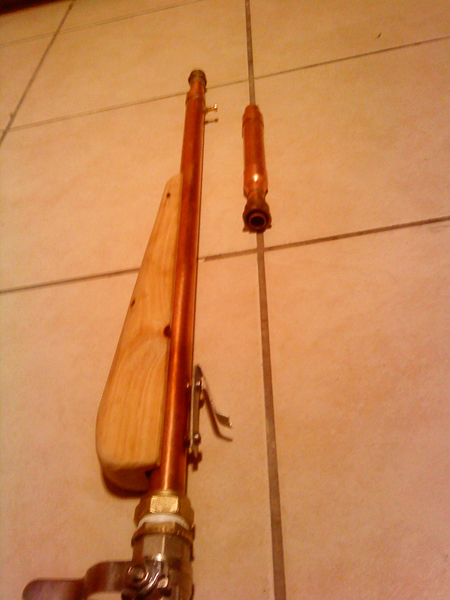

My new copper gun with piston and a nice aluminum sight and detachable silencer with steel wool sepressor.

Ask away

Work at round about 200psi now (New pics of gun on page 2)

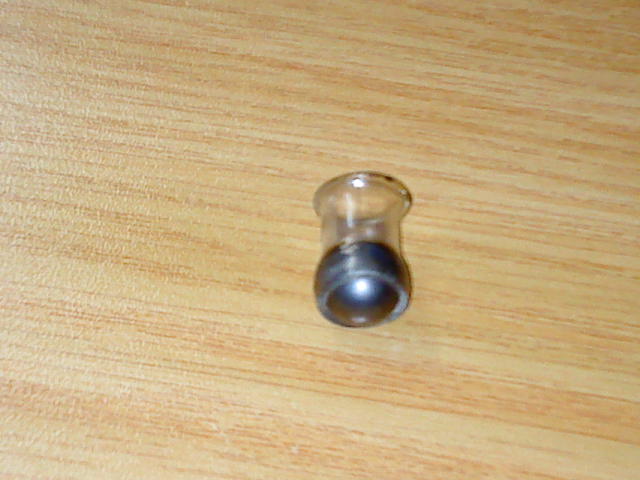

Edit: the new bullets is a 13mm steel boll with a 10mm fish tank hose over it and the rear has been heated up and bended outwards to create an air seal that will seal if air hits it, like a air gun pellet, the lead free ones like these.
o ps and a little Q-bond in the inside to make the steel ball stick.

New pics on page 2 and 3 : Page 2 - new pics / Page 3 - handle update and shots

More about the "Pellet"


Attachments
Silencer
Silencer
old
old
My bullets is based on this air gun pellet
My bullets is based on this air gun pellet
My bullets is based on this air gun pellet
My bullets is based on this air gun pellet

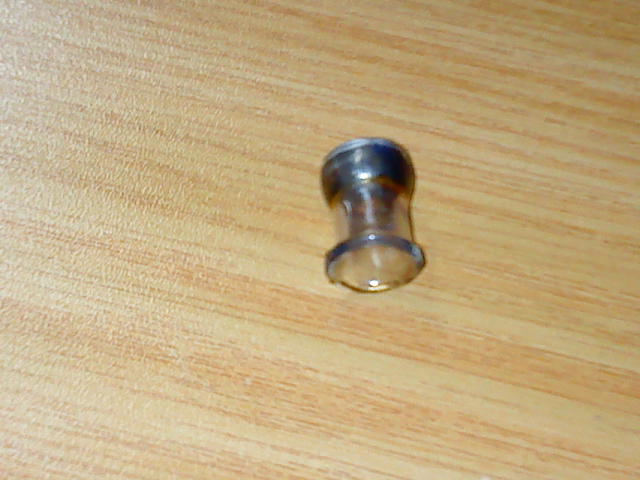

My new Bullets
My new Bullets
My new Bullets
My new Bullets
My new Bullets
My new Bullets
Side view to c the form better
Side view to c the form better
Last edited by BlackH on Sun Sep 21, 2008 3:03 pm, edited 15 times in total.
Breaking stuff with a Big Bang haven’t been this much fun!!!!!!!!!!


http://www.spudfiles.com/forums/bh-2400 ... 14078.html
Top
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

wow I am impressed.... that sight looks really nice

does the silencer work good at reducing sound ? I suppose it does because you gun already has features that make it quiet
Children are the future

unless we stop them now
Top
User avatar
sniper hero
Specialist 3
Specialist 3
Posts: 332
Joined: Fri Mar 07, 2008 3:12 pm

very nice gun I like the wood and the sight
good work
but a piston ? how did you do that?
proud member of dutch spud clan
coming: semi auto pellet sniper:D
Top
User avatar
BlackH
Private 4
Private 4
Posts: 73
Joined: Thu Feb 01, 2007 7:24 am
Location: Cape Town, South Africa

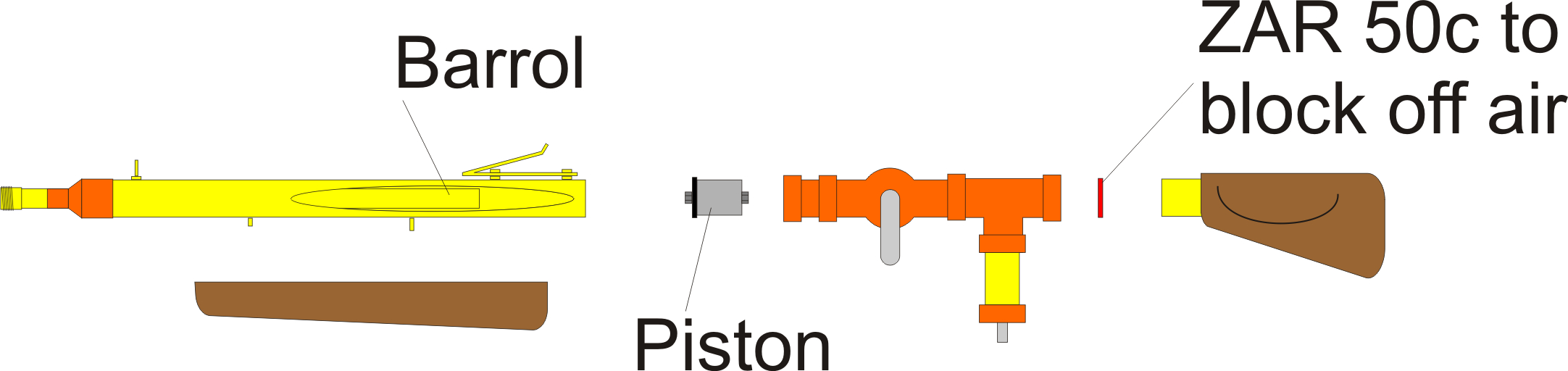

It works like this:

And the silencer works ok, it takes away that Crack sound but you will still here the gun loud if you take the volume of the silencer up to say a 2 or 3 times the barrel volume it should work very good but then your gun looks weird.
Attachments
Last edited by BlackH on Tue Aug 26, 2008 6:28 am, edited 1 time in total.
Breaking stuff with a Big Bang haven’t been this much fun!!!!!!!!!!


http://www.spudfiles.com/forums/bh-2400 ... 14078.html
Top
User avatar
Carlman
Staff Sergeant 2
Staff Sergeant 2
Posts: 1618
Joined: Sat Nov 24, 2007 1:18 am
Location: Western Australia
Been thanked: 2 times

sniper hero wrote:very nice gun I like the wood and the sight
good work
but a piston ? how did you do that?
coax..
nice gun!
Aussie spudders unite!!
Top
User avatar
BlackH
Private 4
Private 4
Posts: 73
Joined: Thu Feb 01, 2007 7:24 am
Location: Cape Town, South Africa

this is basically an upgrade of:

http://www.spudfiles.com/forums/assault ... 15225.html
Breaking stuff with a Big Bang haven’t been this much fun!!!!!!!!!!


http://www.spudfiles.com/forums/bh-2400 ... 14078.html
Top
User avatar
ALIHISGREAT
Staff Sergeant 3
Staff Sergeant 3
Posts: 1778
Joined: Sat Aug 25, 2007 6:47 pm
Location: UK

very nice, i've nearly finished my Coax with a silencer too.
Top
User avatar
frankrede
Sergeant Major 2
Sergeant Major 2
Posts: 3220
Joined: Thu Jul 20, 2006 9:47 pm
Has thanked: 1 time
Been thanked: 1 time

I like it!
Nice job on those iron sights!
Current project: Afghanistan deployment
Top
ondskehem
Private 3
Private 3
Posts: 50
Joined: Wed May 23, 2007 12:36 pm

well i like it to. Nice job.
Top
User avatar
Gippeto
First Sergeant 3
First Sergeant 3
Venezuela
Posts: 2504
Joined: Sat Jan 19, 2008 10:14 am
Location: Soon to be socialist shit hole.
Has thanked: 2 times
Been thanked: 17 times

Pretty well thought out, and styl'in too! :D

Nicely done.
"It could be that the purpose of your life is to serve as a warning to others" – unknown

Liberalism is a mental disorder, reality is it's cure.
Top
User avatar
Ragnarok
Captain
Captain
Posts: 5401
Joined: Tue Dec 19, 2006 8:23 am
Location: The UK

frankrede wrote:Nice job on those iron sights!
The irony* is is that they're made from Aluminium!

Looks good to me!

*Well, I'm not one to pass up on a bad pun like that!
Does that thing kinda look like a big cat to you?
Top
nivekatoz
Specialist 2
Specialist 2
Posts: 237
Joined: Sat Nov 25, 2006 7:05 pm

Thats a really cool gun.I like it. :salute:
Top
User avatar
sniper hero
Specialist 3
Specialist 3
Posts: 332
Joined: Fri Mar 07, 2008 3:12 pm

ok now I understand :P
I love this gun :D it's clean ergomic and powerful
proud member of dutch spud clan
coming: semi auto pellet sniper:D
Top
User avatar
spudster80
Private
Private
Posts: 11
Joined: Thu Aug 21, 2008 10:58 pm

wow. i never really thought of building a copper coax before. cool gun.
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

Very cool!
It reminds me of my early work, but greatly improved, with the wood bits!

Love this thing man!

You can shape and bend the BV handle to b more trigger like, and if you take a bike handle-grip ( watchamacallit) they fit 22mm pipe nicely.

Some handles are already shaped with the fingerinprints and all.
that would look great.

( that would require you to take off the compression ring)
