Electrical Question: "Voltage Tap"

Boom! The classic potato gun harnesses the combustion of flammable vapor.
Post Reply
User avatar
mark.f
Sergeant Major 4
Sergeant Major 4
Eritrea
Posts: 3643
Joined: Sat May 06, 2006 11:18 am
Location: The Big Steezy
Has thanked: 58 times
Been thanked: 62 times
Contact:
Contact mark.f

Do you think the below method would work for supplying 1.5 volts to an electronic igniter using a 12v battery pack? It'd be kind of hard to determine running resistance of the igniter, so I don't think a resistor as a voltage divider is practical...
Attachments

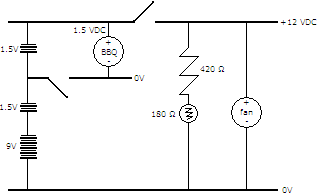

Note the "voltage tap" between the last 1.5v battery and the rest of the battery pack. Sound?
Note the "voltage tap" between the last 1.5v battery and the rest of the battery pack. Sound?
Top
User avatar
Technician1002
Captain
Captain
Posts: 5189
Joined: Sat Apr 04, 2009 11:10 am

An electric igniter is a dynamic load (current varies in normal operation). You will be best to use a battery.
Top
User avatar
geardog32
Specialist
Specialist
Posts: 173
Joined: Mon Jun 22, 2009 9:20 pm

whats the impedance of the fan? and whats wrong with just using a 1.5 volt battery for the igniter and separate battery for the fan you already have two switches and this would be simpler and less loss through a bunch of resistors trying to get down to 1.5 volts.
(\ /)
(0.o)
(><) Copy the bunny to your sig and help him achieve world domination.
Top
User avatar
Bluetooth
Corporal 4
Corporal 4
Posts: 863
Joined: Tue Jun 27, 2006 7:57 am

geardog32 wrote:whats the impedance of the fan? and whats wrong with just using a 1.5 volt battery for the igniter and separate battery for the fan you already have two switches and this would be simpler and less loss through a bunch of resistors trying to get down to 1.5 volts.
Who said anything about a fan?
Top
User avatar
jimmy101
Sergeant Major 2
Sergeant Major 2
United States of America
Posts: 3210
Joined: Wed Mar 28, 2007 9:48 am
Location: Greenwood, Indiana
Has thanked: 6 times
Been thanked: 18 times
Contact:
Contact jimmy101

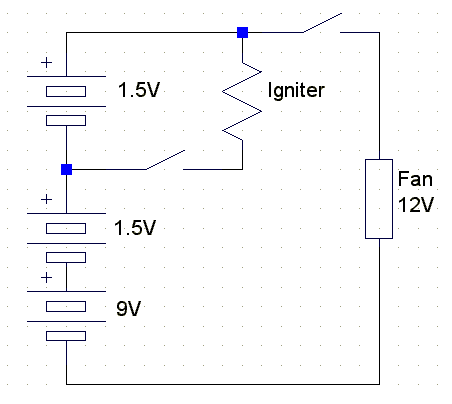

I wouldn't bother with a resistor in series with the igniter. To actually drop 12V to 1.5V the resistor will have to dissipate 8 times as much energy as the igniter itself.

What is the circle with "BBQ" in it?

You can tap from the individual batteries in a battery pack. You have to be careful that you don't exhaust that battery much quicker than the others in the pack.
Attachments
Top
User avatar
geardog32
Specialist
Specialist
Posts: 173
Joined: Mon Jun 22, 2009 9:20 pm

Bluetooth wrote:
geardog32 wrote:whats the impedance of the fan? and whats wrong with just using a 1.5 volt battery for the igniter and separate battery for the fan you already have two switches and this would be simpler and less loss through a bunch of resistors trying to get down to 1.5 volts.
Who said anything about a fan?
there is clearly a fan in the diagram
(\ /)
(0.o)
(><) Copy the bunny to your sig and help him achieve world domination.
Top
User avatar
mark.f
Sergeant Major 4
Sergeant Major 4
Eritrea
Posts: 3643
Joined: Sat May 06, 2006 11:18 am
Location: The Big Steezy
Has thanked: 58 times
Been thanked: 62 times
Contact:
Contact mark.f

Whoah, I guess I need to explain. :)

The upper left portion of my diagram is exactly what jimmy101 posted. The circle with the BBQ in it is an electronic BBQ igniter (hacked down to fit in a project box instead of using the built in batter holder/switch). Sorry for my unconventional wiring diagram (and unwillingless to crop out the irrelevant part of the circuit. :wink: )

That answered my question, though. Thanks jimmy.
