3/4" QEV piloting

[woodscout]

is the 3 way push button valve(small) enouhg to pilot an 3/4" QEV? its going to be used on a marble rifle. also how much pressure do i need to shoot the marbles pretty high velocity because my chamber size is going to be 20mm x 180mm?

[jrrdw]

What valve 'exactly' (part number, link, picture) are you talking about. What is your chamber made of? You have to be more discriptive, we are not mind readers...

[spudtyrrant]

how much pressure do i need to shoot the marbles pretty high velocity because my chamber size is going to be 20mm x 180mm?

depends what your definition of high velocity is, 200 fps 1000fps, or some other number?

[MrCrowley]

I think it would be too small. Even if it could pilot a QEV, it wouldn't do it very well. That's assuming the 3/2 is 1/8" threaded.

[POLAND_SPUD]

yeah most 1/8" valve will have too little flow... possibly clippard's MJVO-3 is good enough but I can't test it


alternatively you can use an aux. QEV to pilot the main QEV

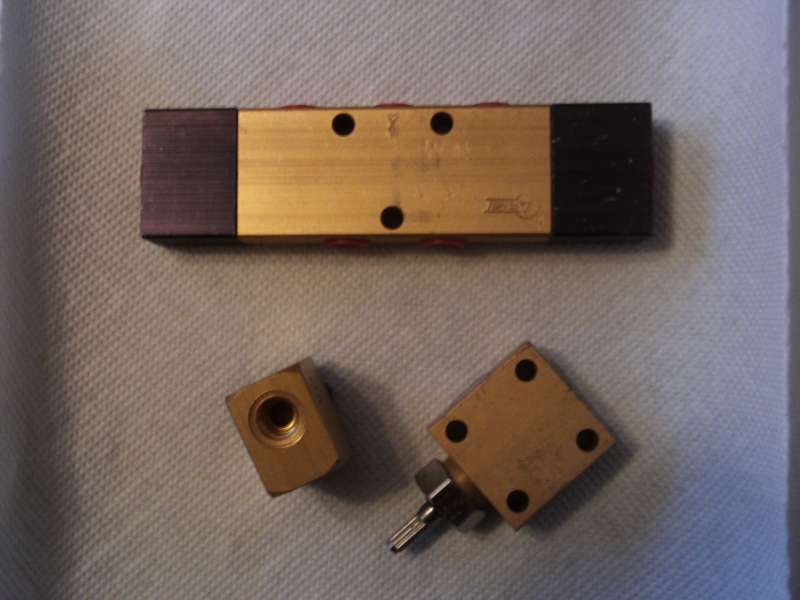

I tested this with a 1/8" QEV that you can see in the pic below and it works great
