My friend has long been interested in medium and high pressure pneumatics. Just like me, she does it with the help of plumbing and simple tools. For example, here is one of his guns. This is a coaxial circuit, caliber 20 millimeters, pressure 40 atm. Homemade fully in the style of this site.
Last edited by keks2033 on Sat Apr 27, 2019 6:22 am, edited 1 time in total.
Top
keks2033
Private 4
Private 4
Russia
Posts: 94
Joined: Mon Feb 08, 2016 2:37 am
Has thanked: 1 time
Been thanked: 5 times

Strange, it is impossible to attach a video, only the link.
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 581 times
Been thanked: 347 times

[youtube][/youtube]

That's some pretty sweet Russian engineering :D
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
keks2033
Private 4
Private 4
Russia
Posts: 94
Joined: Mon Feb 08, 2016 2:37 am
Has thanked: 1 time
Been thanked: 5 times

[youtube][/youtube] And what can you say about such a gun?)) The pressure is 120 atm, the barrel is smooth, the accuracy is 20 cm by 20 meters. A balanced valve is used.
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 581 times
Been thanked: 347 times

Вот это да!

That is *really* nice!

You guys are determined to make Metro 2033 a reality!

link to other uploads that I encourage other members to look through, this is Russia's Brian the Brain :D

Years ago I was close to marrying a woman from Siberia, this is like a glimpse into an alternative universe of what my life would have looked like :D
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
keks2033
Private 4
Private 4
Russia
Posts: 94
Joined: Mon Feb 08, 2016 2:37 am
Has thanked: 1 time
Been thanked: 5 times

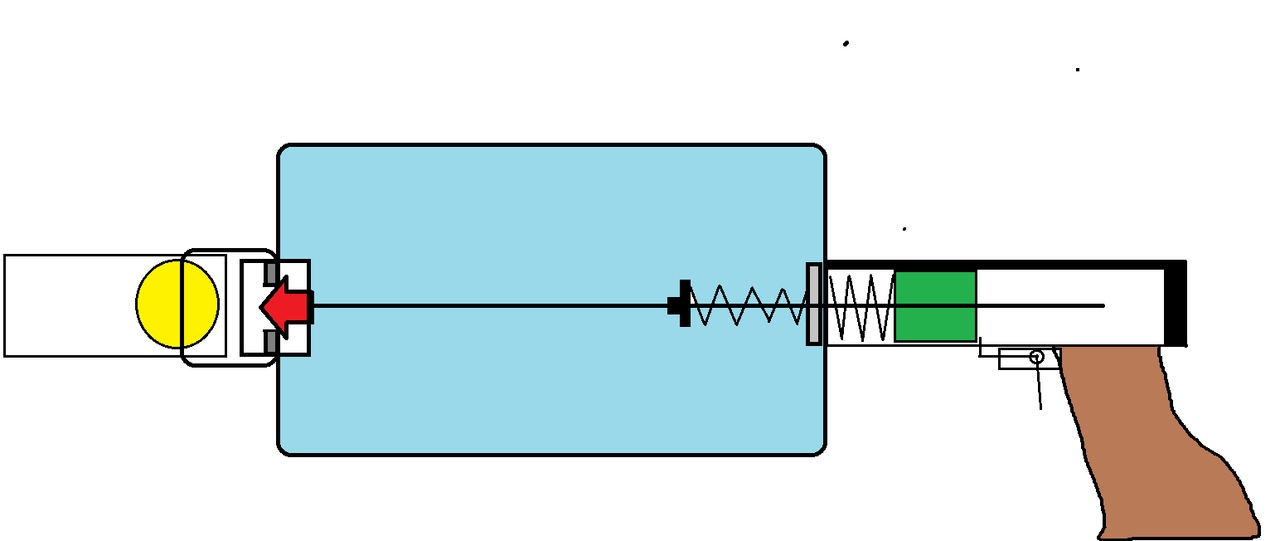

But what I did. A pistol with a balanced valve as in the picture. I pumped up and 100 atm, but the best bullet speed starts from 70 to 50 atm, from 160m / s to 130 m / s. The number of shots is 30.
[youtube][/youtube]
Top
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1064
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 274 times
Been thanked: 276 times
Contact:
Contact hectmarr

Impressive the two weapons. Really very inspiring for me :bounce: . The simple and effective construction, and with limited means, is the best. Excellent post regards :)
You can use a neodymium magnet so that the ammunition does not fall.
Last edited by hectmarr on Sun Apr 28, 2019 9:50 am, edited 1 time in total.
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 581 times
Been thanked: 347 times

keks2033 wrote:But what I did. A pistol with a balanced valve as in the picture.
Very nice! The vertical valve reminds me of the Weihrauch HW40/Beeman P17:

hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
keks2033
Private 4
Private 4
Russia
Posts: 94
Joined: Mon Feb 08, 2016 2:37 am
Has thanked: 1 time
Been thanked: 5 times

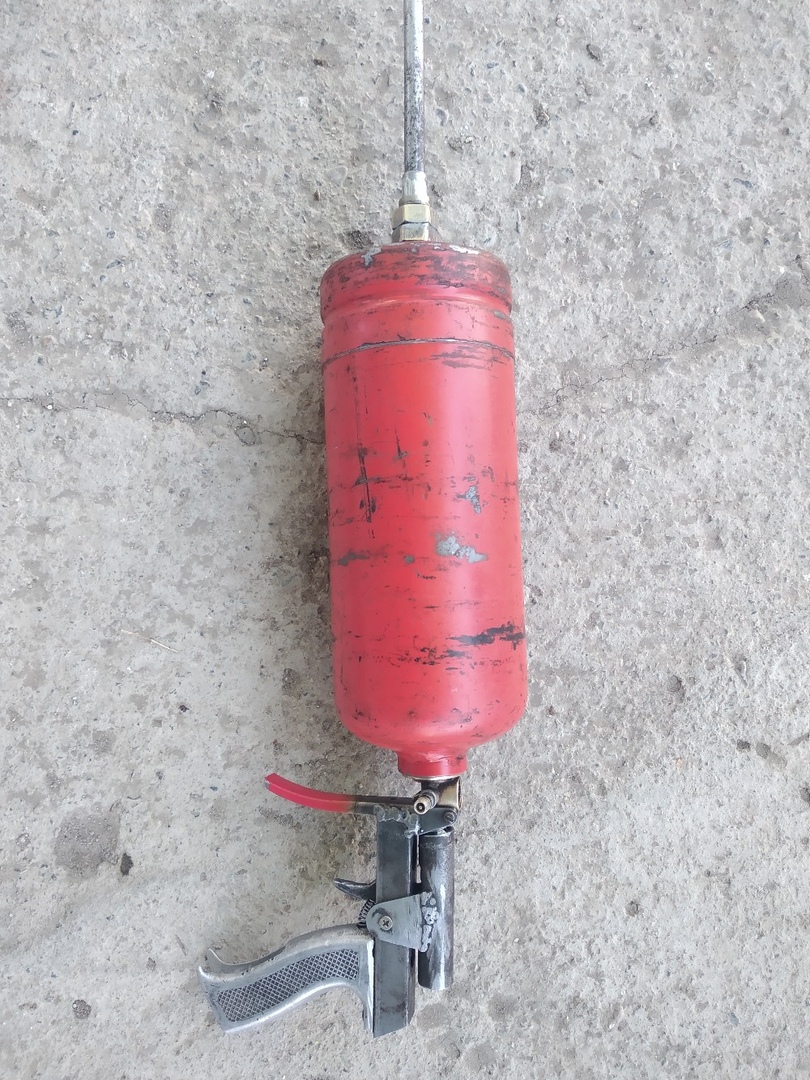

My friend made another gun. It is made of a fire extinguisher, the valve is balanced. He made her keak toy for his younger brother.
Attachments
движок в тушаке 2.jpg
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 581 times
Been thanked: 347 times

That looks like it could be a very dangerous "toy" at higher pressure... still, looks well made!
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:
Contact wyz2285

jackssmirkingrevenge wrote:That looks like it could be a very dangerous "toy" at higher pressure... still, looks well made!
They'd be playing Fortnite too :lol:
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
