How to run wires through chamber wall

[Pete Zaria]

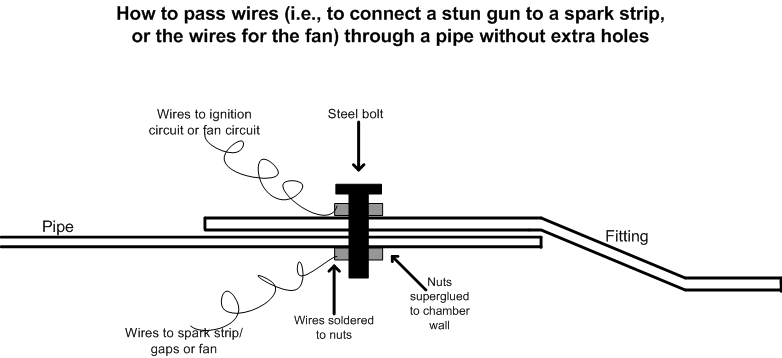

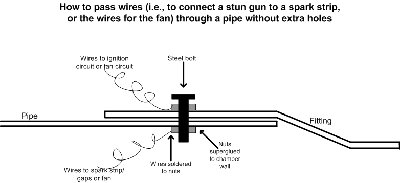

I was pondering a way to run wires (for instance, from a stun gun to a spark strip or the wires for a fan) through the wall of the combustion chamber without unnecessary holes.
I'm building an over/under combustion with a ball valve to vent the chamber. The reducer and ball valve on the back of the chamber are going to be attached to the chamber with screws - not glue - to allow for chamber maintenance in the future. So I came up with this idea. It's pretty self-explanatory. Let me know what you think.

Peace,
Pete Zaria.

[sjog]

Thru bolting is the way I did it in my gun.
The "feet" are lead coated copper.
Residue on fan from deoderant.

[SpudBlaster15]

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras nec placerat erat. Vivamus dapibus egestas nunc, at eleifend neque. Suspendisse potenti. Sed dictum lacus eu nisl pretium vehicula. Ut faucibus hendrerit nisi. Integer ultricies orci eu ultrices malesuada. Fusce id mauris risus. Suspendisse finibus ligula et nisl rutrum efficitur. Vestibulum posuere erat pellentesque ornare venenatis. Integer commodo fermentum tortor in pharetra. Proin scelerisque consectetur posuere. Vestibulum molestie augue ac nibh feugiat scelerisque. Sed aliquet a nunc in mattis.

[sjog]

Thanks for the tip!
Does a gun using deoderant get that hot?

[chaos]

plz post pic of finished gun and damage pics 2
thnx

C@SE-G

[SpudBlaster15]

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras nec placerat erat. Vivamus dapibus egestas nunc, at eleifend neque. Suspendisse potenti. Sed dictum lacus eu nisl pretium vehicula. Ut faucibus hendrerit nisi. Integer ultricies orci eu ultrices malesuada. Fusce id mauris risus. Suspendisse finibus ligula et nisl rutrum efficitur. Vestibulum posuere erat pellentesque ornare venenatis. Integer commodo fermentum tortor in pharetra. Proin scelerisque consectetur posuere. Vestibulum molestie augue ac nibh feugiat scelerisque. Sed aliquet a nunc in mattis.

[WOW!!]

The way you got it looks good. Just put some sealer to the threads so it stay air tight.

[chaos]

soz i know that this is an old post but i do have a prob with my wires there insulated because of a steel chamber but they are melting coz of heat

help apreciated

[sjog]

fly back circuit wire?
Wire from an electric stove?
Put 'em in side wood stove gasket- It's made from fiberglas now
buy high temp wire at supply house
1/4" tubing --conduit

[chaos]

wood stove gasket? pic please

[sjog]

wood stove gasket is fiberglas "rope" in different dia..
it's like samson braid, hollow woven, not three strand.
it is 1/4 to 3/4" - fit wire down middle

chaos- I will post pic if you want but not tonight, I use wood for heat
and use the stuff on stove door and other places to stop drafts.
It doesnt burn soft and easy to work

[chaos]

oh ok mate cheers ive got these plugs for my fan plastic but im just gonna coat em in heatproof silicone dont worry about the pictures ive got it sorted.

peace
chaos
