First Piston By Redneck

Cannons powered by pneumatic pressure (compressed gas) using a valve or other release.
Post Reply
User avatar
rednecktatertosser
Corporal
Corporal
Posts: 590
Joined: Tue May 22, 2007 7:52 pm

Well this is my first completed piston cannon.

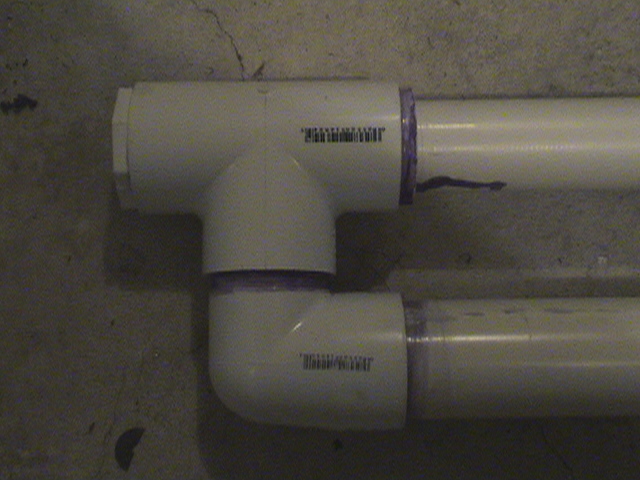

It sports a Piston valve housed in a 2" tee with a 1.5" endcap for a piston with a 1/4" pilot porting, and a 1.5" Barrel porting, and a 2" chamber porting.

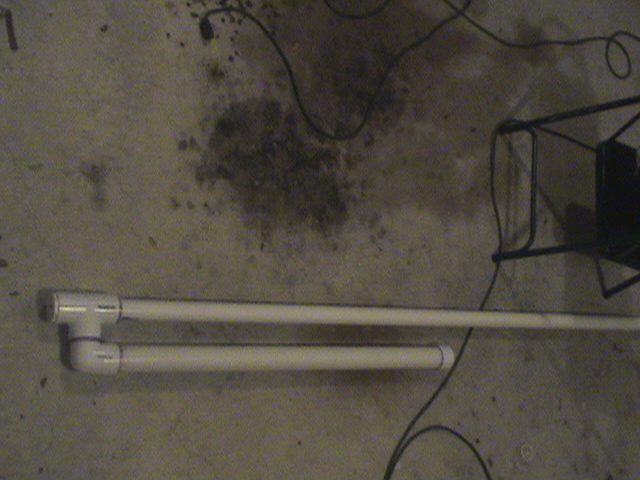

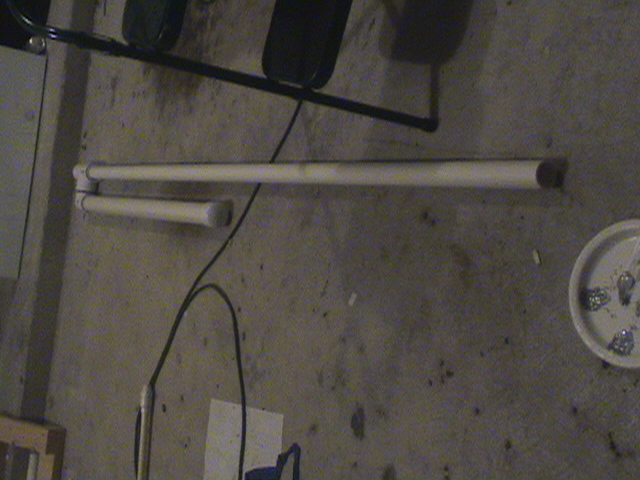

The chamber is 2"x4' and the barrel is 1.5"x 7'.

This is my biggest and loudest cannon to date.

I have only tested this cannon to 50 PSI and using my thumb as a pilot valve. and the results were beyond my expectations.

What do you guys think? Questinos/comments, likes/dislikes(except primer stains.)

Here are the pics:
Attachments
Piston Cannon 001.JPG
Piston Cannon 002.JPG
Piston Cannon 003.JPG
"When you tell some body something, it depends on which part of these United States your standing in, as to how dumb you sound."
-Burt Reynolds as: Bo "Bandit" Darville
Top
User avatar
Flying_Salt
Corporal 3
Corporal 3
Posts: 779
Joined: Mon Oct 09, 2006 4:57 pm
Location: Texas

What I DISLIKE is that it actually works, and I still can't get my qev to work.
What I like is that I'm planning to steal it.
sgort87 wrote: I hereby present Flying_Salt with The one and only <a href="http://www.geocities.com/sgort87/ghetto">Ghetto Award!</a>
Top
User avatar
origin unknown
Corporal
Corporal
Posts: 533
Joined: Sat Apr 14, 2007 2:38 pm
Location: Searcy, Arkansas (college) and Memphis, TN (hometown)

Beautiful. Just plain and simple, no special doo-dads or anything fancy. Does your piston pilot fast, or does it pilot about half the chamber volume before opening? I am having this problem on mine which I think is caused by me not having o-rings on my piston.
Last edited by origin unknown on Sat Jul 14, 2007 12:47 am, edited 1 time in total.
Ecclesiastes 1:9 - What has been will be again, what has been done will be done again; there is nothing new under the sun.
Top
User avatar
TwitchTheAussie
Corporal 5
Corporal 5
Posts: 980
Joined: Tue Feb 06, 2007 3:23 am

Bloody good and easy mate. Love it.
Raise your horns if you love metal.
spudgunning is like sex, once you've tasted, you can't wait til next time.
-
CpTn_lAw
Top
User avatar
rednecktatertosser
Corporal
Corporal
Posts: 590
Joined: Tue May 22, 2007 7:52 pm

I dont have orings either, but i wrapped it in masking tape and lubed it up before sticking it in there :lol: and it opens pretty fast. But that is probably your problem, what are you using for your pilot valve?
"When you tell some body something, it depends on which part of these United States your standing in, as to how dumb you sound."
-Burt Reynolds as: Bo "Bandit" Darville
Top
User avatar
origin unknown
Corporal
Corporal
Posts: 533
Joined: Sat Apr 14, 2007 2:38 pm
Location: Searcy, Arkansas (college) and Memphis, TN (hometown)

1/2" ball valve.
Ecclesiastes 1:9 - What has been will be again, what has been done will be done again; there is nothing new under the sun.
Top
User avatar
rednecktatertosser
Corporal
Corporal
Posts: 590
Joined: Tue May 22, 2007 7:52 pm

@origin unknown- yeah orings are probably your problem.

@twitch- Thanks, i get tired of all the fancy guns, the simple things in life are the most enjoyable :) .
"When you tell some body something, it depends on which part of these United States your standing in, as to how dumb you sound."
-Burt Reynolds as: Bo "Bandit" Darville
Top
User avatar
Hailfire753
Specialist 3
Specialist 3
Posts: 348
Joined: Thu Jun 28, 2007 11:50 pm
Location: Near Philadelphia, PA

Wow, I thought almost all peumatics were not as lowd as combustions. Do you get an echo? It looks like its a blast to shoot.
UPDATED MARCH '08
field-legal paintball semi
Top
User avatar
rednecktatertosser
Corporal
Corporal
Posts: 590
Joined: Tue May 22, 2007 7:52 pm

No I didnt get an echo but i was in my garage shooting it at 50 PSI ,it made my friends ear ring though.

Edit, it was not aimed at said friend.
"When you tell some body something, it depends on which part of these United States your standing in, as to how dumb you sound."
-Burt Reynolds as: Bo "Bandit" Darville
Top
User avatar
Hailfire753
Specialist 3
Specialist 3
Posts: 348
Joined: Thu Jun 28, 2007 11:50 pm
Location: Near Philadelphia, PA

Uh huh. Of course not. :twisted:

EDIT - OF couse seriously OF couse not. I do not think you are stupid. BTW, have you made a combustion, or did you somehow start off building pnuematics?
Last edited by Hailfire753 on Sat Jul 14, 2007 1:33 am, edited 2 times in total.
UPDATED MARCH '08
field-legal paintball semi
Top
User avatar
rednecktatertosser
Corporal
Corporal
Posts: 590
Joined: Tue May 22, 2007 7:52 pm

No seriously, that is stupid and i would never do something like that.
"When you tell some body something, it depends on which part of these United States your standing in, as to how dumb you sound."
-Burt Reynolds as: Bo "Bandit" Darville
Top
User avatar
Modderxtrordanare
Corporal 2
Corporal 2
Posts: 686
Joined: Mon Nov 20, 2006 1:22 pm
Location: Texas

Nice design. :wink:
Spudding since '05. Proud waster of plumbing and plumbing accessories.

-Wiki
-How-To: Modding a Sprinkler Valve
Top
User avatar
spud yeti
Sergeant
Sergeant
Posts: 1030
Joined: Tue May 08, 2007 1:41 pm
Location: Cape town south africa
Contact:
Contact spud yeti

Hey, really nice cannon. well done on getting it to work. Are you going to paint it?
really good quote/phrase here
Top
User avatar
super spuder
Corporal
Corporal
Posts: 558
Joined: Fri Apr 06, 2007 9:05 pm
Location: Ontario Canada

i was looking at that picture... and i don't see a pilot valve :? aside from my blindness... nice gun, you used tape to seal your valve to hu :lol: nice gun
trying to decide on a new project, probably something small.
Top
User avatar
rednecktatertosser
Corporal
Corporal
Posts: 590
Joined: Tue May 22, 2007 7:52 pm

@super spudder- No the pilot valve is a 1/4" ball valve and the fill/pilot assembly is not attached in the picture. and the tape was just to make it 'airtight' and i used shower liner to seal it. sorry to dissapoint.

@ spud yeti- Thanks, and yes i will eventually paint it(whenever I can get my dad to get me some spraypaint)

@ modder- Thanks isnt it just the most original cannon youve ever seen?!?!?? :lol:

@ Hailfire- No I have never built a combustion, pneumatics all the way, thusfar.
