First Pnuematic.....

Cannons powered by pneumatic pressure (compressed gas) using a valve or other release.
Post Reply
Minus
Private
Private
Posts: 11
Joined: Sun Aug 13, 2006 5:41 pm

Cannon Name-Minus's Sniper
Type of Cannon- Pnuematic
Chamber Size- 15" x 1-1/2" pvc (26.5CI)
Barrel Size- 30" x 3/4" cpvc (13.25CI)
Gas Source- 150 psi air compressor
Valve- Pnuematically actuated 1" sprinkler valve
Ammunition- Paintballs and Marbles
Other Details- Took design cues from the Barrett M107. Decorative muzzle break and barrel shroud, Breech loading, Pistol trigger, Flat black paint job. This was my first gun, and definitely won't be the last. The best part is having your boss ask when it's going to be finished so he can shoot it!! Oh, and marbles blowing up spray paint cans is so much fun!!!
Attachments
View of the barrel shroud and bracing.
View of the barrel shroud and bracing.
The sprinkler valve, and air pressure gauge (don't want the chamber blowing up in my face...)
The sprinkler valve, and air pressure gauge (don't want the chamber blowing up in my face...)

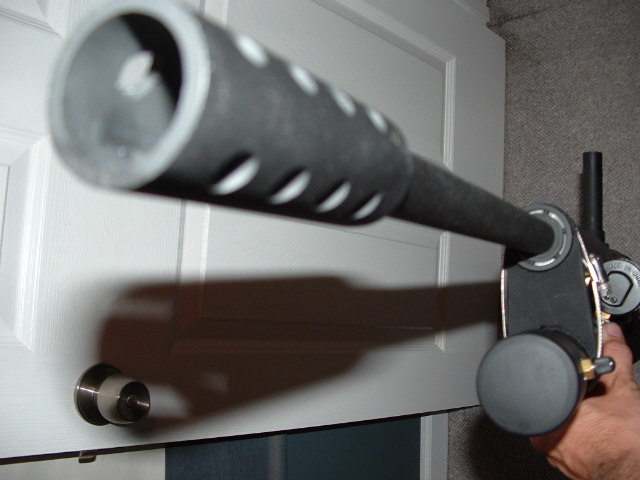

The business end with the muzzle break.
The business end with the muzzle break.
Padded stock, Spyder One trigger mechanism, and breech load
Padded stock, Spyder One trigger mechanism, and breech load
The whole thing. Stands in at 53" tall.
The whole thing. Stands in at 53" tall.
Top
Dom
Specialist 2
Specialist 2
Posts: 203
Joined: Sun Aug 06, 2006 4:54 pm

:shock: Thats one meanie
Top
User avatar
LucyInTheSky
Specialist 2
Specialist 2
Posts: 293
Joined: Fri Apr 21, 2006 11:46 am

I envy you.

Also haow did you get that handle?

What is that stick on the top? breech loaded?
Top
User avatar
saladtossser
Sergeant 3
Sergeant 3
Posts: 1234
Joined: Sat Mar 26, 2005 10:40 am
Location: Toronto
Contact:
Contact saladtossser

niiiiice! how did u use a paintball gun handle for this?
"whoa... I thought pimpmann was black..."-pyromanic13
Top
User avatar
spudkpi
Specialist
Specialist
Posts: 135
Joined: Tue Aug 01, 2006 8:52 pm

That is a very nice looking gun and I like the paintjob a lot. You should consider getting a regulated CO2 on there for fasting firing. Looks good. :D
Top
PVC Arsenal 17
Staff Sergeant 3
Staff Sergeant 3
Posts: 1762
Joined: Mon Mar 27, 2006 4:18 pm
Location: United States

b-e-a-utiful gun
Top
User avatar
mark.f
Sergeant Major 4
Sergeant Major 4
Eritrea
Posts: 3643
Joined: Sat May 06, 2006 11:18 am
Location: The Big Steezy
Has thanked: 58 times
Been thanked: 62 times
Contact:
Contact mark.f

Nice stock! The handle definitely finishes it off.
Top
Minus
Private
Private
Posts: 11
Joined: Sun Aug 13, 2006 5:41 pm

wow...thanks for all the comments. The handle is from an old Spyder One pb gun I had from years ago. The "stick" on top is the breech loader. Think I'm gonna shorten it a little though...make it less obtrusive. The trigger actually pushes open the blow gun that actuates the sprinkler valve. The blow gun is actually inside the stock right above the trigger. Shortly after the trigger, there is an "exhaust hose" coming out of the stock for the blow gun to vent.
Top
User avatar
Shrimphead
Corporal
Corporal
Posts: 509
Joined: Thu Nov 17, 2005 7:42 pm

I love it! That thing is big and beautiful. Great first gun.
Controlled insanity = Genius
Life flies when you're being dumb.
Top
User avatar
ProfessorAmadeus
Sergeant
Sergeant
Posts: 1046
Joined: Fri Apr 28, 2006 5:39 pm
Location: texas

A Damn nice gun indeed. The sad thing is your first one kicks all my guns butts in looks. I think thats one of the nicest cannons on the forums lately.
Insomniac wrote:Hey why am I a goose???? Why not somthing a little more awe inspireing, like an eagle or something? LOL
SOO CUTE!! OMG!! I COULD JUST LICK YOU!!
Top
Minus
Private
Private
Posts: 11
Joined: Sun Aug 13, 2006 5:41 pm

I'll also mention that all the pvc logos/writing was sanded down so the whole gun is smooth. Plus, before it was painted, there were no cement stains!!!
Top
Benny
Corporal 4
Corporal 4
Posts: 844
Joined: Wed Apr 19, 2006 8:21 pm
Location: Tasmania, Australia.

Are you entering it? because you should, that is the best first cannon i have ever seen, You should add a scope or a laser. :D
Join the spudshot forum!!!!!

F*ck the bunny... i got a fishy ><>
Top
User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Been thanked: 3 times

what he said, that is one nice cannon best one ive seen around here lately, like what youve done with it i cant wait to see your next cannon 8)
Top
Minus
Private
Private
Posts: 11
Joined: Sun Aug 13, 2006 5:41 pm

Yeah, I want to enter it, but not sure how exactly. I've read the contest info. Any help??? Oh, and the next will probably be a tennis ball, golf ball, or bouncy ball launcher. Might even make my own piston valve instead of a sprinkler valve.
Top
User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Been thanked: 3 times

PM pimpmann he'll tell you how to enter,im building a GB with a piston instead of sprinkler theyre cheaper to build then buy
