fire extinguisher
i have a steel fire extinguisher that has written on it that is has been tested to 2.5mpa (362psi), would it be safe to take it to that or similar pressure on a regular basis? how much would be a safe pressure to use it at? i had a look inside and it only has surface rust and very little at that so its still in pretty good condition
why make it if it dosent shoot?
the safe pressure to take it to on a regular basis is 362 psi, but only if you prevent the inside from rusting by painting it or something. You also need to be careful about converting the treads to something usable. Epoxy may or may not hold, but I would be wary of drilling, tapping, or brazing the fire extinguisher.
May I ask what "type" of fire extingusher this is (dry foam, etc), and where you found it?
May I ask what "type" of fire extingusher this is (dry foam, etc), and where you found it?
POLAND_SPUD wrote:even if there was no link I'd know it's a bot because of female name
i was thinking of epoxying the inside, and its a powder type that i found at an old motel that is destined for destruction, and yes i will only use it if i am satisfied that i can connect it properly, not sure if i will be able to or not
why make it if it dosent shoot?
If you don't need fast flow, you might be able tap new threads somewhere in the original valve. I'd consider that safe, as long as you have safe wall thickness.
POLAND_SPUD wrote:even if there was no link I'd know it's a bot because of female name
I think you have a little bit of a problem with your metric prefixes... I don't pretend to be able to convert Pa to psi in my head, but I'm pretty sure 2.5mPa isn't 362psi, but 2.5MPa is.
You could try finding the wall thickness with a caliper, and calculating a pressure rating for a common steel alloy of that thickness, then pressure-testing it to that. It's likely that the fire extinguisher is tested to a pressure that still has a significant safety factor, it may not be too unsafe to push it a little farther, but I'd just be concerned about rusting.
You could try finding the wall thickness with a caliper, and calculating a pressure rating for a common steel alloy of that thickness, then pressure-testing it to that. It's likely that the fire extinguisher is tested to a pressure that still has a significant safety factor, it may not be too unsafe to push it a little farther, but I'd just be concerned about rusting.

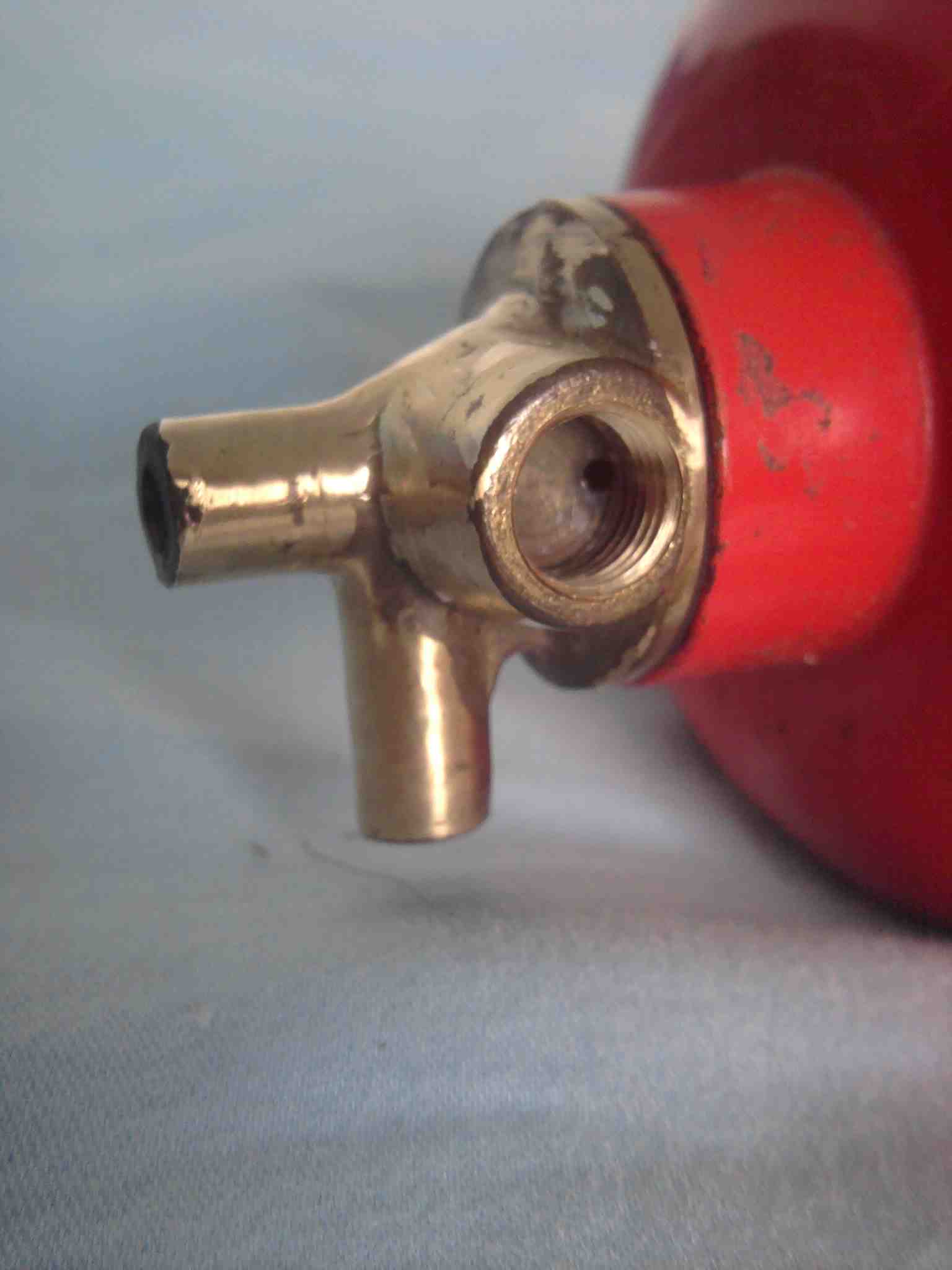

ah ok yea i didn't know the capitals mattered, but yes is it MPa not mPa, as for sittings i have cut down the old valve a bit and there is a thread where the pressure gauge was and it fits the nosily from a blow gun so maybe i could use that to attach a hose to like you do with a fridge compressor. flow isnt much of a concern to me because i am only thinking of making a semi in ether 5 or 8mm, anyways here are some pics
- Attachments
-
-
-
why make it if it dosent shoot?
-
warhead052
- Staff Sergeant 3
- Posts: 1769
- Joined: Mon Mar 21, 2011 5:41 pm
Wow, your lucky to have found a FE with pre made threads like that. I would be lucky to find one with a metal valve, even though I have one I would like some more....
If I recall correctly, M stands for Mega, which is 10<sup>6</sup>, as opposed to m which stands for mili, or 10<sup>-3</sup>. DYI's old sig before I made it in was a quote from somebody who also confused the two. Something about only needing a 3-5MW laser to do star pointing. I'm not even sure if a 5MW laser exists. :p
If you can attach something to those fittings, that would be amazing.
If you can attach something to those fittings, that would be amazing.
-
Gippeto
- First Sergeant 3
- Posts: 2503
- Joined: Sat Jan 19, 2008 10:14 am
- Location: Soon to be socialist shit hole.
- Has thanked: 2 times
- Been thanked: 17 times
2.5MPa is the listed as the "periodic test pressure"... this is a proof pressure, not a working pressure.
The label also states the working pressure to be 1036KPa @ 23C +/- 2C.
Where's the confusion?
The label also states the working pressure to be 1036KPa @ 23C +/- 2C.
Where's the confusion?
"It could be that the purpose of your life is to serve as a warning to others" – unknown
Liberalism is a mental disorder, reality is it's cure.
Liberalism is a mental disorder, reality is it's cure.
that is all clear, the main question was if it would be safe to take it to the periodic test pressure regularly, or would i have to keep it to the working pressure?Gippeto wrote:2.5MPa is the listed as the "periodic test pressure"... this is a proof pressure, not a working pressure.
The label also states the working pressure to be 1036KPa @ 23C +/- 2C.
Where's the confusion?
why make it if it dosent shoot?
I didn't realize that was proof pressure. I would recommend against measuring the wall thickness and calculating the failure pressure, then testing to that because the walls at the neck are generally much thicker than further down the bottle.
as to the 5MW laser, they are actually quite common. You can actually make one quite easily.
as to the 5MW laser, they are actually quite common. You can actually make one quite easily.
POLAND_SPUD wrote:even if there was no link I'd know it's a bot because of female name
Whoa that's a lot of laser information I wish I had a while ago. Still mulling over the article and trying to wrap my brain equipped with only pre-university science knowledge around it.
It would be amazing if you could use the connections already on the extinguisher.
It would be amazing if you could use the connections already on the extinguisher.
