District 9 Gas Projector (video added)

Boom! The classic potato gun harnesses the combustion of flammable vapor.
Post Reply
marcin411
Private
Private
Posts: 15
Joined: Sun Sep 12, 2010 6:57 pm

Latest triumph of PVC and sleepless nights. Somewhat replica of the District 9 gas projector gun.
Basics are:
1" barrel
2" x 9" chamber
tazer ignition
internal vent fan
metered propane
muzzle loader
All custom PVC parts

[
Attachments
DSCF0052 (700x525).jpg
DSCF0018 (700x525).jpg
DSCF0028 (700x525).jpg
some guts
some guts

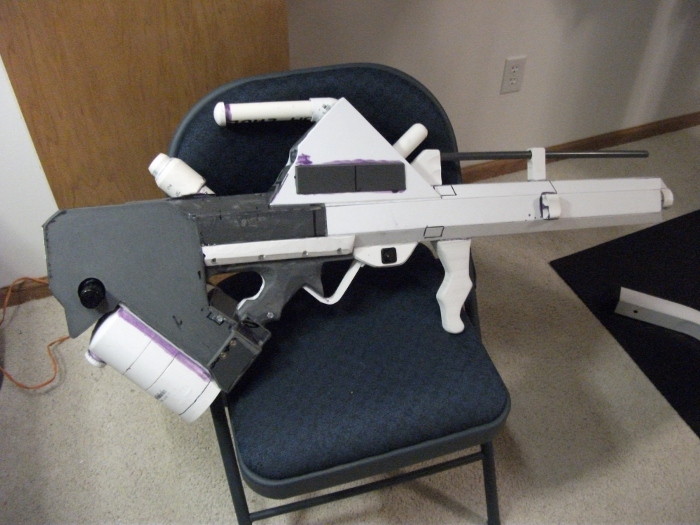

before the paint
before the paint
rear view
rear view
Left side view
Left side view
Last edited by marcin411 on Tue Jan 10, 2012 9:35 pm, edited 1 time in total.
Top
User avatar
mark.f
Sergeant Major 4
Sergeant Major 4
Eritrea
Posts: 3643
Joined: Sat May 06, 2006 11:18 am
Location: The Big Steezy
Has thanked: 58 times
Been thanked: 62 times
Contact:
Contact mark.f

Wow! Where to start?

Amazing job picking a theme and sticking to it, amazing attention to detail, and amazing follow-through.

Didn't really get a chance to comment on your past submissions, so wonderful job overall!
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 581 times
Been thanked: 347 times

Very impressive, kudos!

You've captured the look while integrating a metering system, brilliant. All we need now is to see it in action :D
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
JDP12
Staff Sergeant 5
Staff Sergeant 5
Posts: 1943
Joined: Fri Mar 30, 2007 8:34 pm

wow!!! I'm a huge fan of the District 9 guns.. and that is an awesome version congrats!
"Some say his pet elephant is pink, and that he has no understanding of "PG rated forum". All we know is, he's called JSR. "
Top
marcin411
Private
Private
Posts: 15
Joined: Sun Sep 12, 2010 6:57 pm

Thanks guys, I'll do a little video demo hopefully in the next week or so.
Top
marcin411
Private
Private
Posts: 15
Joined: Sun Sep 12, 2010 6:57 pm

Test fire video added, enjoy.

Top
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

Wow... :shock:

That is unbelievable. You must have spent so much time on the custom PVC. I did the same with my M16 (link in sig) so I know what it's like!

Smooth operation... I'm impressed. Nice work.

Shouldamadeitpneumatic :D
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
Top
evanmcorleytv
Specialist 3
Specialist 3
Posts: 350
Joined: Sat Jun 19, 2010 3:44 pm
Location: Tuscaloosa, AL

Looks GREAT!! I was a little frightened by the delay in the video though!!
Top
marcin411
Private
Private
Posts: 15
Joined: Sun Sep 12, 2010 6:57 pm

The PVC fabrication took the majority of time. With a few hours of work a week it took about 8 months to finish. Nice work on the airsoft M16.

I'm puzzled by the delay in fire as well, It happens every once in a while. I'm definetly getting spark each time but it took three sparks to ignite in the video. Any ideas?
Top
User avatar
Crna Legija
First Sergeant 2
First Sergeant 2
Posts: 2333
Joined: Sun Jul 20, 2008 5:14 am
Location: australia

marcin411 wrote: I'm puzzled by the delay in fire as well, It happens every once in a while. I'm definetly getting spark each time but it took three sparks to ignite in the video. Any ideas?
probably fuel wasn't mixed well or you might have let it sit and the fuel collects at the bottom of the chamber
'' To alcohol... The cause of, and solution to, all of life's problems.”
--Homer Simpson

Add me on ps3: wannafuk, 8/11/11 cant wait
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 581 times
Been thanked: 347 times

I love the way you patted it lovingly when it actually did fire :D

Could your meter calculations have been off?
Crna Legija wrote:probably fuel wasn't mixed well or you might have let it sit and the fuel collects at the bottom of the chamber
If you let it sit, it's even better ;) the gas diffuses and forms a more homogenous mixture.
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
cowscankill
Private 4
Private 4
United States of America
Posts: 73
Joined: Sun Apr 10, 2011 8:09 am

I usually see two pressure gauges on metered propane combustion cannons. Not sure where yours is connected exactly. Anyone wanna tell me how I can get by with one so I can save on costs?
Top
User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Been thanked: 3 times

You only need one gauge in the meter and that's it. Don't see the point in having two gauges unless one is on a regulator.
Top
marcin411
Private
Private
Posts: 15
Joined: Sun Sep 12, 2010 6:57 pm

As MrCrawley noted one gauge is enough, I use one on the outlet of the regulator. This gives me a pressure reading and a fixed metered gas volume for setting the proper mix.
Top
marcin411
Private
Private
Posts: 15
Joined: Sun Sep 12, 2010 6:57 pm

As an update I was getting a gas leak with the pvc meter pipe and have since switched to steel pipe and brass valves for the metering pipe. Live and learn.
