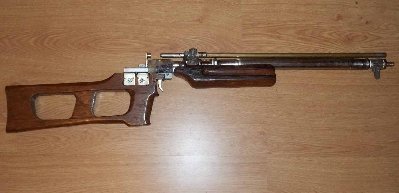

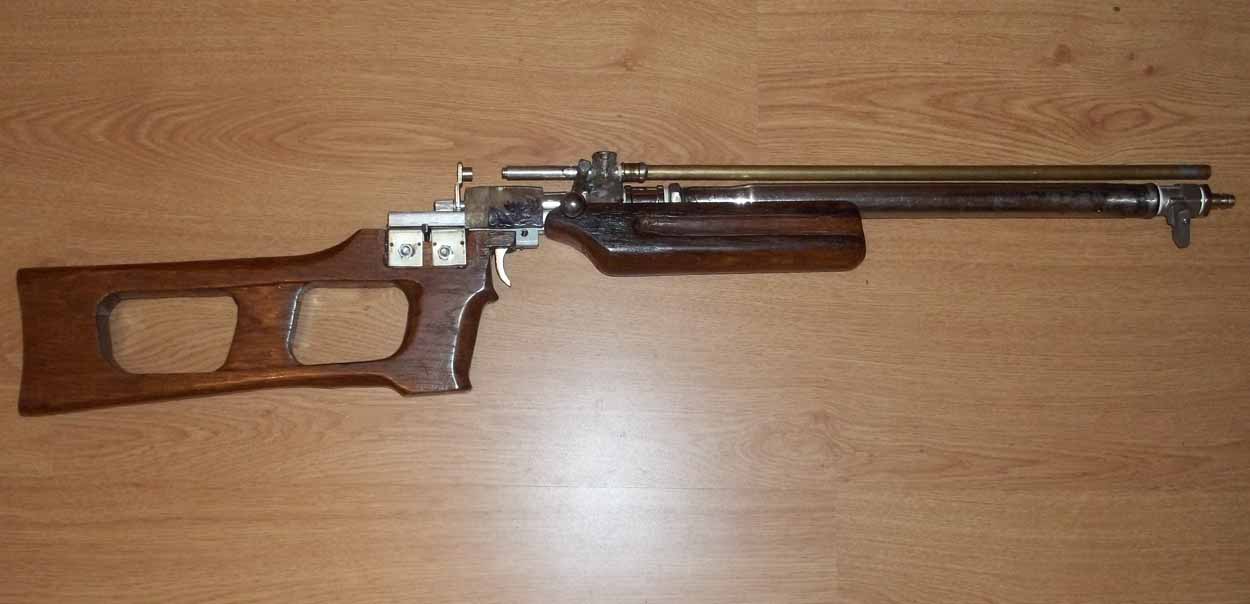

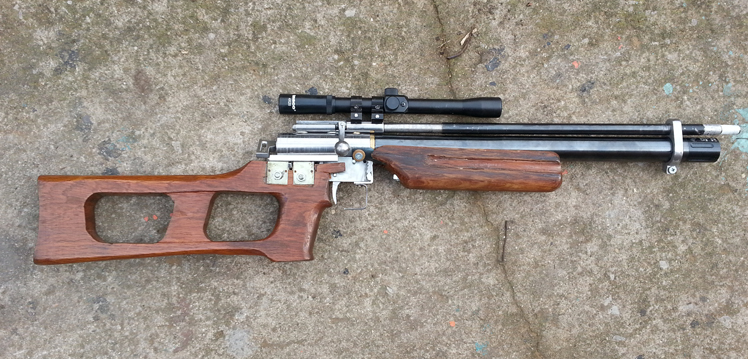

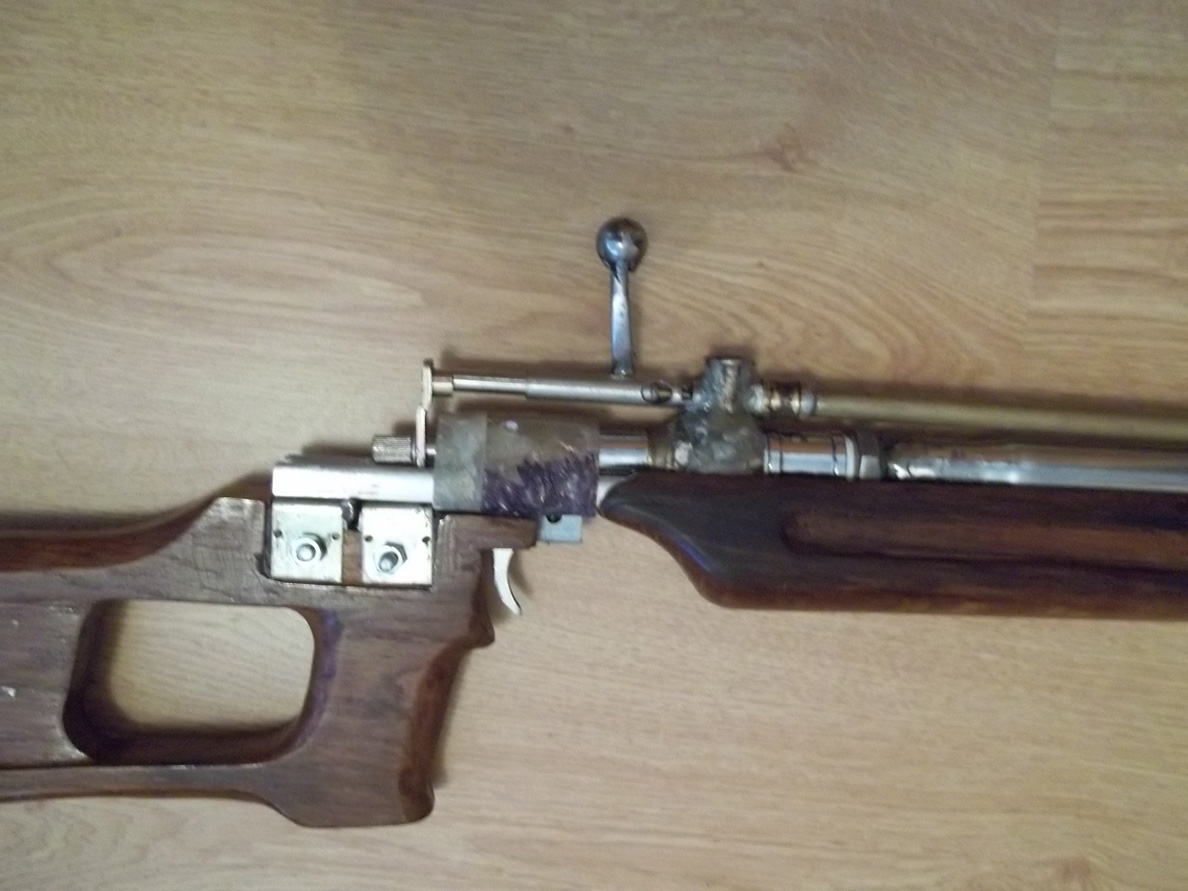

This time it is multi-shot and it is breech-loading. The wood, the barrel and the air tank are the same, as you can see. The tank is slightly changed ( the ugly welding at the end is gone
). The stock is still detachable. The hammer valve is very simple, but it works. I tried to make the BTB counterbalanced design, but I failed miserably. If I find some suitable parts I will try again

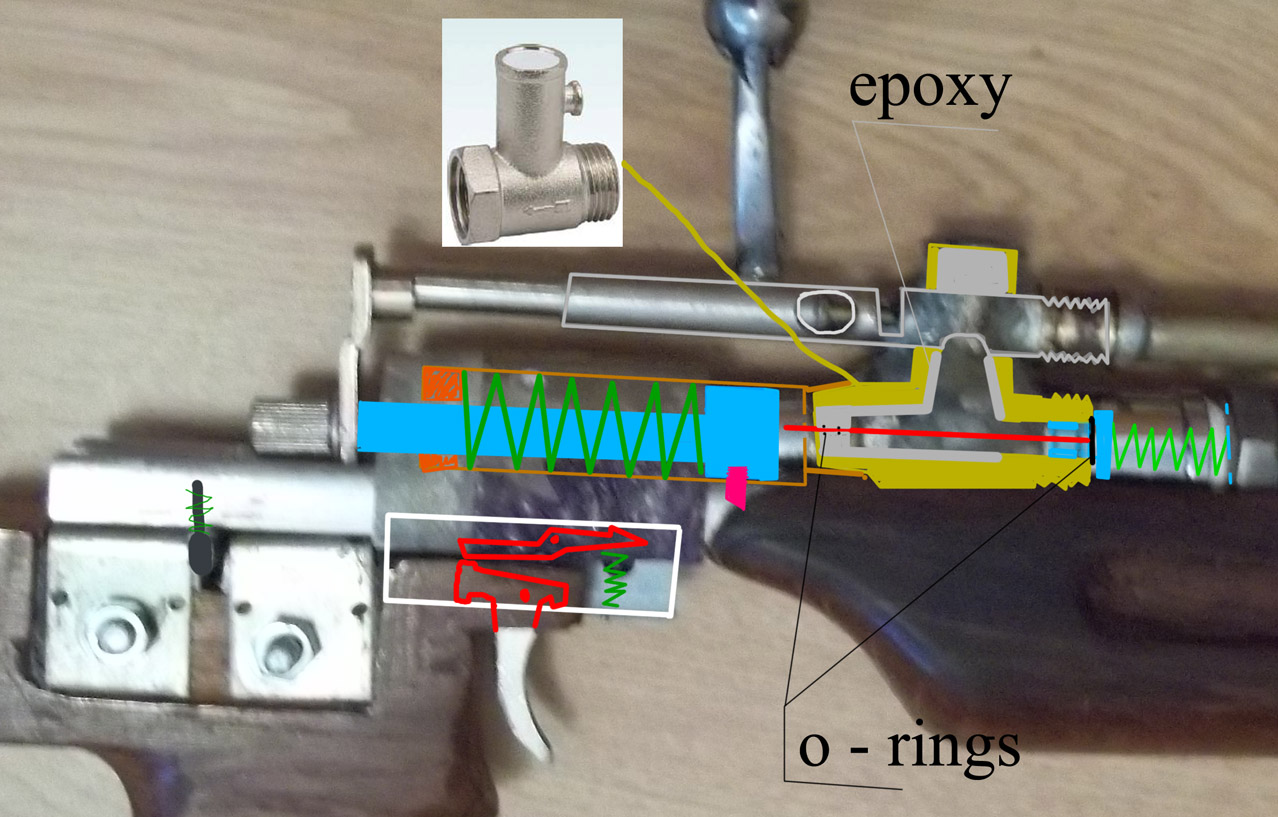

. During the building of the gun I discovered the magical world of the polyester raisin and fiberglass and I used them to fixate the rail and the safety valve together and to cast holders for the hammer tube. I hope in next projects i'll find some more applications for it. Compared to the first version this one is less powerful, but the trigger pull is much better. Now i need a manometer and a fridge compressor. If I manage to achieve decent power i might buy a cheap 6.35 barrel, it will spare me lots of lead casting and will improve accuracy ( now my barrel is slightly bent ). I found spare turkish barrels for 20 euros. Sorry for the retarded diagram on the last picture, but that was the only way to show you the inner parts , because I borrowed a camera from a friend and i had no time to disassemble the gun.
I'll be happy to hear your thoughts and ideas for improvement.
And again - sorry for my broken english.
